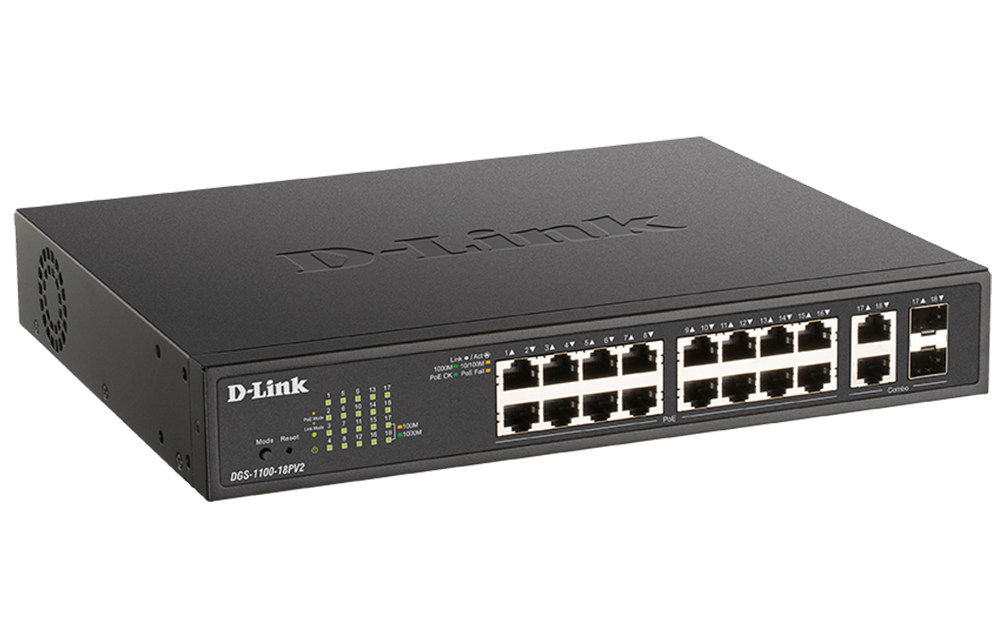

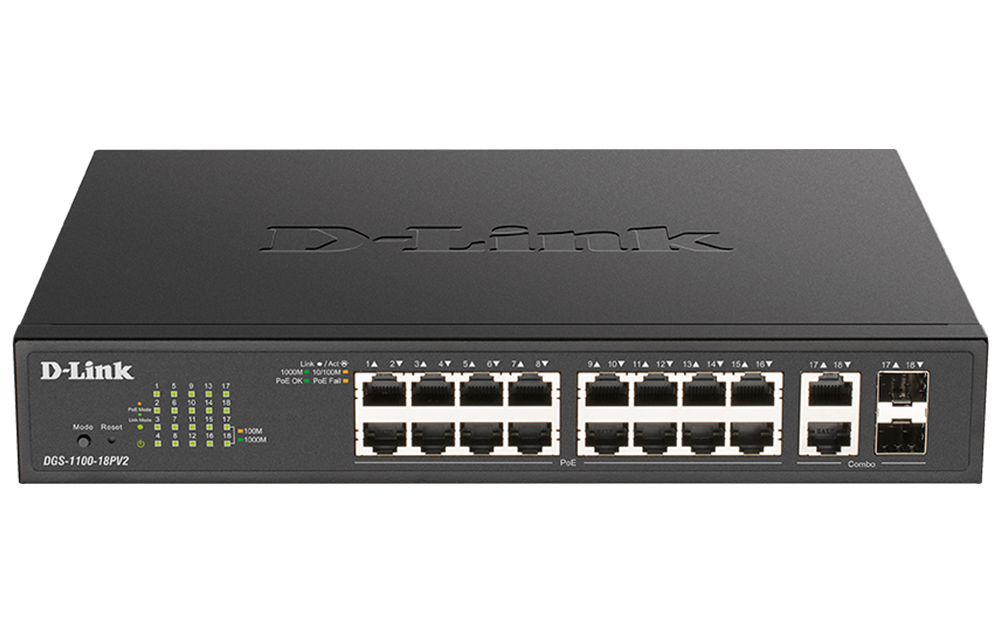

DGS-1100-18PV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model DGS-1100-18PV2EAN 790069453366
49 specifications
- Noise45.8 dB
- Type1U
- Weight2.1 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Noise
- 45.8 dB
- Type
- 1U
- Weight
- 2.1 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1100-18PV2
- Part number
- DGS-1100-18PV2
- EAN / UPC
- 790069453366
- Also known as
- D-Link DGS-1100-18PV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
49 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 26.78 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Electromagnetic compatibility | FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI |
Performance
| Specification | Value |
|---|---|
| Noise level | 45.8 dB |
| Mean time between failures (MTBF) | 343695 h |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 130 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 125.2 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | cUL, UL, LVD, CB, BSMI |
