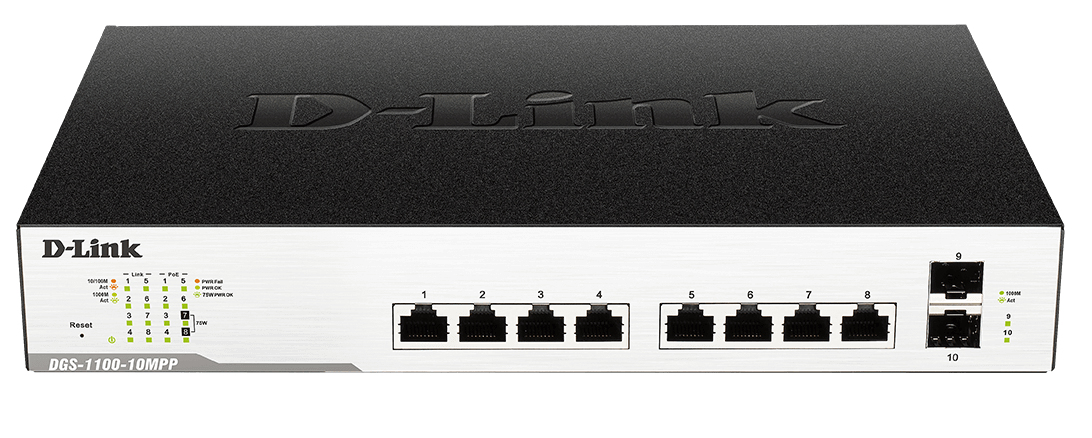

1000) Power over Ethernet (PoE) 1U Black

Model DGS-1100-10MPEAN 790069420115

69 specifications

Type1U
Weight1.83 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity8
10G supportNo

See all specifications

Overview

Type: 1U
Weight: 1.83 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 8
10G support: No

Brand: D-Link
Category: Network Switch
Model: DGS-1100-10MP
Part number: DGS-1100-10MP
EAN / UPC: 790069420115, 5054629994627
Also known as: D-Link DGS-1100-10MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Specifications

69 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
10G support	No
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Virtual LAN features	VLAN Identifier ( VLAN ID), Voice VLAN, Port-based VLAN
Number of VLANs	4094

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	20 Gbit/s
Throughput	14.88 Mpps
Store-and-forward	Yes
Jumbo frames	9216
Packet buffer memory	1.5 MB

Security

Specification	Value
IGMP snooping	Yes
SSH/SSL support	Yes

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black
Reset button	Yes
LED indicators	Yes
Number of fans	1 fan(s)
Safety	cUL, UL, GS, CB

Performance

Specification	Value
Flash memory	16 MB
Mean time between failures (MTBF)	291575 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	141.4 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	130 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	57051 BTU/h

Weight & dimensions

Specification	Value
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	1.83 kg

Packaging data

Specification	Value
Package width	250 mm
Package depth	361 mm
Package height	92 mm
Package weight	2.3 kg

Technical details

Specification	Value
Master (outer) cases per pallet (air)	24 pc(s)
Master (outer) cases per pallet (sea)	42 pc(s)
Pallet gross length	110 cm
Pallet gross weight (air)	327.5 kg
Pallet gross weight (sea)	559.6 kg
Pallet gross width	120 cm
Pallet height (air)	123.9 cm
Pallet height (sea)	2.07 m
Products per pallet (air)	120 pc(s)
Products per pallet (sea)	210 pc(s)
Products per shipping (inner) case	5 pc(s)
Shipping (inner) case gross weight	12.9 kg
Shipping (inner) case height	27.6 cm
Shipping (inner) case length	49.1 cm
Shipping (inner) case net weight	12.5 kg
Shipping (inner) case width	37.7 cm

Certificates

Specification	Value
Certification	FCC/IC, CE, VCCI, RCM, BSMI

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
