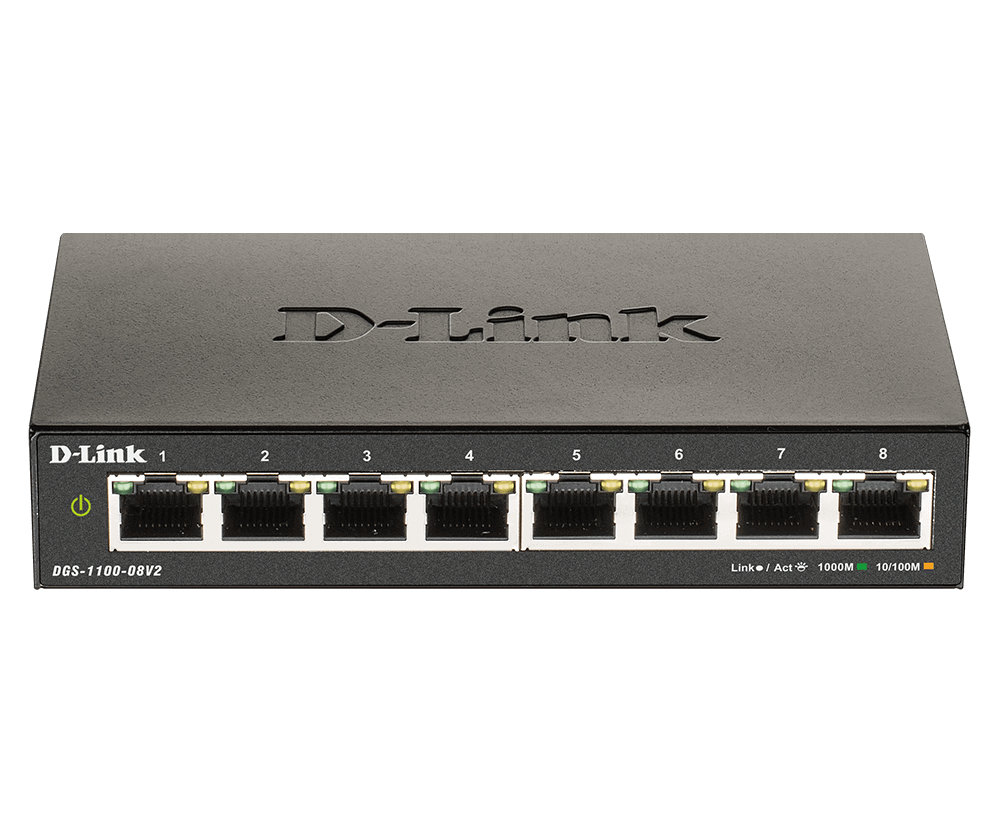

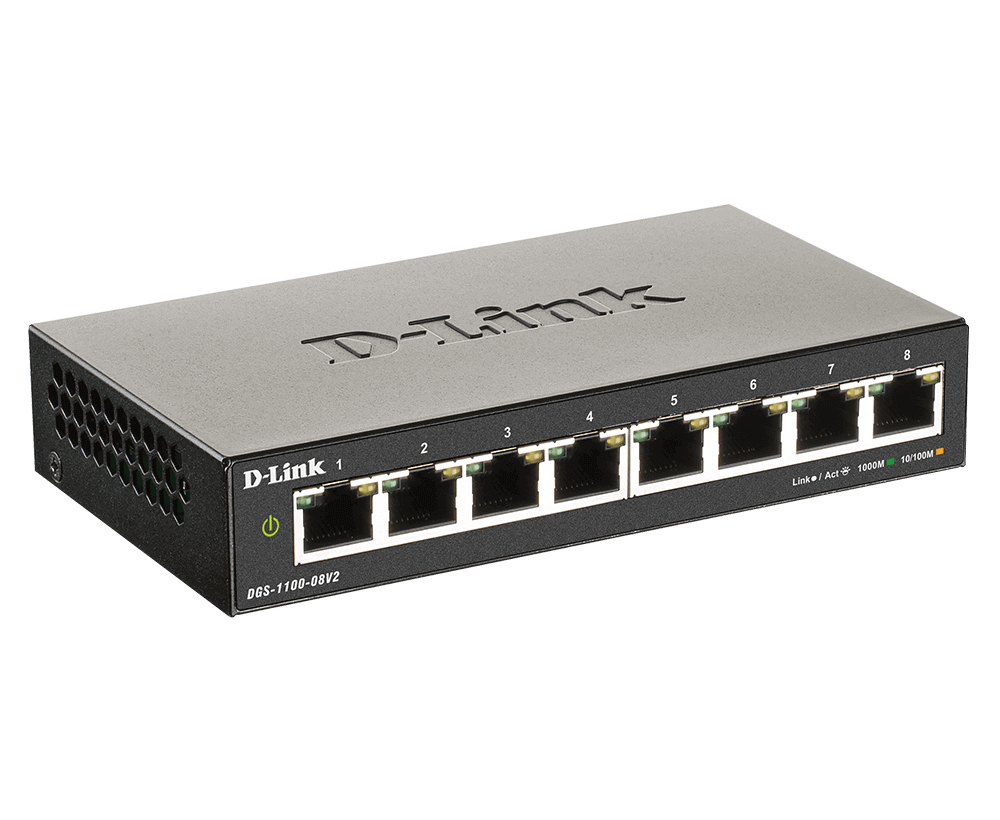

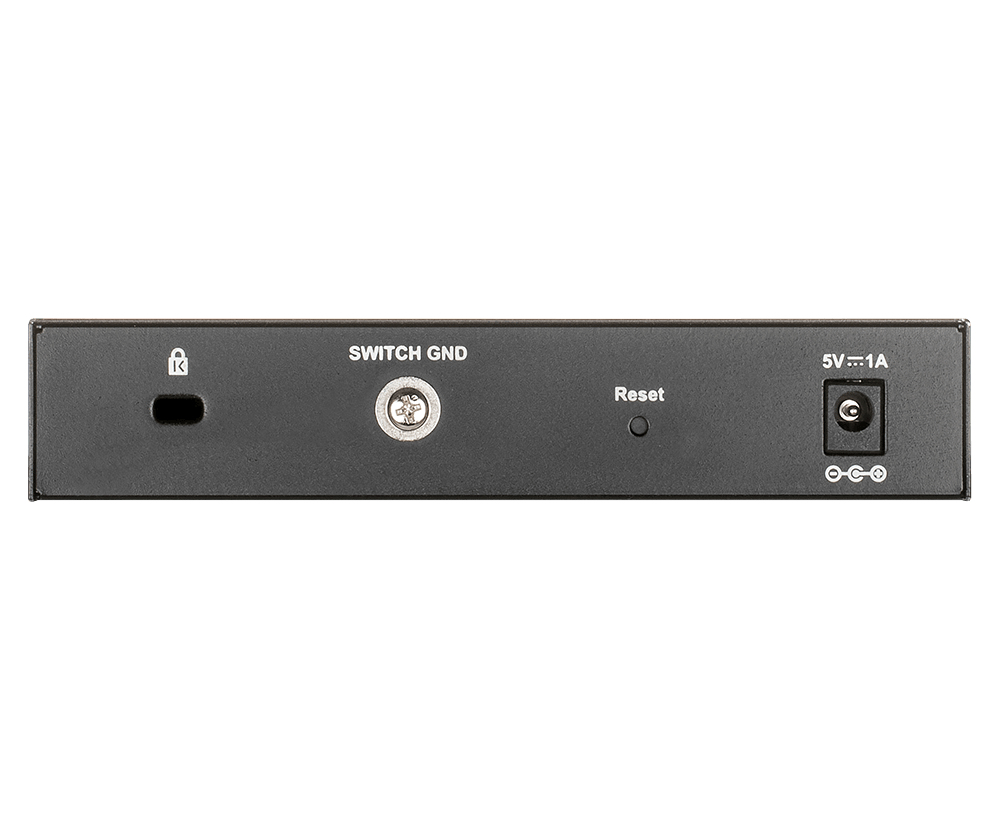

Gigabit Smart Managed Switches DGS-1100 Series
Model DGS-1100-08V2Part no. DGS-1100-08V2/BEAN 790069453304
59 specifications
- Noise0 dB
- Weight340 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Noise
- 0 dB
- Weight
- 340 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1100-08V2
- Part numbers
- DGS-1100-08V2/B, DGS-1100-08V2/E
- EAN / UPC
- 790069453304, 790069453410, 7900694534108
- Also known as
- D-Link Gigabit Smart Managed Switches DGS-1100 Series
Specifications
59 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| IGMP entries | 128 |
| IGMP snooping | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| Static port security | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Reset button | Yes |
| Number of fans | 0 fan(s) |
Performance
| Specification | Value |
|---|---|
| Noise level | 0 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 1456992 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 4.94 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 16.85 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 82 mm |
| Height | 28 mm |
| Weight | 340 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI, cUL |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
