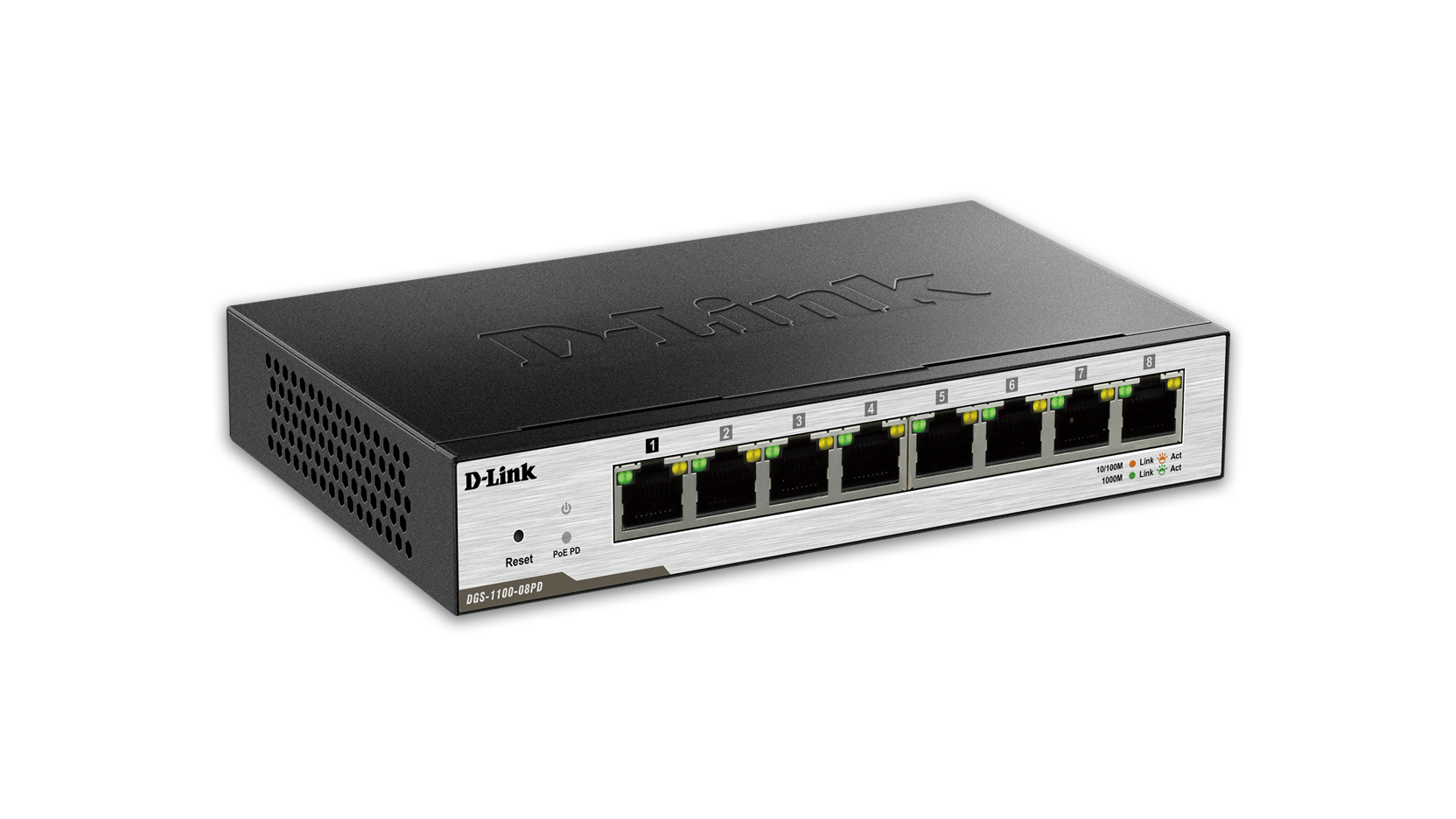

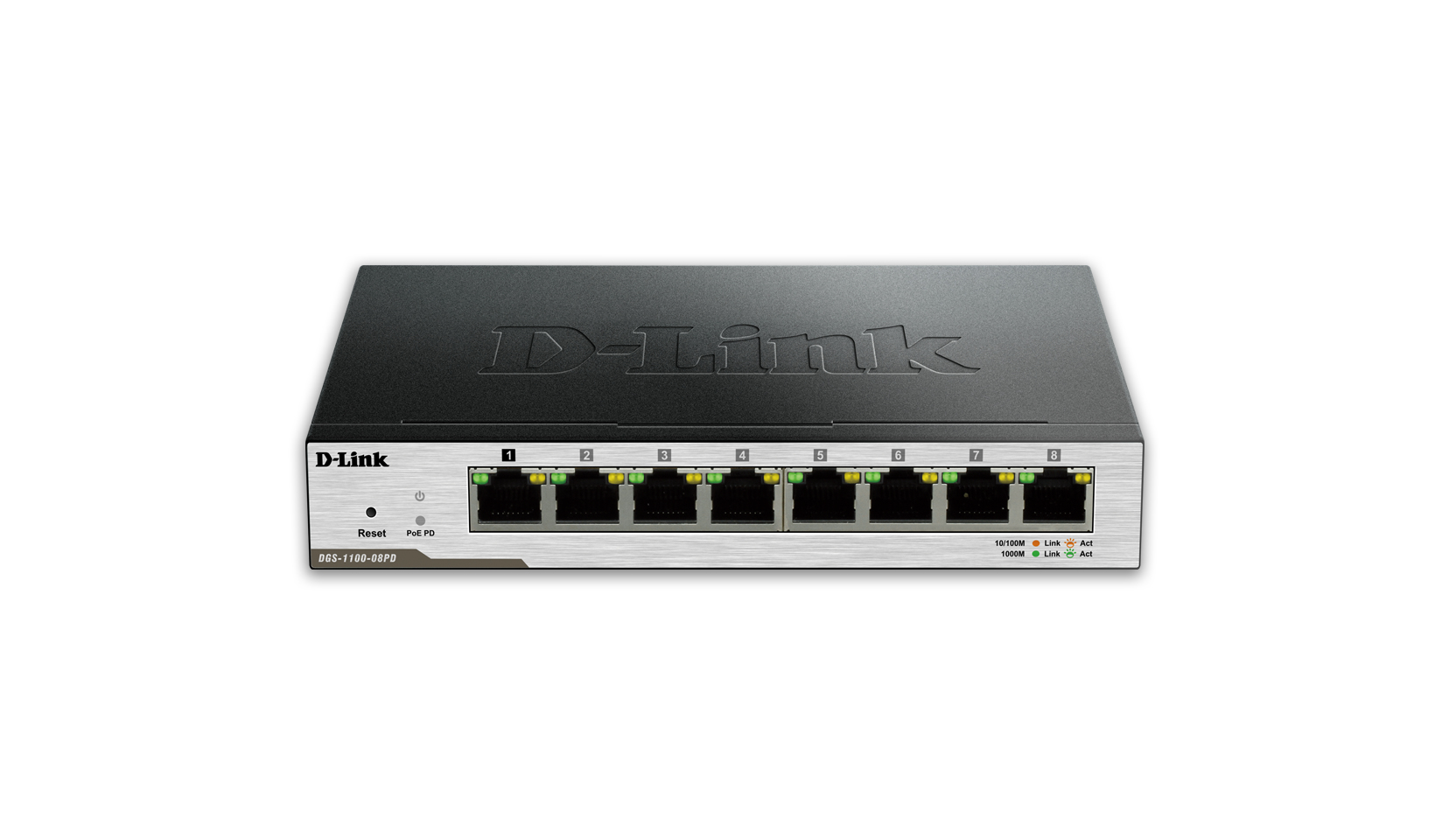

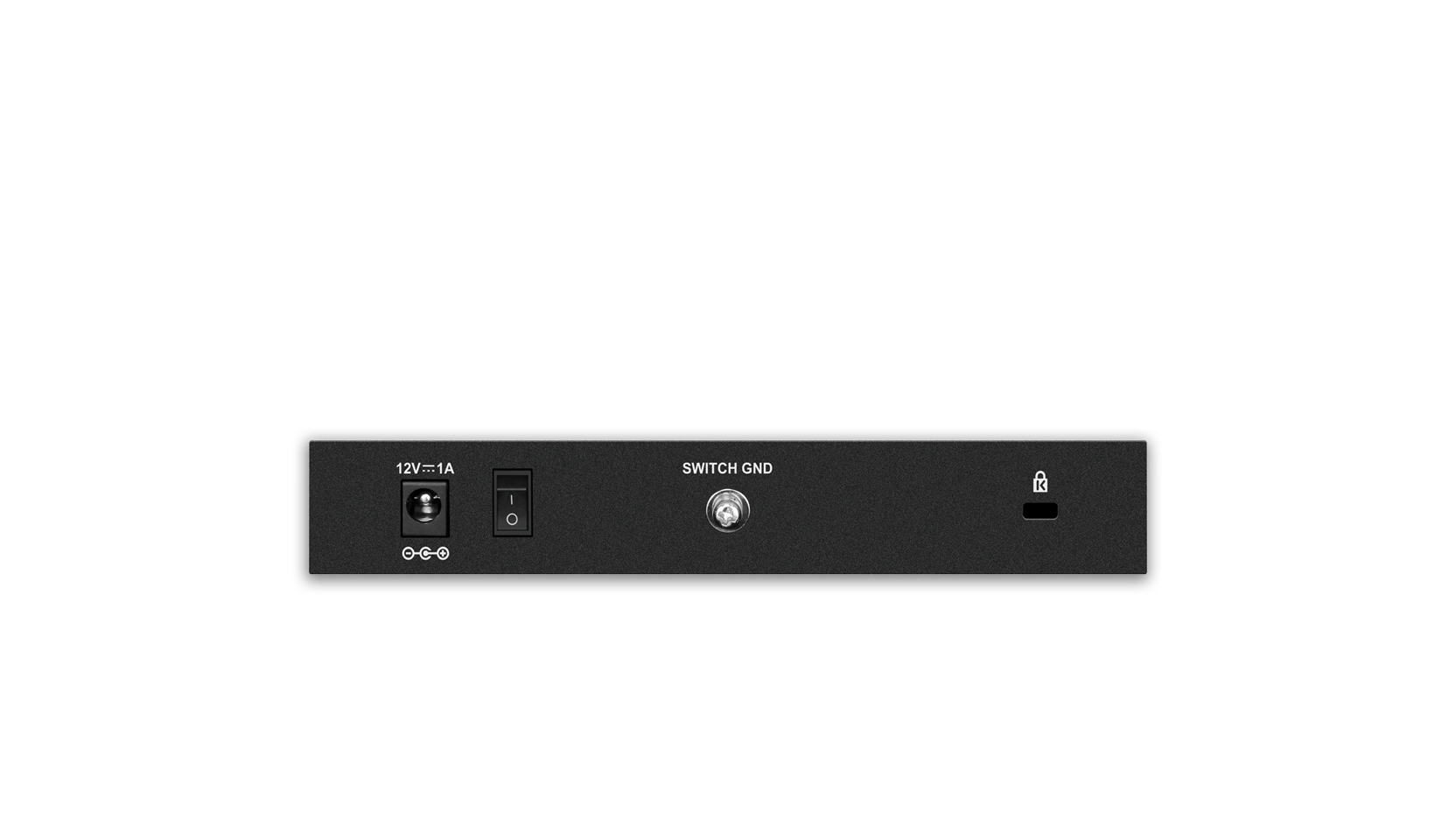

D-Link DGS-1100-08PD network switch Managed L2 Gigabit Ethernet (10/100/1000) Black, Grey
Model DGS-1100-08PDEAN 790069432415
46 specifications
- Weight450 g
- ColourBlack, Grey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Port mirroringYes
- MAC address table8000 entries
Overview
- Weight
- 450 g
- Colour
- Black, Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Port mirroring
- Yes
- MAC address table
- 8000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1100-08PD
- Part number
- DGS-1100-08PD
- EAN / UPC
- 790069432415
- Also known as
- D-Link DGS-1100-08PD network switch Managed L2 Gigabit Ethernet (10/100/1000) Black, Grey
Specifications
46 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| Port mirroring | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN, Tagged VLAN, Port-based VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Deficit Round Robin (DRR), Weighted Round Robin (WRR) |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Number of fans | 0 fan(s) |
| Safety | cUL, CE LVD, CB, BSMI, CCC |
Performance
| Specification | Value |
|---|---|
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 648153 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 4.72 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Heat dissipation | 52 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 171 mm |
| Depth | 98 mm |
| Height | 27.5 mm |
| Weight | 450 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC B, CE B, VCCI B, BSMI, CCC |
