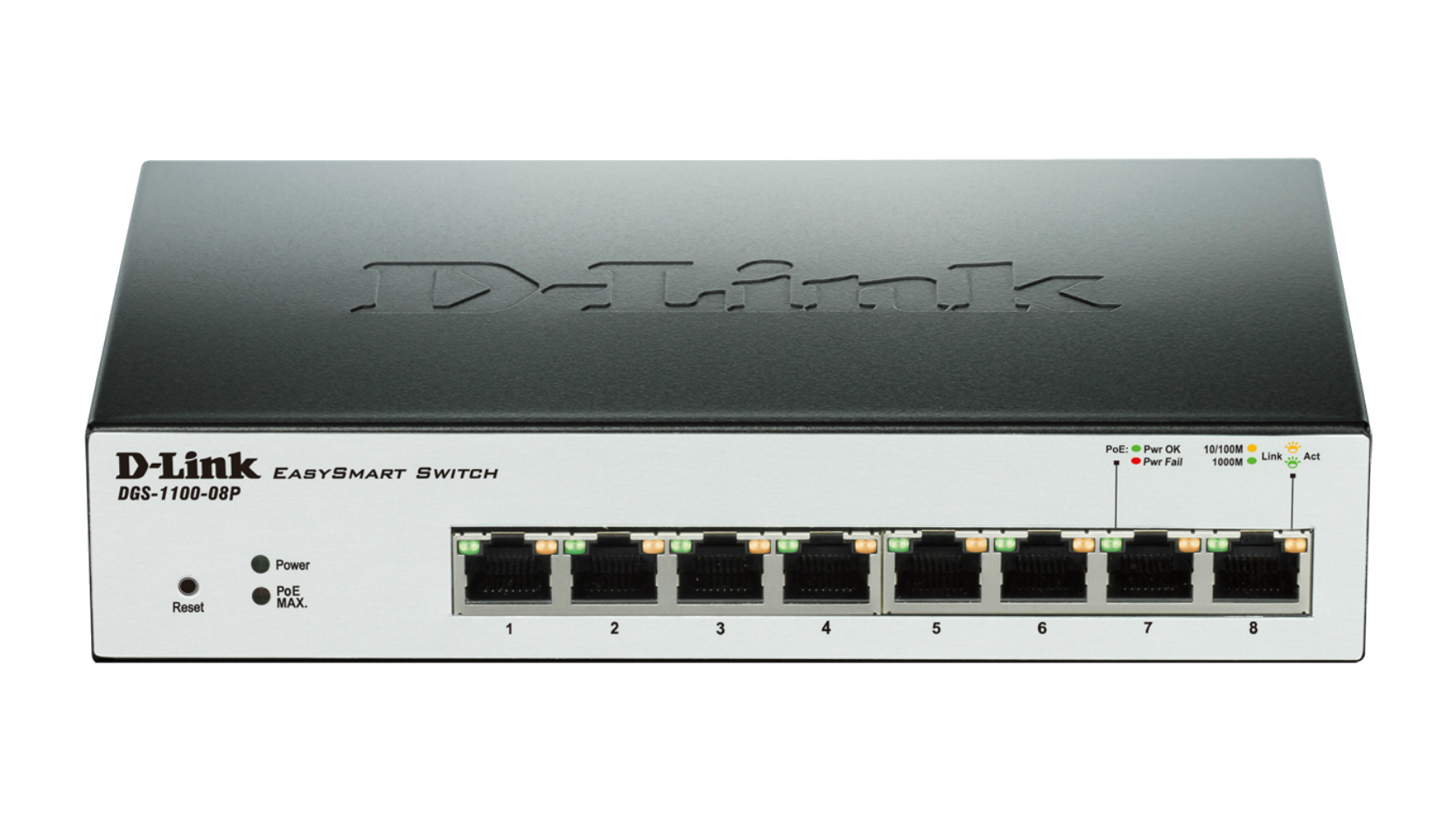

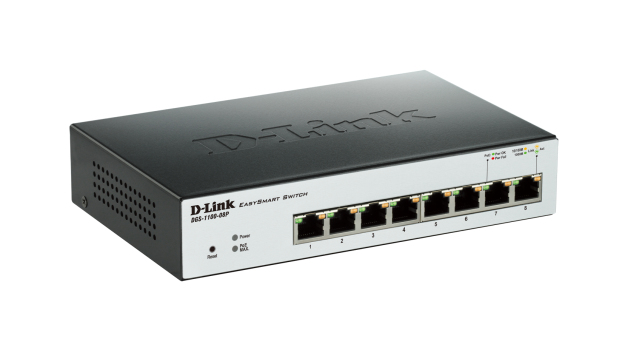

D-Link DGS-1100-08P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

D-Link DGS-1100-08P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Model DGS-1100-08PEAN 958262209191

55 specifications
  • Weight710 g
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • VLAN supportYes
  • MAC address table8000 entries
See all specifications

Overview

Weight
710 g
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
VLAN support
Yes
MAC address table
8000 entries
Brand
D-Link
Model
DGS-1100-08P
Part number
DGS-1100-08P
EAN / UPC
958262209191, 102931028129, 112840350327, 132017972541 +15 more
Also known as
D-Link DGS-1100-08P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

55 specifications in 15 groups

Management features

Switch typeManaged
Switch layerL2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0

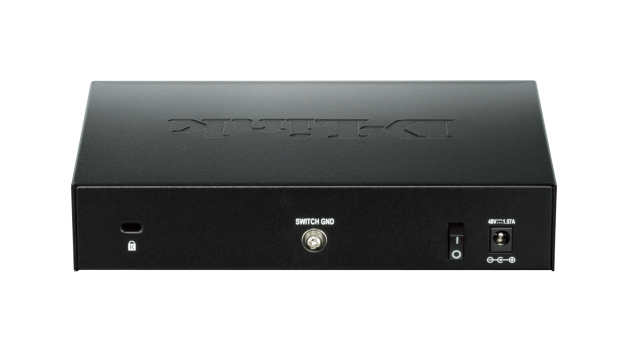

Power connectorDC-in jack

Network

Networking standardsIEEE 802.3ab, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
VLAN supportYes
Virtual LAN featuresVoice VLAN, Tagged VLAN, Port-based VLAN

Data transmission

MAC address table8000 entries
Switching capacity16 Gbit/s
Throughput11.9 Mpps
Jumbo frames supportYes
Jumbo frames9216

Security

DHCP featuresDHCP client

Design

Rack mountingNo
Product colourBlack
Reset buttonYes
LED indicatorsYes
SafetyUL/cUL, CE LVD

Performance

Flash memory2 MB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width190 mm
Depth120 mm
Height28 mm
Weight710 g

Packaging data

Package width180 mm
Package depth210 mm
Package height74 mm
Package weight1.09 kg

Technical details

Master (outer) cases per pallet (air)18 pc(s)
Master (outer) cases per pallet (sea)30 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)491.5 kg
Pallet gross weight (sea)806.6 kg
Pallet gross width120 cm
Pallet height (air)129.9 cm
Pallet height (sea)2.08 m
Products per pallet (air)360 pc(s)
Products per pallet (sea)600 pc(s)
Products per shipping (inner) case20 pc(s)
Shipping (inner) case gross weight26.2 kg
Shipping (inner) case height38.8 cm
Shipping (inner) case length44.6 cm
Shipping (inner) case net weight25.1 kg
Shipping (inner) case width39.7 cm

Certificates

Certification• FCC Class A • CE Class A • VCCI Class A

Logistics data

Harmonized System (HS) code85176990
