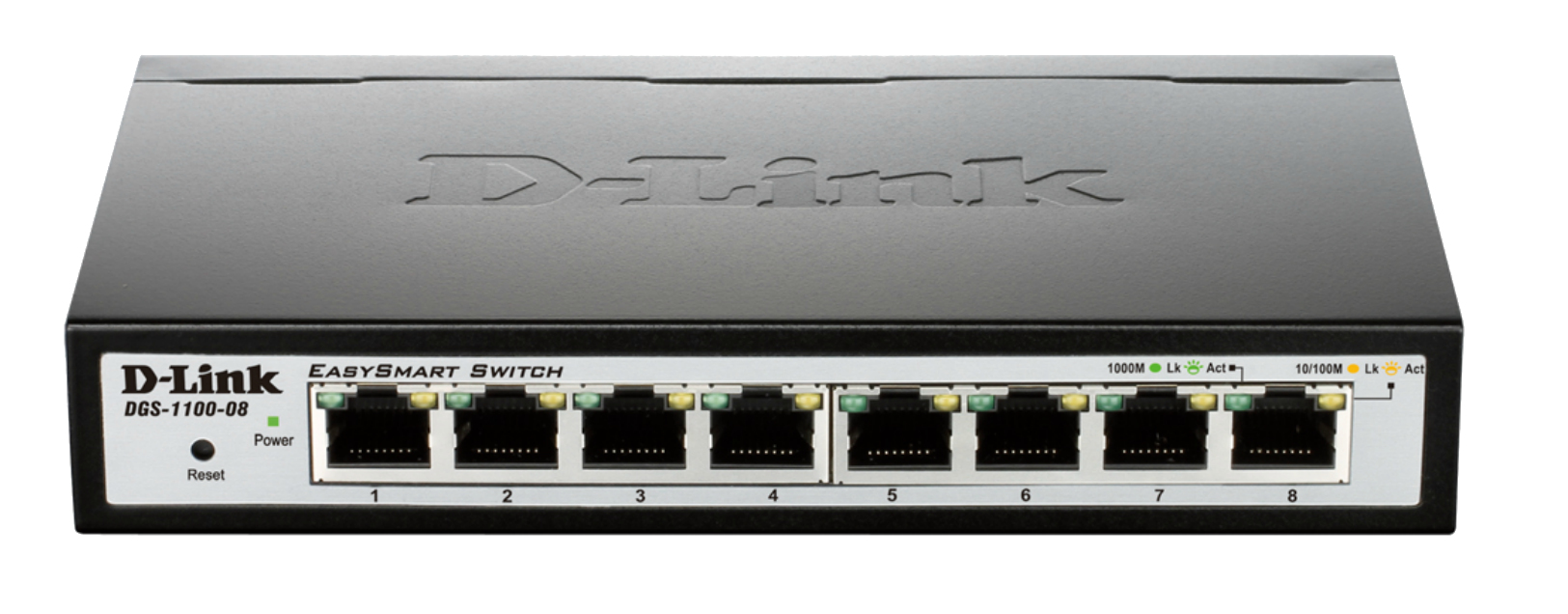

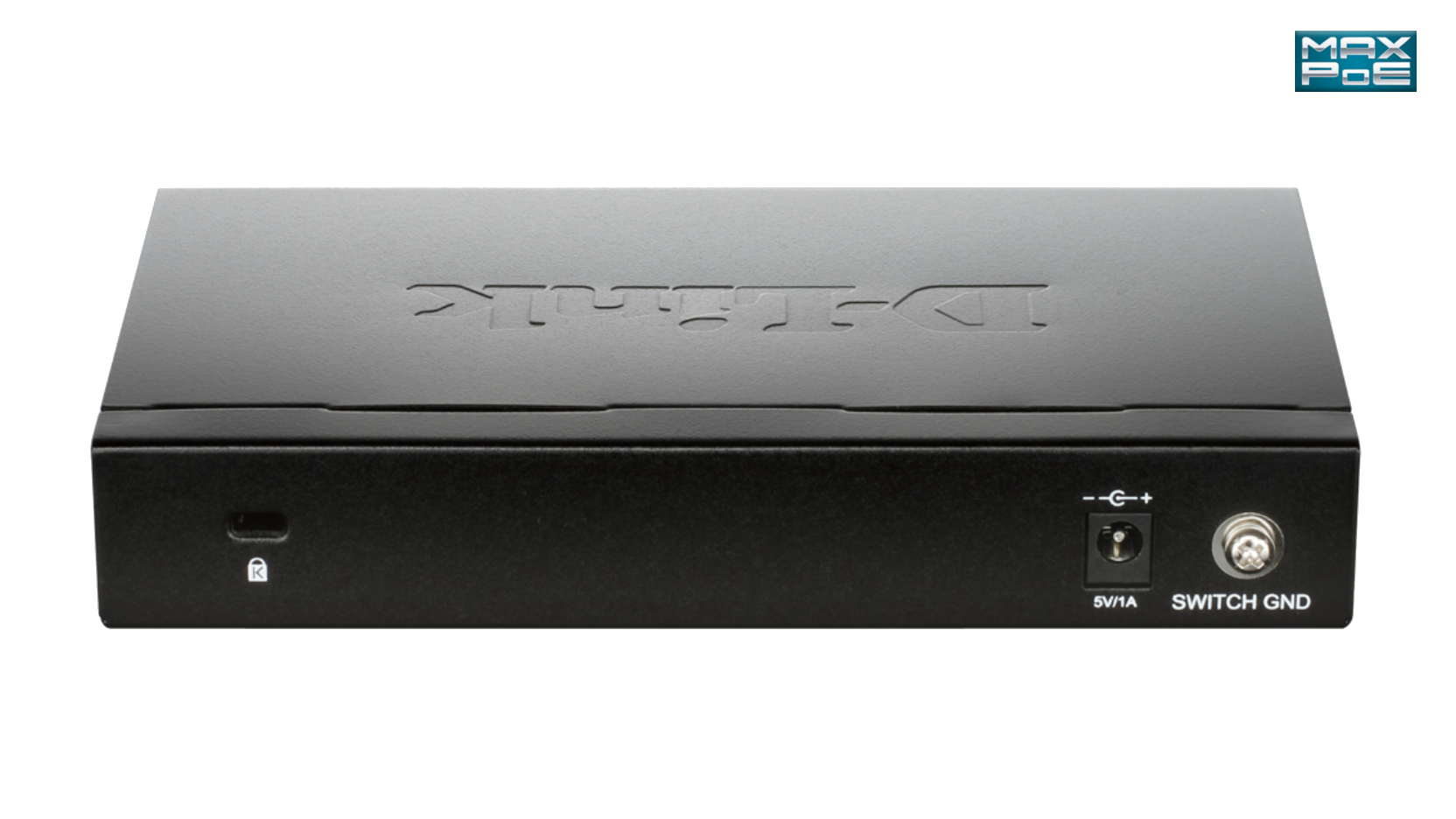

D-Link DGS-1100-08 network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

D-Link DGS-1100-08 network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Model DGS-1100-08Part no. DGS-1100-08/EEAN 790069372957

64 specifications
  • Noise0 dB
  • Weight340 g
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
See all specifications

Overview

Noise
0 dB
Weight
340 g
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Brand
D-Link
Model
DGS-1100-08
Part numbers
DGS-1100-08/E, DGS-1100-08
EAN / UPC
790069372957, 056555287496, 112040013480, 115970727984 +17 more
Also known as
D-Link DGS-1100-08 network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

Specifications

64 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportYes
Head-of-line (HOL) blockingYes
VLAN supportYes

Data transmission

MAC address table8000 entries
Switching capacity16 Gbit/s
Forwarding rate11.9 Mpps
Store-and-forwardYes
Packet buffer memory0.256 MB

Security

IGMP snoopingYes

Design

Rack mountingNo
Product colourBlack
LED indicatorsLink

Performance

Flash memory2 MB
Noise level0 dB
Mean time between failures (MTBF)1456992 h

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)4.58 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation16.85 BTU/h

Weight & dimensions

Width145 mm
Depth82 mm
Height28 mm
Weight340 g

Packaging data

Package width202 mm
Package depth262 mm
Package height64 mm
Package weight803 g

Technical details

Master (outer) cases per pallet (air)48 pc(s)
Master (outer) cases per pallet (sea)48 pc(s)
Pallet gross length110 cm
Pallet gross weight (air)439.5 kg
Pallet gross weight (sea)439.5 kg
Pallet gross width120 cm
Pallet height (air)184.7 cm
Pallet height (sea)184.7 cm
Products per pallet (air)480 pc(s)
Products per pallet (sea)480 pc(s)
Products per shipping (inner) case10 pc(s)
Shipping (inner) case gross weight8.03 kg
Shipping (inner) case height42.8 cm
Shipping (inner) case length34.7 cm
Shipping (inner) case net weight8.74 kg
Shipping (inner) case width27.8 cm

Certificates

CertificationFCC A, CE A, VCCI A, ICES-003, C-Tick
