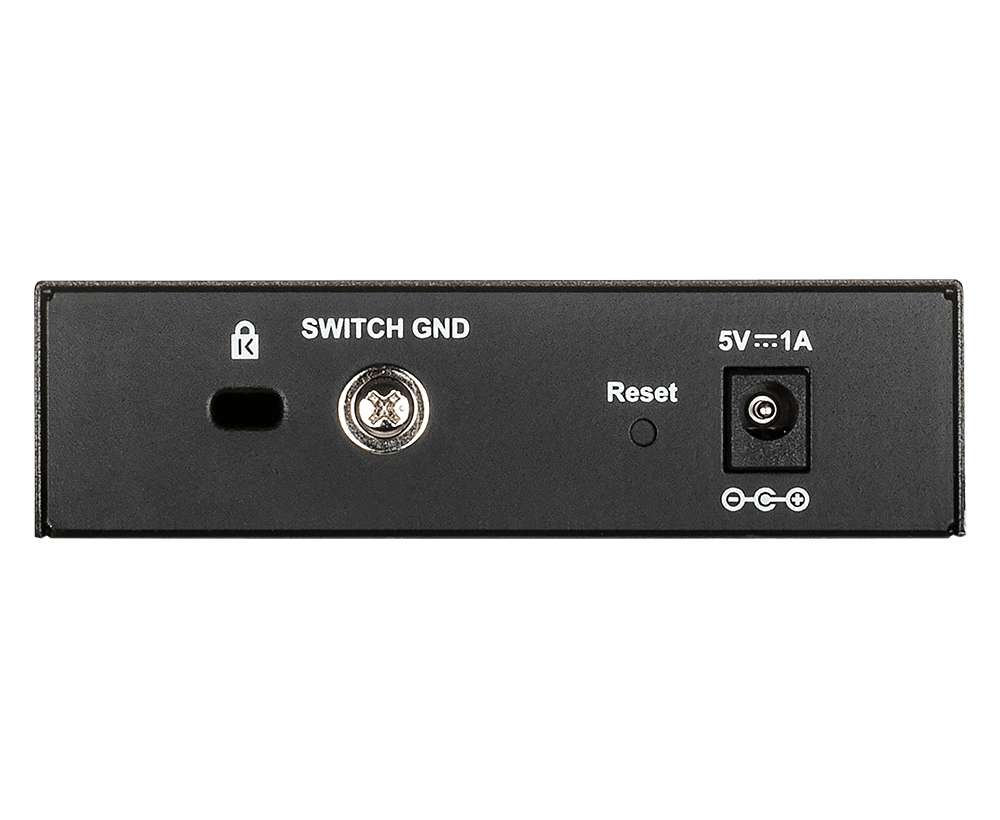

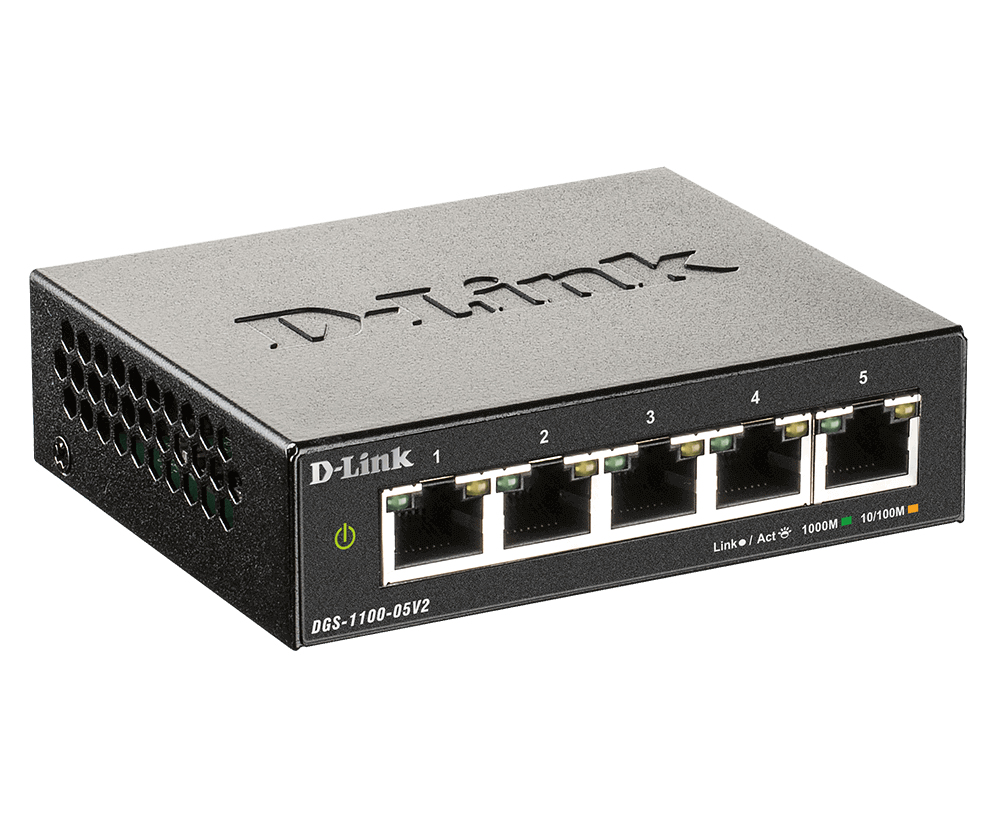

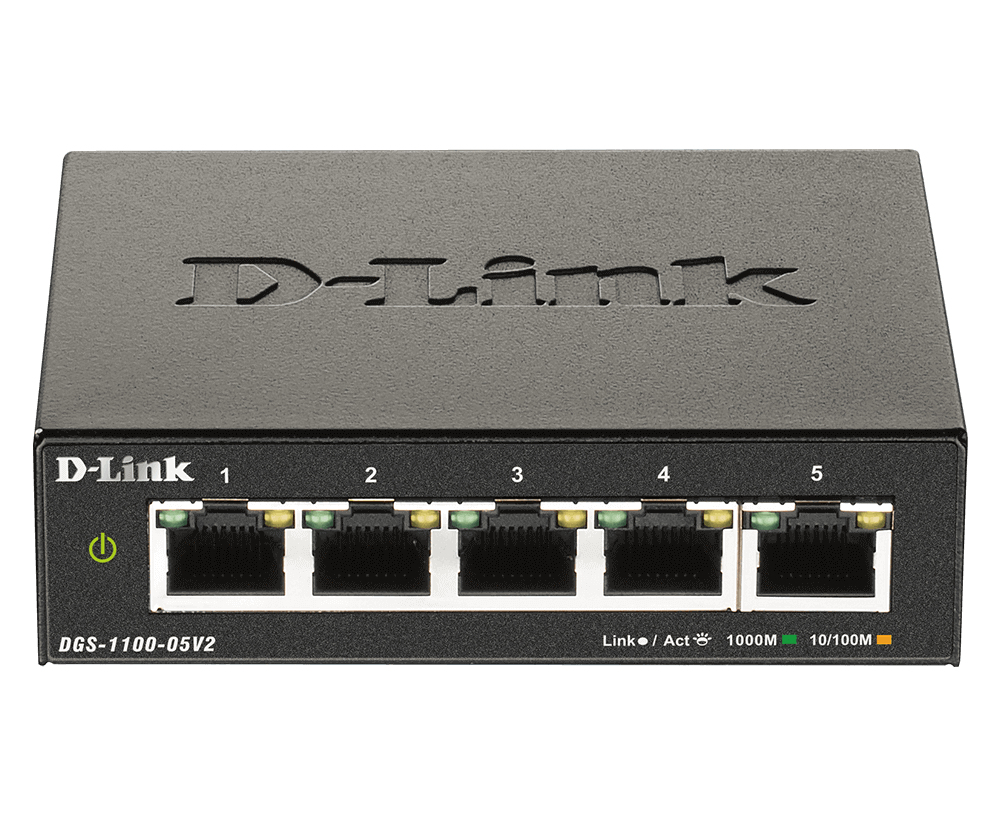

DGS-1100-05V2/E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Model DGS-1100-05V2/EEAN 790069453403
40 specifications
- Noise0 dB
- Weight230 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Noise
- 0 dB
- Weight
- 230 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1100-05V2/E
- Part number
- DGS-1100-05V2/E
- EAN / UPC
- 790069453403, 7900694534030
- Also known as
- D-Link DGS-1100-05V2/E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Specifications
40 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Reset button | Yes |
| Number of fans | 0 fan(s) |
Performance
| Specification | Value |
|---|---|
| Noise level | 0 dB |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 3.42 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100.5 mm |
| Depth | 28 mm |
| Height | 82 mm |
| Weight | 230 g |
