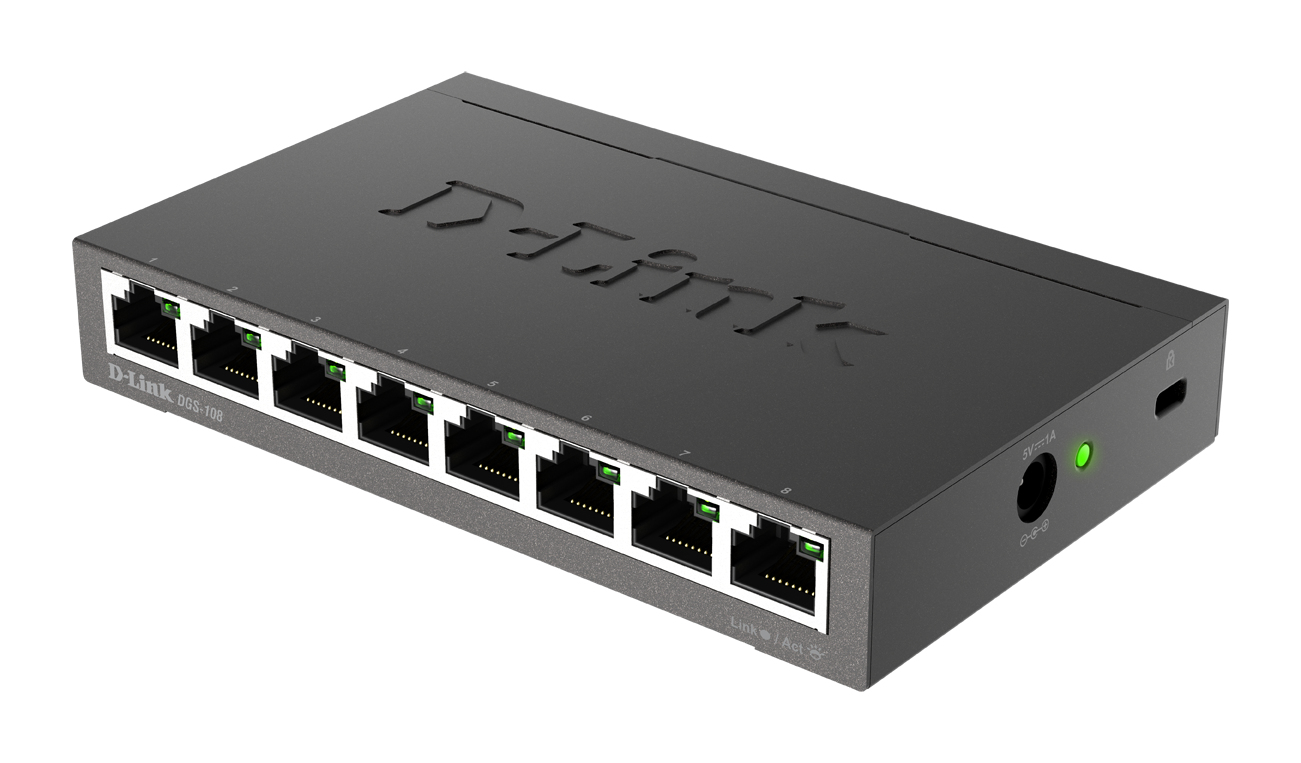

DGS-108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop Black
Model DGS-108Part no. DGS-108/BEAN 7900693682336
63 specifications
- Speed1 Gbit/s
- ConnectivityWired
- TypeDesktop
- Weight270 g
- ColourBlack
- Switch typeUnmanaged
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- Desktop
- Weight
- 270 g
- Colour
- Black
- Switch type
- Unmanaged
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-108
- Part numbers
- DGS-108/B, DGS-108, DGS-108/E
- EAN / UPC
- 7900693682336, 132017693552, 151903028889, 163120278404 +20 more
- Also known as
- D-Link DGS-108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop Black
Specifications
63 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

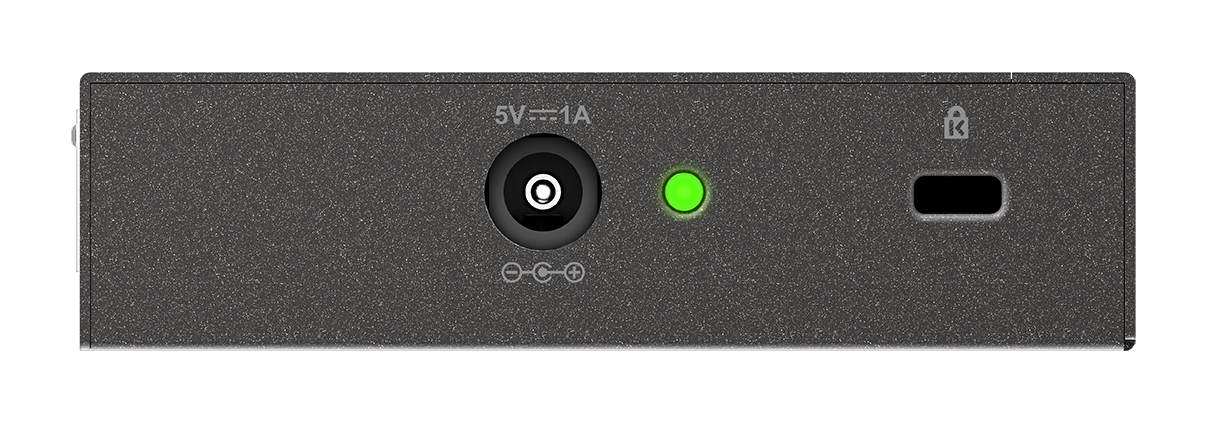

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.192 MB |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Form factor | Desktop |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, Power |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 1467882 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 5.12 W |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 2000 Mbit/s |
| Dimensions (WxDxH) | 162 x 102 x 28 mm |
| Connectivity technology | Wired |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 17.47 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138.7 mm |
| Depth | 85 mm |
| Height | 22.4 mm |
| Weight | 270 g |
Packaging data
| Specification | Value |
|---|---|
| Included power plug types | EU |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 398.9 kg |
| Pallet gross weight (sea) | 398.9 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 196.7 cm |
| Pallet height (sea) | 196.7 cm |
| Products per pallet (air) | 480 pc(s) |
| Products per pallet (sea) | 480 pc(s) |
| Products per shipping (inner) case | 10 pc(s) |
| Shipping (inner) case gross weight | 7.79 kg |
| Shipping (inner) case height | 44.3 cm |
| Shipping (inner) case length | 37 cm |
| Shipping (inner) case net weight | 7.1 kg |
| Shipping (inner) case width | 26 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
