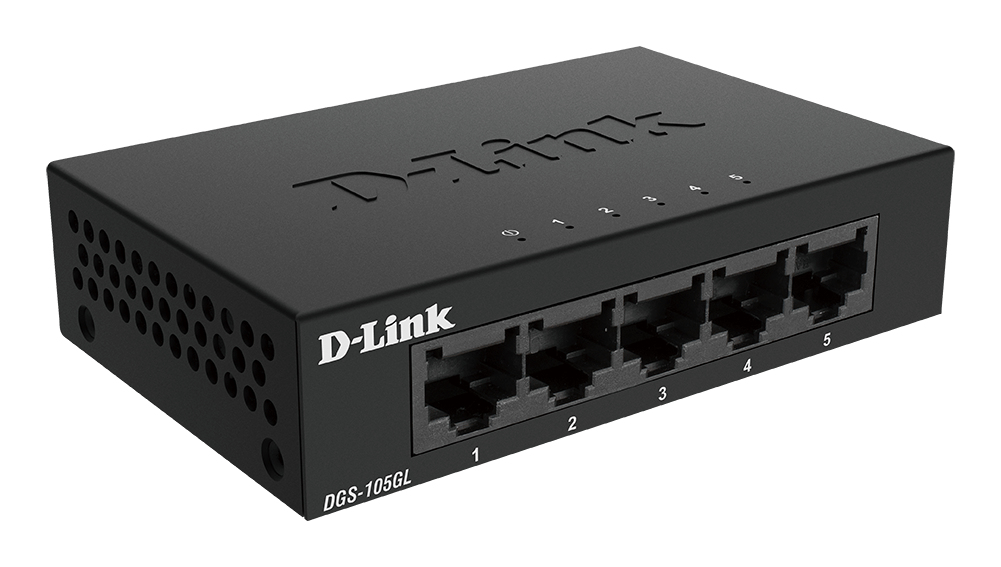

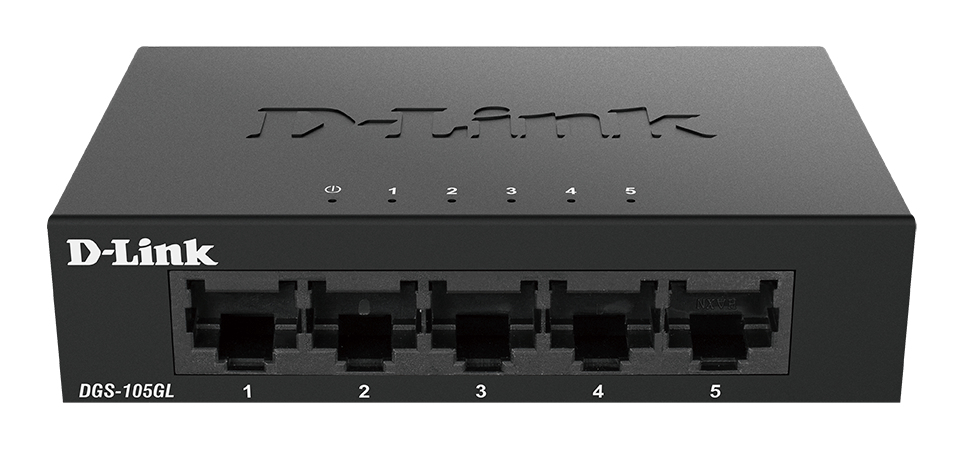

DGS-105GL 5-Port Gigabit Ethernet Switch, Fanless, Low Profile, Metal Housing, Plug-and-Play, 802.3az EEE black
Model DGS-105GLPart no. DGS-105GL/BEAN 790069458606
40 specifications
- TypeDesktop
- Weight160 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Overview
- Type
- Desktop
- Weight
- 160 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-105GL
- Part number
- DGS-105GL/B
- EAN / UPC
- 790069458606, 7900694585766
- Also known as
- D-Link DGS-105GL 5-Port Gigabit Ethernet Switch, Fanless, Low Profile, Metal Housing, Plug-and-Play, 802.3az EEE black
Specifications
40 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Form factor | Desktop |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 1455562 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |

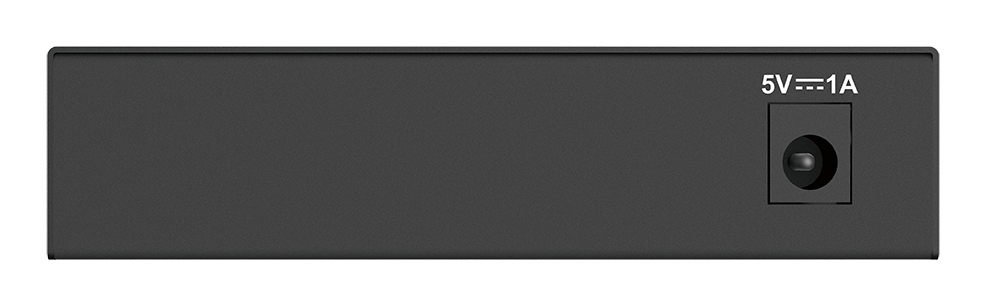

| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 3.55 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 12.11 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 64 mm |
| Height | 24 mm |
| Weight | 160 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | CE; FCC; RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
