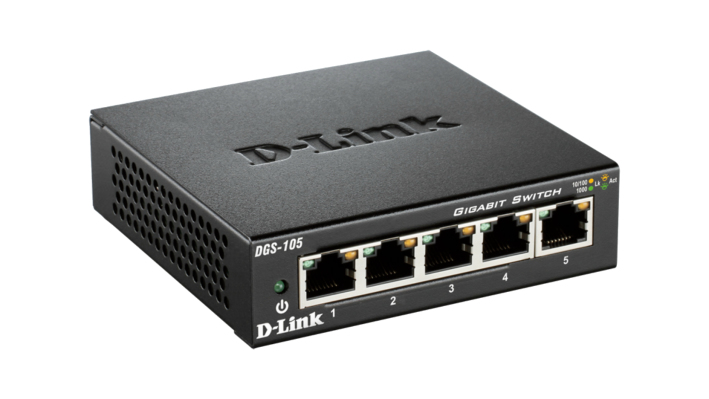

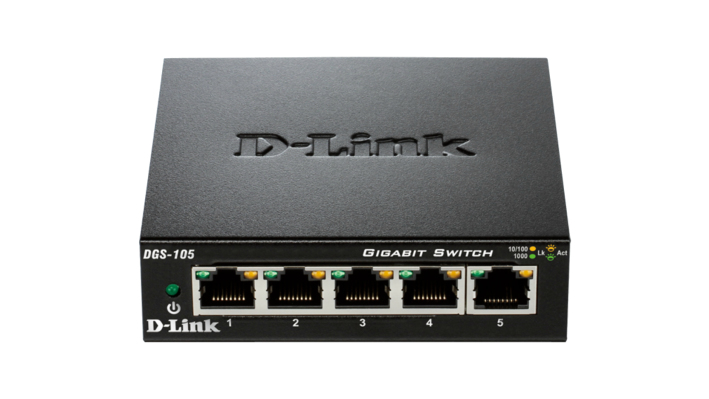

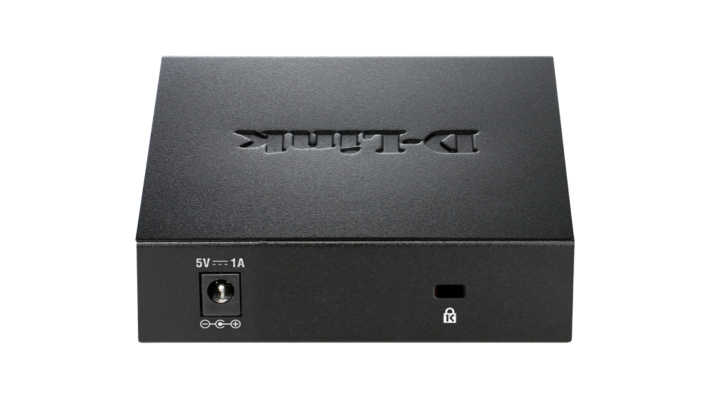

D-Link DGS-105 2 Pack
Model DGS-105 2 PackPart no. DGS-105*2EAN 3015220611131
39 specifications
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
- Buffer size128 KB
Overview
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Buffer size
- 128 KB
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-105 2 Pack
- Part number
- DGS-105*2
- EAN / UPC
- 3015220611131, 5054531475887, 9154403752491
- Also known as
- D-Link DGS-105 2 Pack Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Specifications
39 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 128 KB |
| Mean time between failures (MTBF) | 1688338 h |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 3.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 98 mm |
| Height | 28 mm |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS FCC Class B ICES-003 Class B CE Class B C-Tick Class B VCCI Class B cUL CB |
What people say
Reviews & ratings
D-Link DGS-105 2 Pack
No reviews yet
Be the first to tell others how D-Link DGS-105 2 Pack works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link DGS-105 2 Pack

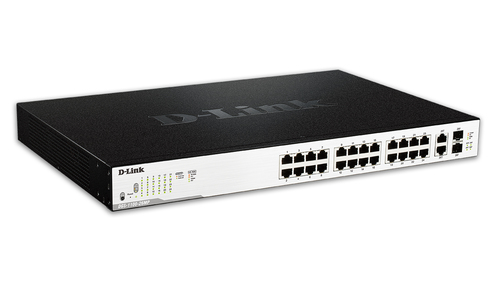

All network switch comparisons- D-Link DGS-105 2 Pack vsD-Link DGS-1100-10MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
