D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with
2 x 100/1000Mbps Combo Ports
Model DGS-1026MPEAN 790069426667
61 specifications
- Weight3.1 kg
- ColourBlack, Grey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8192 entries
Overview
- Weight
- 3.1 kg
- Colour
- Black, Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8192 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1026MP
- Part number
- DGS-1026MP
- EAN / UPC
- 790069426667, 5706998941220
- Also known as
- D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with 2 x 100/1000Mbps Combo Ports
Specifications
61 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 52 Gbit/s |
| Throughput | 38.69 Mpps |
| Forwarding rate | 38.69 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 0.512 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black, Grey |
| LED indicators | Activity, Link, PoE, Power, Power fail, Speed |
| Number of fans | 2 fan(s) |
| Safety | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 205975 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 444.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1515 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 250.4 mm |
| Height | 44 mm |
| Weight | 3.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 388 mm |
| Package depth | 506 mm |
| Package height | 90 mm |
| Package weight | 3.7 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI |
| Certification | FCC Class A CE CCC RoHS VCCI BSMI RCM |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 30 pc(s) |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 281.8 kg |
| Pallet gross weight (sea) | 369.8 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 136.5 cm |
| Pallet height (sea) | 177.5 cm |
| Products per pallet (air) | 60 pc(s) |
| Products per pallet (sea) | 80 pc(s) |
| Products per shipping (inner) case | 2 pc(s) |
| Shipping (inner) case gross weight | 8.79 kg |
| Shipping (inner) case height | 41 cm |
| Shipping (inner) case length | 52 cm |
| Shipping (inner) case net weight | 8.39 kg |
| Shipping (inner) case width | 20.5 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with
Compare any products- D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with vsD-Link 28-Port Gigabit PoE+ Smart Managed Switch includingCompare specs

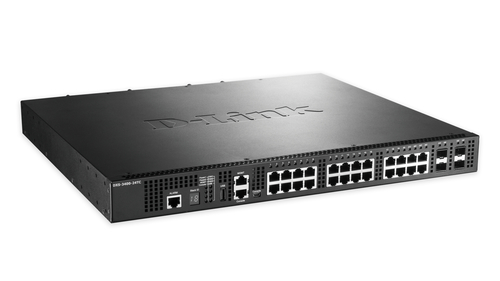

- D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with vsD-Link DXS-3400-24SC network switch Managed L3 BlackCompare specs

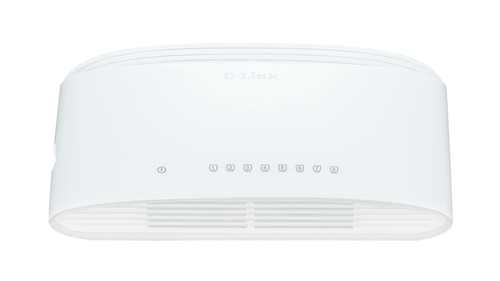

- D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with vsD-Link DGS-1008D Gigabit Ethernet (10/100/1000) WhiteCompare specs

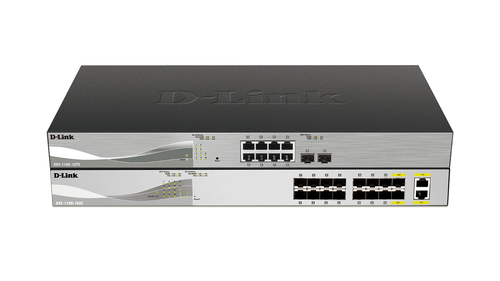

- D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with vsD-Link DXS-1100-16SC network switch Managed BlackCompare specs

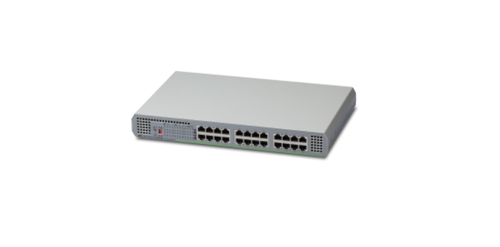

- D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with vsAllied Telesis AT-GS910/24-50 Unmanaged Gigabit Ethernet (10/100/1000) GreyCompare specs

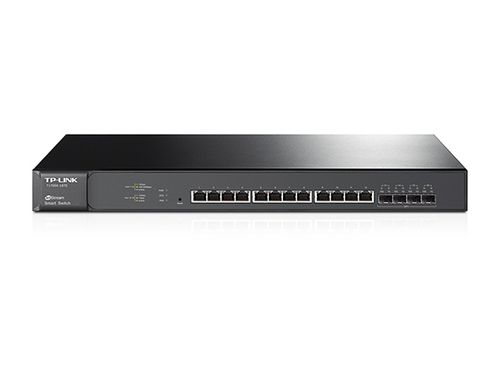

- D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with vsTP-Link JetStream 12-Port 10GBase-T Smart Network Switch with 4Compare specs

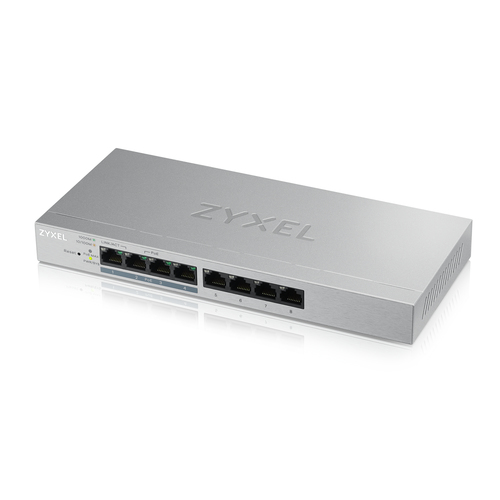

- D-Link 24-Port Desktop Gigabit Unmanaged PoE Switch with vsZyxel GS1200-8HP-EU network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs
