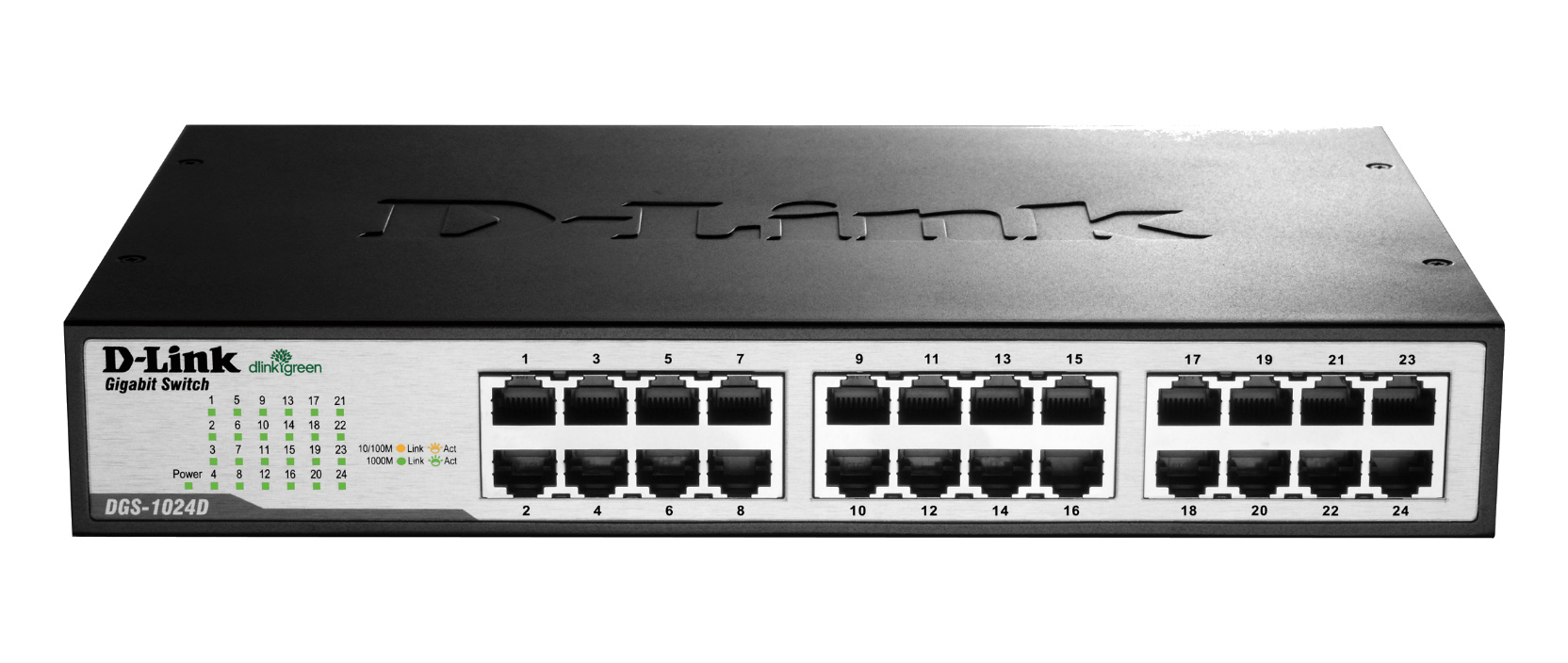

DGS-1024D Unmanaged
Model DGS-1024DEAN 790069269950
39 specifications
- Speed1 Gbit/s
- Weight1.3 kg
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- Full duplexYes
- MAC address table8000 entries
Overview
- Speed
- 1 Gbit/s
- Weight
- 1.3 kg
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Full duplex
- Yes
- MAC address table
- 8000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1024D
- Part numbers
- DGS-1024D, DGS-1024D/E, DGS-1024D/A
- EAN / UPC
- 790069269950, 071080006176, 079006926829, 132017760063 +19 more
- Also known as
- D-Link DGS-1024D Unmanaged
Specifications
39 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.5 MB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 26.7 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 280 x 180 x 44 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 262 mm |
| Package depth | 391 mm |
| Package height | 102 mm |
| Package weight | 2.43 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 32 pc(s) |
| Master (outer) cases per pallet (sea) | 32 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 435.8 kg |
| Pallet gross weight (sea) | 435.8 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 185.9 cm |
| Pallet height (sea) | 185.9 cm |
| Products per pallet (air) | 160 pc(s) |
| Products per pallet (sea) | 160 pc(s) |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 13 kg |
| Shipping (inner) case height | 43.1 cm |
| Shipping (inner) case length | 54.3 cm |
| Shipping (inner) case net weight | 8.53 kg |
| Shipping (inner) case width | 28.4 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
