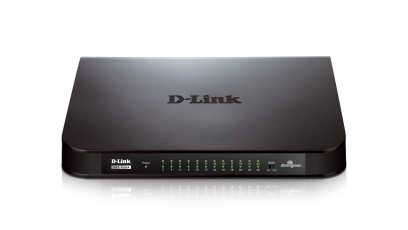

D-Link DGS-1024A network switch Unmanaged Black
Model DGS-1024AEAN 898029657165
35 specifications
- Speed2 Gbit/s
- ConnectivityWired
- Weight760 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 2 Gbit/s
- Connectivity
- Wired
- Weight
- 760 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1024A
- Part number
- DGS-1024A
- EAN / UPC
- 898029657165, 021111184656, 122743397961, 132017864112 +15 more
- Also known as
- D-Link DGS-1024A network switch Unmanaged Black
Specifications
35 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10, 20, 100, 200, 1000, 2000Mbps |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 2 Gbit/s |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 401516 h |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 V |
| Power consumption (typical) | 14.17 W |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Packet transfer speed | 1488000pps |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 257 mm |
| Depth | 178 mm |
| Height | 46 mm |
| Weight | 760 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC CE uCL CB VCCI C-Tick RoHS |
What people say
Reviews & ratings
D-Link DGS-1024A network switch Unmanaged Black
No reviews yet
Be the first to tell others how D-Link DGS-1024A network switch Unmanaged Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link DGS-1024A network switch Unmanaged Black
All network switch comparisons- D-Link DGS-1024A network switch Unmanaged Black vsD-Link GO-SW-8GE network switch Gigabit Ethernet (10/100/1000) BlackCompare specs
- D-Link DGS-1024A network switch Unmanaged Black vsD-Link GO-SW-5GE network switch Gigabit Ethernet (10/100/1000) BlackCompare specs
- D-Link DGS-1024A network switch Unmanaged Black vsD-Link DGS-3120-24TC-SI network switch Managed L2 BlackCompare specs
- D-Link DGS-1024A network switch Unmanaged Black vsD-Link DXS-3600-16S Managed Gigabit Ethernet (10/100/1000) BlackCompare specs
- D-Link DGS-1024A network switch Unmanaged Black vsNETGEAR FS308 GreyCompare specs

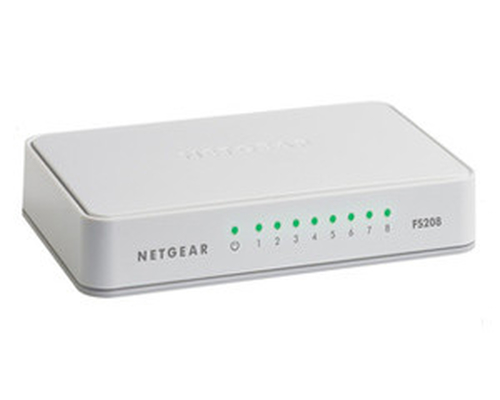

- D-Link DGS-1024A network switch Unmanaged Black vsNETGEAR FS208 Unmanaged WhiteCompare specs
