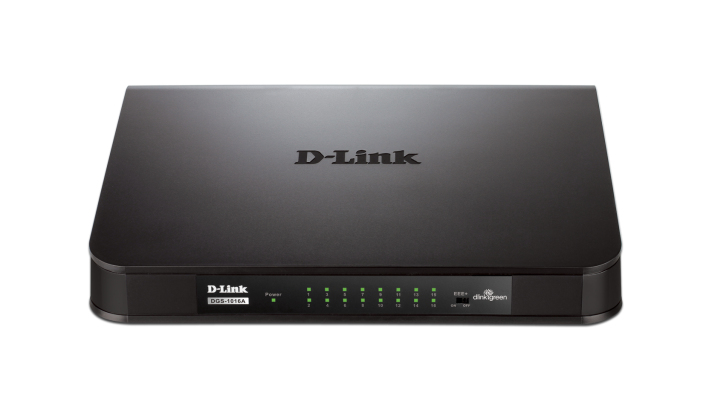

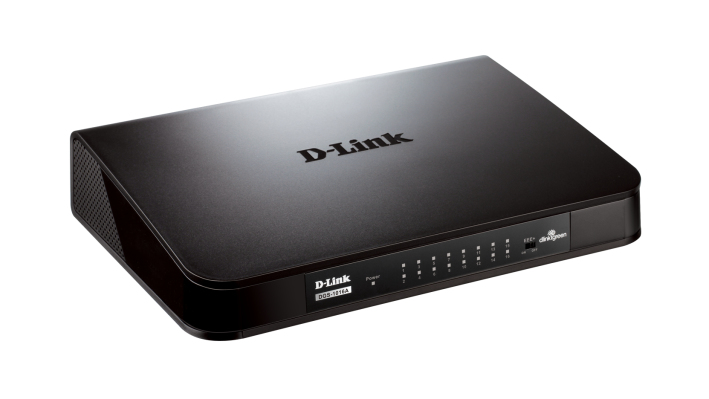

D-Link DGS-1016A network switch Unmanaged Black
Model DGS-1016AEAN 903390455149
35 specifications
- Speed2 Gbit/s
- Weight580 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
Overview
- Speed
- 2 Gbit/s
- Weight
- 580 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1016A
- Part number
- DGS-1016A
- EAN / UPC
- 903390455149, 132017693538, 137003597333, 143723953038 +15 more
- Also known as
- D-Link DGS-1016A network switch Unmanaged Black
Specifications
35 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|

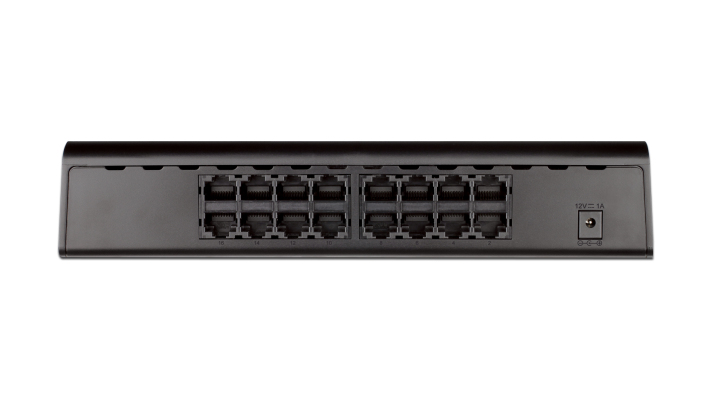

| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10, 100,1000Mbps |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 2 Gbit/s |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 527308 h |
Power
| Specification | Value |
|---|---|
| Input current | 1 A |
| Power consumption (typical) | 7.89 W |
Other features
| Specification | Value |
|---|---|
| Packet transfer speed | 1488000 pps/port |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 231 mm |
| Depth | 158 mm |
| Height | 46 mm |
| Weight | 580 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 231 mm |
| Package depth | 158 mm |
| Package height | 46 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS FCC ICES-003 CE uCL CB VCCI C-Tick |
