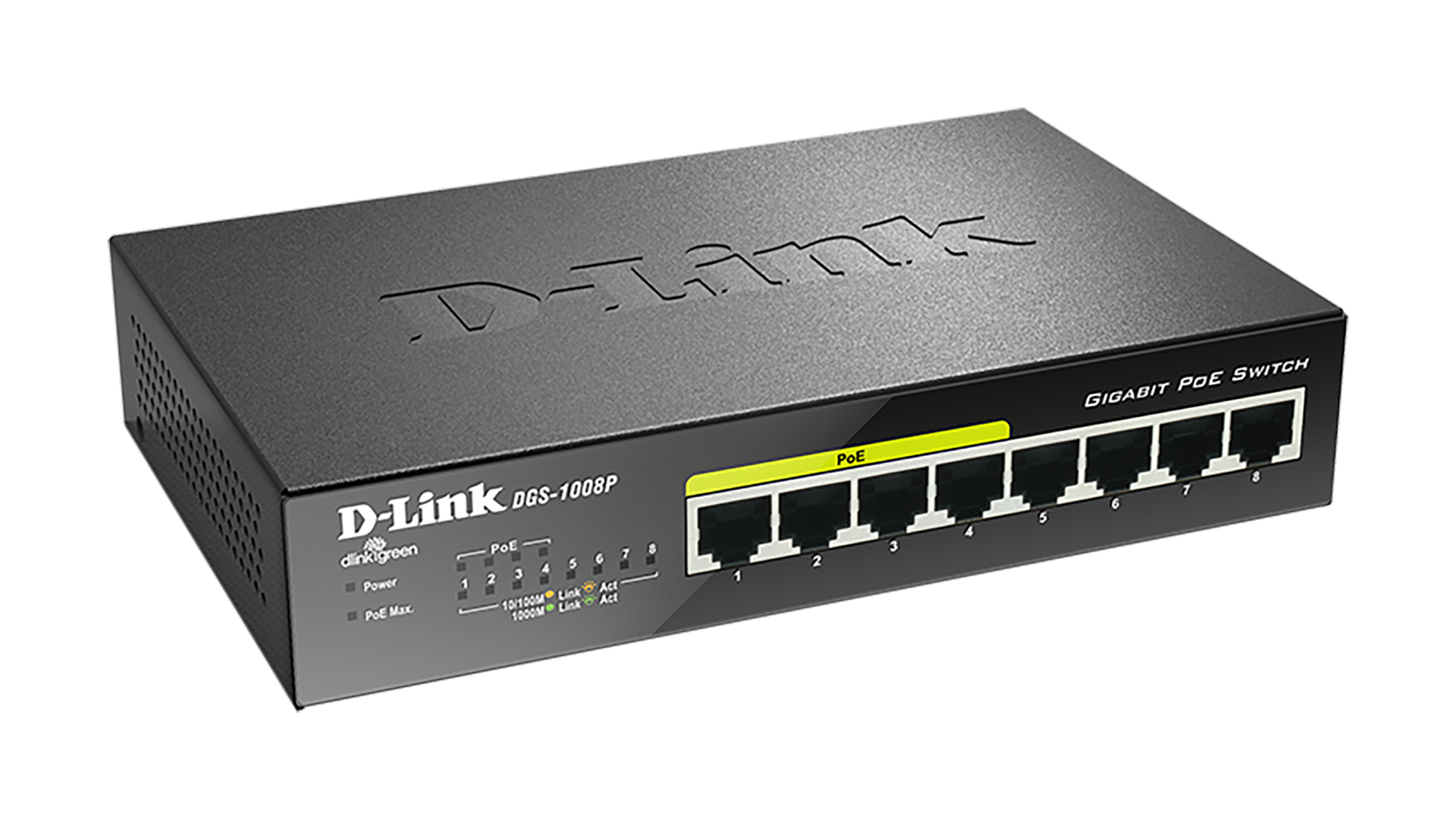

D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model DGS-1008PPart no. DGS-1008P/BEAN 5054531081231
37 specifications
- Noise0 dB
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8000 entries
Overview
- Noise
- 0 dB
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1008P
- Part numbers
- DGS-1008P/B, DGS-1008P
- EAN / UPC
- 5054531081231, 172304263105, 521227149599, 737212585413 +13 more
- Also known as
- D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
37 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

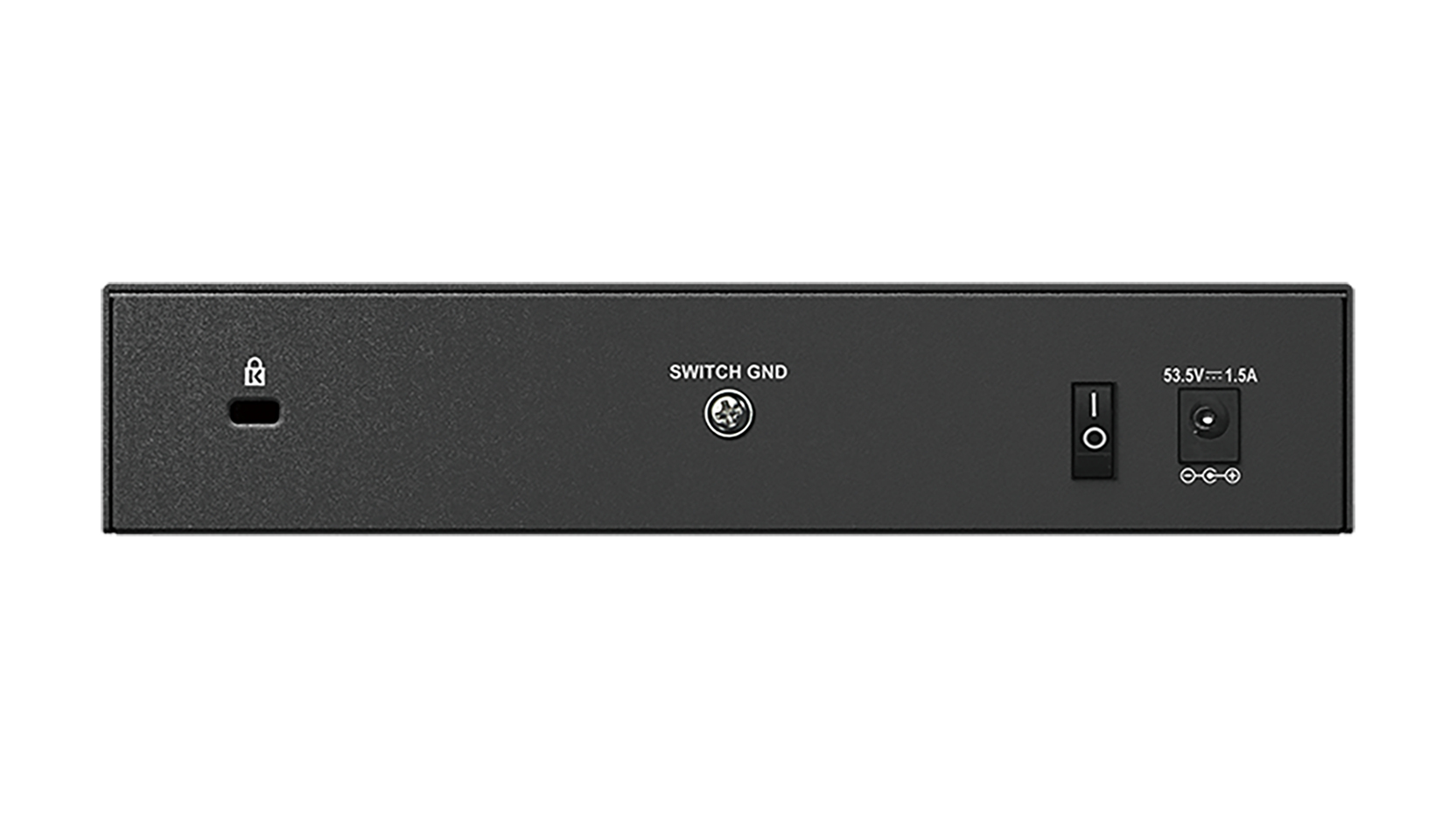

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 0.256 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
Performance
| Specification | Value |
|---|---|
| Noise level | 0 dB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Input current | 1.5 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 68 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 120 mm |
| Height | 38 mm |
Reviews
No reviews of D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black yet. Have you used it? Tell others what you think.
Write a reviewCompare D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
All network switch comparisons- D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsD-Link 8-Port Gigabit PoE Unmanaged Desktop SwitchCompare specs

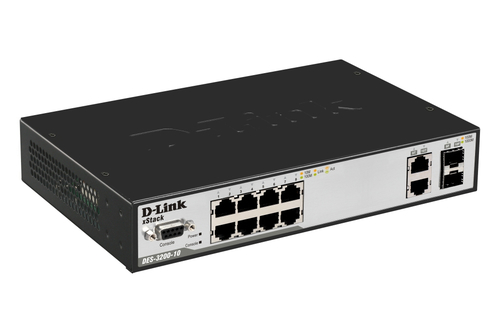

- D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsD-Link DES-3200-10 network switch Managed L2 1U BlackCompare specs

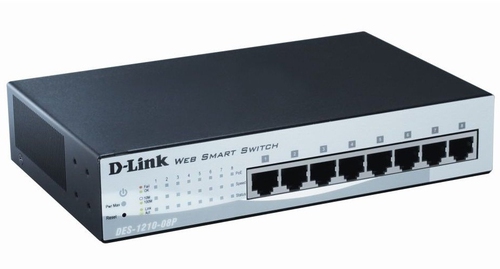

- D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsD-Link DES-1210-08P network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE) BlackCompare specs
- D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsD-Link EasySmart Managed L2 Gigabit Ethernet (10/100/1000) BlackCompare specs

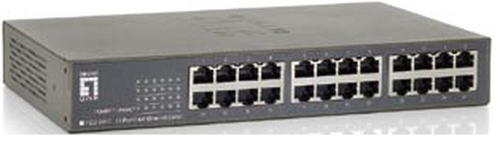

- D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsLevelOne FEU-2410 network switch Unmanaged GreyCompare specs

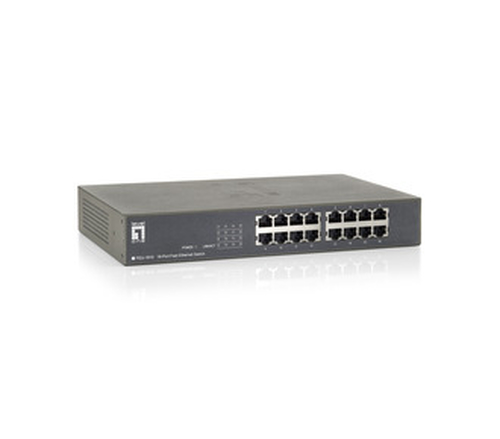

- D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsLevelOne FEU-1610 network switch Unmanaged GreyCompare specs

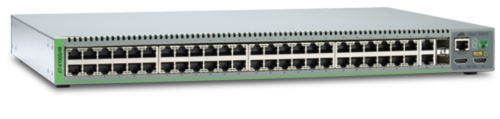

- D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsAllied Telesis AT-8100S/48 Managed L3 Gigabit Ethernet (10/100/1000) Green, GreyCompare specs

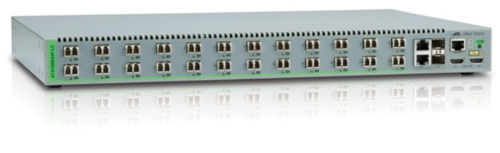

- D-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black vsAllied Telesis AT-8100S/24F-LC Managed L3 Green, GreyCompare specs
