D-Link 8-Port Desktop Gigabit PoE+ Switch
Model DGS-1008MPEAN 790069420320
53 specifications
- Type1U
- Weight1.84 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Full duplexYes
Overview
- Type
- 1U
- Weight
- 1.84 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Full duplex
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1008MP
- Part number
- DGS-1008MP
- EAN / UPC
- 790069420320, 790069420337, 790069420351, 790069474002
- Also known as
- D-Link 8-Port Desktop Gigabit PoE+ Switch
Specifications
53 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 0.192 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 13.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 140 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.84 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 262 mm |
| Package depth | 391 mm |
| Package height | 102 mm |
| Package weight | 2.85 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 563.8 kg |
| Pallet gross weight (sea) | 563.8 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 193.5 cm |
| Pallet height (sea) | 193.5 cm |
| Products per pallet (air) | 180 pc(s) |
| Products per pallet (sea) | 180 pc(s) |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 15.3 kg |
| Shipping (inner) case height | 28.5 cm |
| Shipping (inner) case length | 54.5 cm |
| Shipping (inner) case net weight | 14.2 kg |
| Shipping (inner) case width | 40.6 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Reviews
No reviews of D-Link 8-Port Desktop Gigabit PoE+ Switch yet. Have you used it? Tell others what you think.
Write a reviewCompare D-Link 8-Port Desktop Gigabit PoE+ Switch

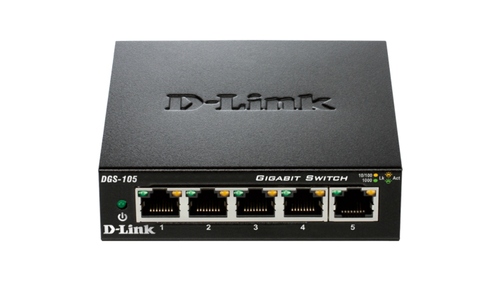

All network switch comparisons- D-Link 8-Port Desktop Gigabit PoE+ Switch vsD-Link DGS-105 2 PackCompare specs

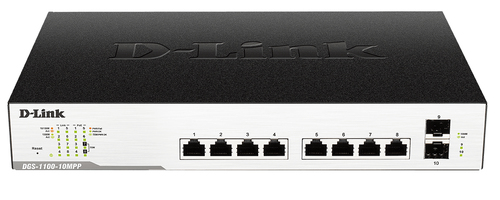

- D-Link 8-Port Desktop Gigabit PoE+ Switch vsD-Link DGS-1100-10MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U BlackCompare specs
- D-Link 8-Port Desktop Gigabit PoE+ Switch vsD-Link GO-SW-16GE network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- D-Link 8-Port Desktop Gigabit PoE+ Switch vsD-Link 10-port 10G SFP+ and 2-port 10GBASE-T/SFP+ Multi-Gigabit Smart Managed SwitchCompare specs

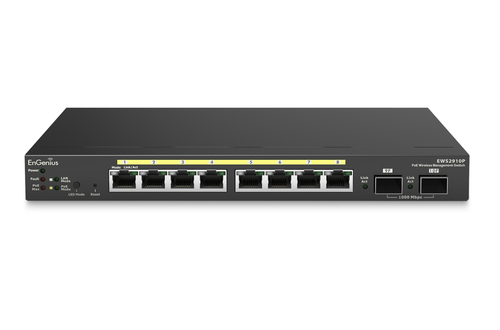

- D-Link 8-Port Desktop Gigabit PoE+ Switch vsEnGenius EWS2910P-Kit-300 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U GreyCompare specs

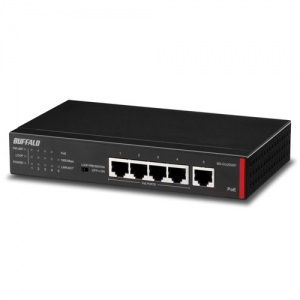

- D-Link 8-Port Desktop Gigabit PoE+ Switch vsBuffalo BS-GU2005P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs

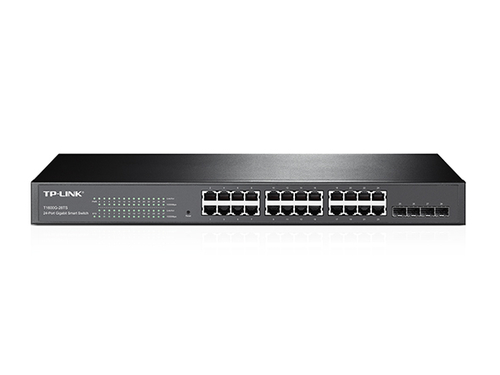

- D-Link 8-Port Desktop Gigabit PoE+ Switch vsTP-Link JetStream 24-Port Gigabit Smart Network Switch with 4 SFP SlotsCompare specs

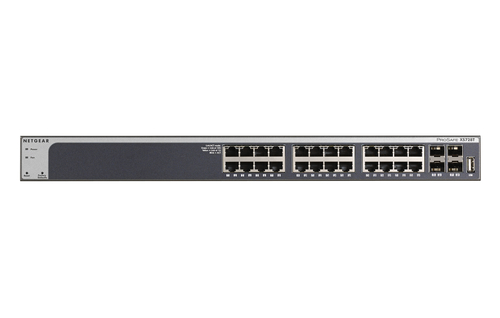

- D-Link 8-Port Desktop Gigabit PoE+ Switch vsNETGEAR 28-Port 10G Ethernet Smart Switch (XS728T)Compare specs
