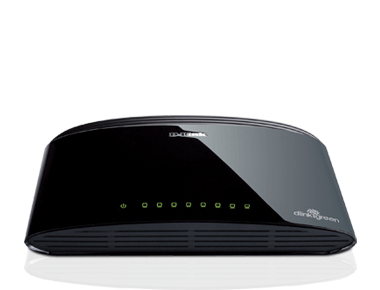

D-Link DGS-1008G network switch Unmanaged Black
Model DGS-1008GEAN 807030490135
39 specifications
- ConnectivityWired
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4000 entries
Overview
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1008G
- Part number
- DGS-1008G
- EAN / UPC
- 807030490135, 072090501330, 102930527913, 115970728028 +15 more
- Also known as
- D-Link DGS-1008G network switch Unmanaged Black
Specifications
39 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Throughput | 1488000 pps |
| Jumbo frames support | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 1150498 h |
Power
| Specification | Value |
|---|---|
| Input current | 1.2 A |
| Input voltage | 5 V |
| Power consumption (typical) | 5.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 2000 Mbit/s |
| Dimensions (WxDxH) | 164.5 x 112 x 35 mm |
| Connectivity technology | Wired |
| Bandwidth | 2 Gbit/s |
| Cable length | 100 m |
| Mounting | Wall |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
| Heat dissipation | 19.79 BTU/h |
Certificates
| Specification | Value |
|---|---|
| Certification | - FCC class B - ICES-003 class B - CE class B - C-Tick class B - VCCI class B - cUL - CB |
