D-Link 5-Port Desktop Gigabit PoE+ Switch
Model DGS-1005PPart no. DGS-1005P/BEAN 790069440939
42 specifications
- Weight260 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 260 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DGS-1005P
- Part number
- DGS-1005P/B
- EAN / UPC
- 790069440939, 790069464270
- Also known as
- D-Link 5-Port Desktop Gigabit PoE+ Switch
Specifications
42 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

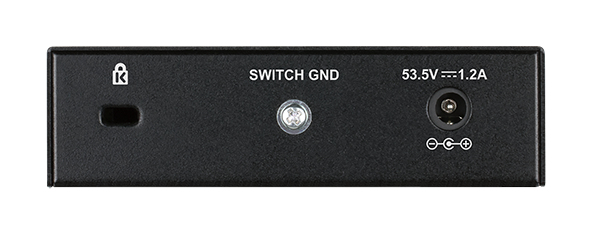

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| Packet filtering | 7.44 Mpps |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |

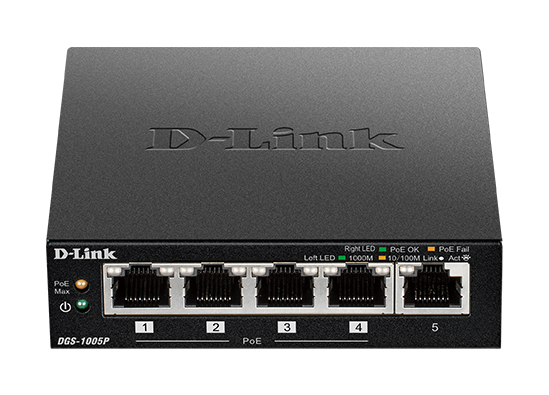

| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 64 KB |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 98 mm |
| Height | 28 mm |
| Weight | 260 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, BSMI, FCC , VCCI, RCM, cUL, CB, LVD, BSMI |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare D-Link 5-Port Desktop Gigabit PoE+ Switch
Compare any products- D-Link 5-Port Desktop Gigabit PoE+ Switch vsD-Link DGS-3130-30S network switch Managed L3 Black, GreyCompare specs
- D-Link 5-Port Desktop Gigabit PoE+ Switch vsD-Link DGS-3130-30TS network switch Managed L3 Gigabit Ethernet (10/100/1000) Black, GreyCompare specs

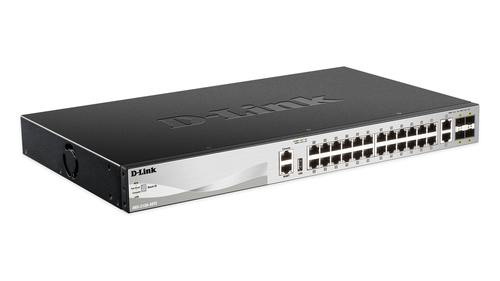

- D-Link 5-Port Desktop Gigabit PoE+ Switch vsD-Link DGS-3130 Series Gigabit Layer 3 Stackable Managed SwitchesCompare specs
- D-Link 5-Port Desktop Gigabit PoE+ Switch vsD-Link DGS-3130-54S Managed L3 Black, GreyCompare specs
- D-Link 5-Port Desktop Gigabit PoE+ Switch vsZyxel GS1920-24V2 Managed Gigabit Ethernet (10/100/1000) BlackCompare specs
- D-Link 5-Port Desktop Gigabit PoE+ Switch vsZyxel GS1920-48V2 Managed Gigabit Ethernet (10/100/1000) BlackCompare specs
- D-Link 5-Port Desktop Gigabit PoE+ Switch vsNEC QX-S408E Fast Ethernet (10/100) GreyCompare specs

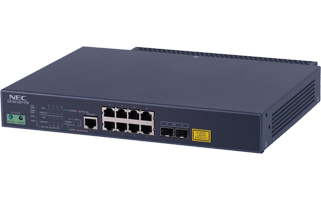

- D-Link 5-Port Desktop Gigabit PoE+ Switch vsNEC QX-S810EP-PW Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs
