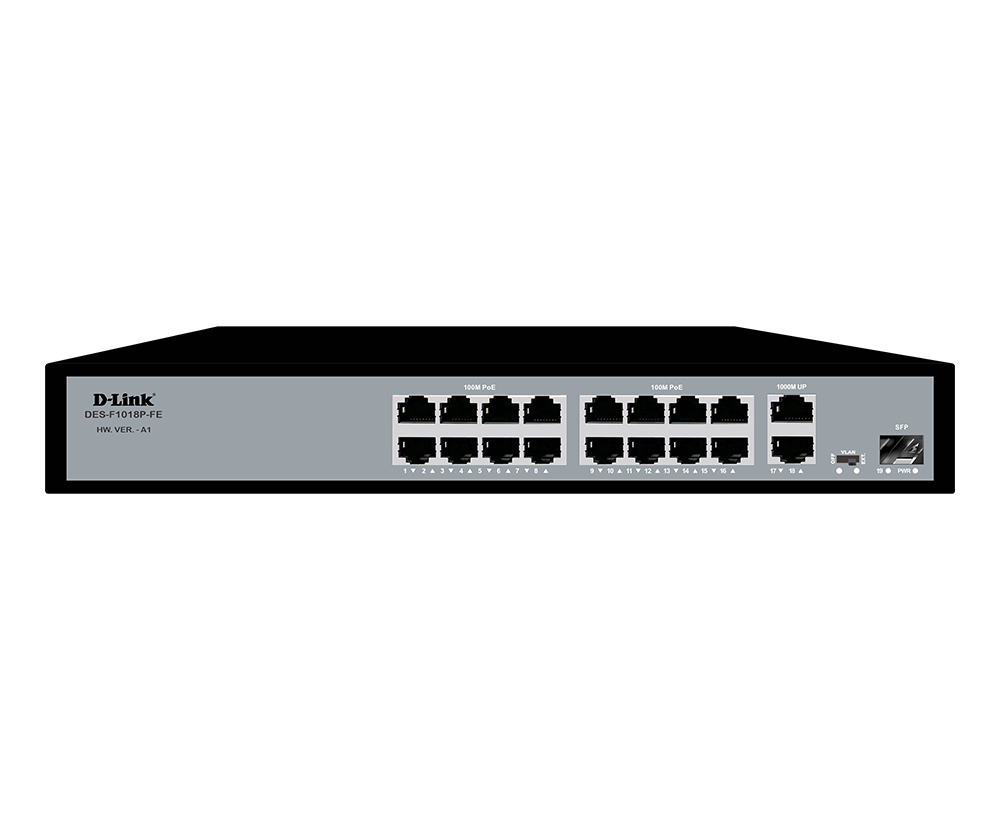

DES-F1018P- FE
Model DES-F1018P- FEEAN 8908017978638
34 specifications
- Weight1.75 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- Switching capacity9.2 Gbit/s
- FanlessYes
Overview
- Weight
- 1.75 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Switching capacity
- 9.2 Gbit/s
- Fanless
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-F1018P- FE
- Part number
- DES-F1018P- FE
- EAN / UPC
- 8908017978638
- Also known as
- D-Link DES-F1018P- FE network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
34 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 9.2 Gbit/s |
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 10 µs |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 150 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 183 mm |
| Depth | 310 mm |
| Height | 45 mm |
| Weight | 1.75 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
