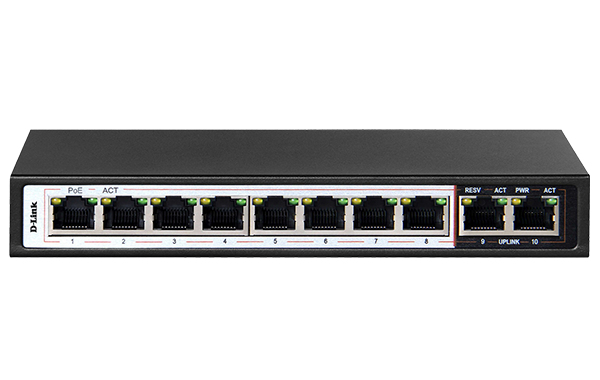

DES-F1010P-E network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model DES-F1010P-EEAN 202000000213
41 specifications
- Weight950 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity10
- 10G supportNo
- Switching capacity2 Gbit/s
Overview
- Weight
- 950 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 10
- 10G support
- No
- Switching capacity
- 2 Gbit/s
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-F1010P-E
- Part number
- DES-F1010P-E
- EAN / UPC
- 202000000213, 790069295553
- Also known as
- D-Link DES-F1010P-E network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
41 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 10 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 2 Gbit/s |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 96 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 184 mm |
| Depth | 75 mm |
| Height | 27 mm |
| Weight | 950 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | FCC |
