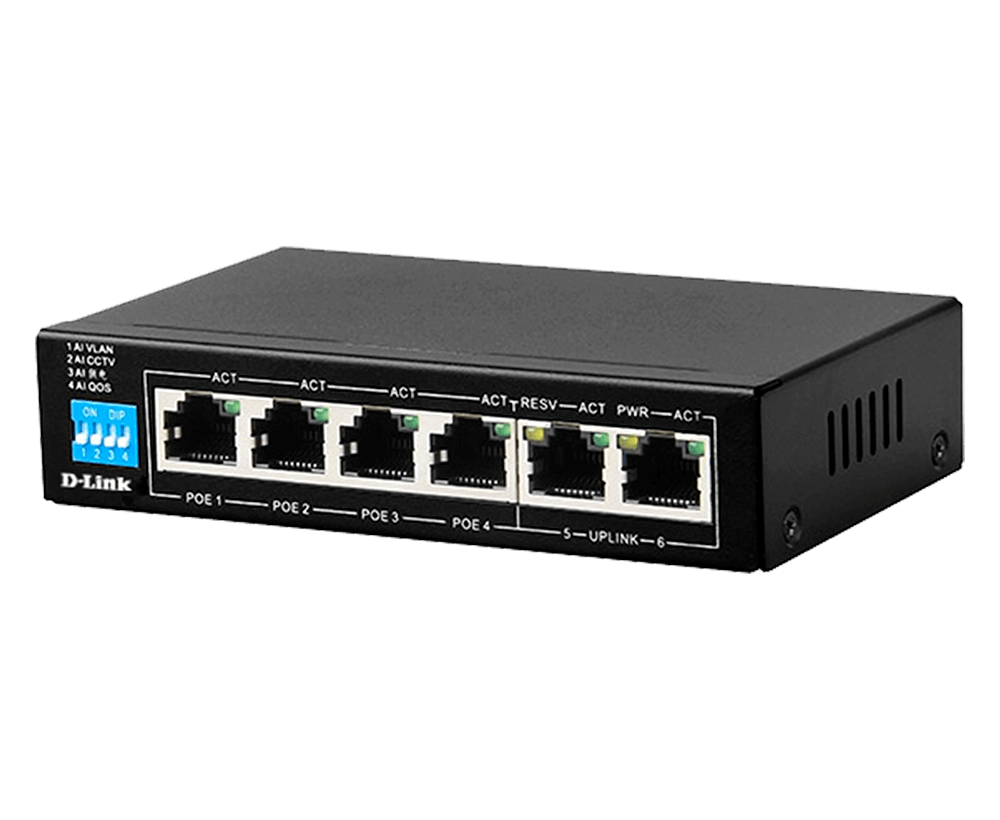

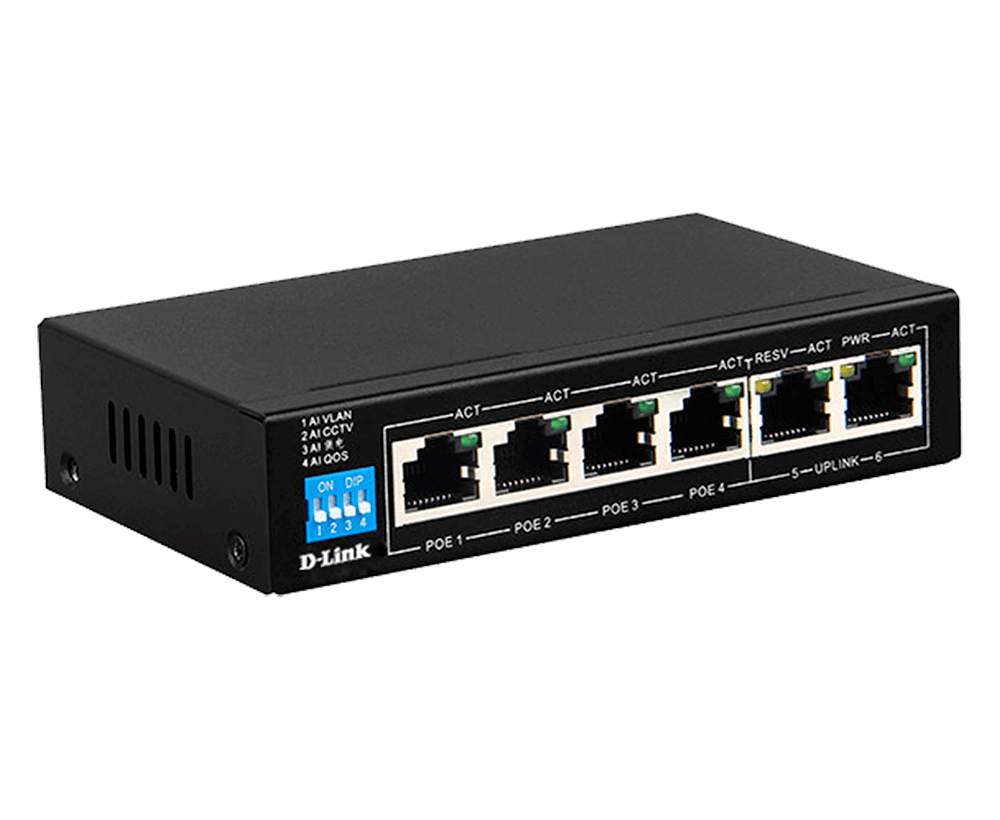

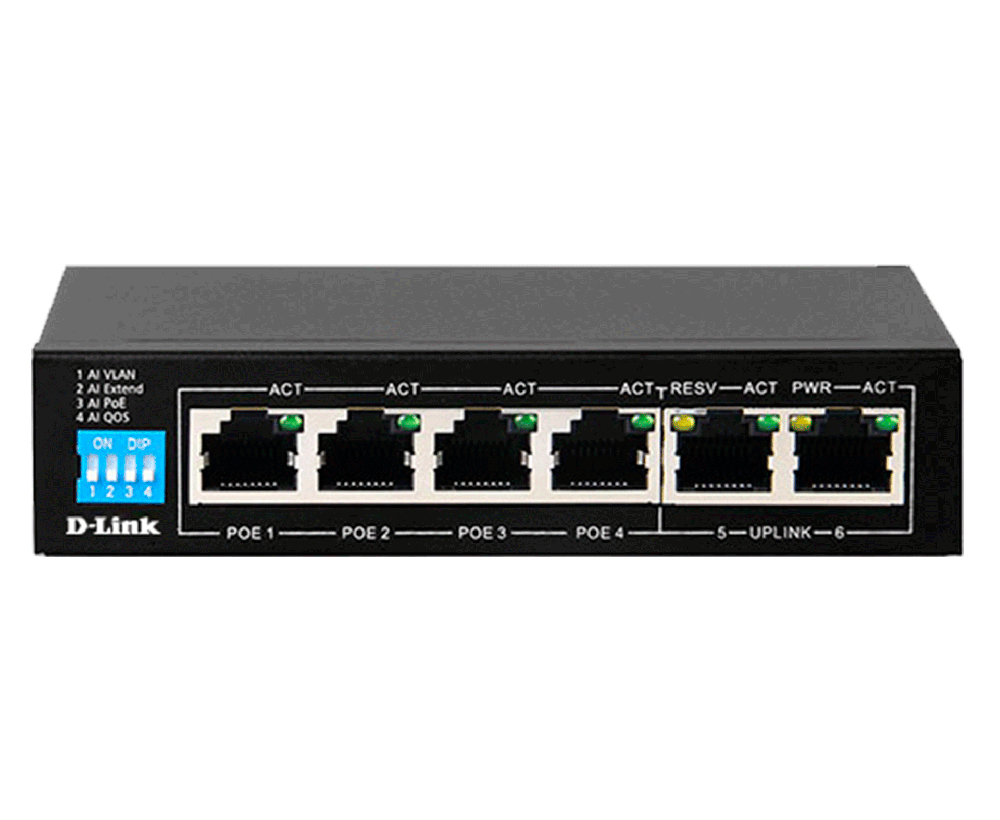

DES-F1006P-E network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Model DES-F1006P-EEAN 201700000554
34 specifications
- Weight750 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity6
- 10G supportNo
- Forwarding rate0.148 Mpps
Overview
- Weight
- 750 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 6
- 10G support
- No
- Forwarding rate
- 0.148 Mpps
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-F1006P-E
- Part number
- DES-F1006P-E
- EAN / UPC
- 201700000554, 790069270130
- Also known as
- D-Link DES-F1006P-E network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
34 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 6 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e, Cat6 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Forwarding rate | 0.148 Mpps |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 52 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 15 W |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 75 mm |
| Height | 27 mm |
| Weight | 750 g |
