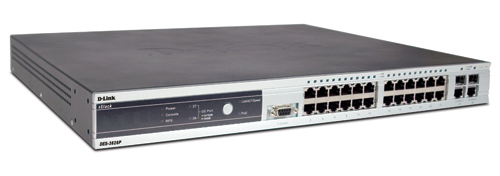

D-Link DES-3828P network switch

D-Link DES-3828P network switch

Model DES-3828PEAN 790069276743

23 specifications
  • Speed1 Gbit/s
  • Weight6.02 kg
  • Basic switching RJ-45 Ethernet ports quantity24
  • Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
  • MAC address table16000 entries
  • SafetyCSA International, CB Report
See all specifications

Overview

Speed
1 Gbit/s
Weight
6.02 kg
Basic switching RJ-45 Ethernet ports quantity
24
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
MAC address table
16000 entries
Safety
CSA International, CB Report
Brand
D-Link
Model
DES-3828P
Part number
DES-3828P
EAN / UPC
790069276743, 790069276750, 790069276774, 7900692767508
Also known as
D-Link DES-3828P network switch

Specifications

23 specifications in 9 groups

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24

Network

Networking standardsIEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T

Data transmission

MAC address table16000 entries
Switching capacity12.8 Gbit/s
Maximum data transfer rate1 Gbit/s
Packet buffer memory32 MB

Protocols

Data link protocolsEthernet, Fast Ethernet, Gigabit Ethernet
Supported network protocolsRFC 1157 SNMP, RFC 1112/2236 IGMPv1/2 IGMPv3, RFC 1757/2021/2819 RMON (4 Groups), RFC 1493 Bridge MIB, RFC 1213 MIB II, RFC 793 TCP, RFC 826 ARP, RFC 854 Telnet, and DiffServ, RFC 1724 RIP v1/2, RFC 1850 OSPF*, DVMRP, RFC 2934 PIM-DM, PIM-SM*, RFC 2932 Multicast Routing, RFC 2787 VRRP, RFC 2096 IP F

Design

SafetyCSA International, CB Report

Power

Power consumption (typical)395.2 W

Other features

Management platformWeb/CLI/SNMP
Data transfer rate1000 Mbit/s
Dimensions (WxDxH)309 x 440.9 x 43.9 mm
Packet transfer speed14880pps (10M), 148800pps (100M), 1488000pps (1000M)
Power requirements100 - 240 VAC, 50/60 Hz
Electromagnetic emissionsCE Class A, FCC Class A, VCCI Class A, C-Tick Class A
I/O ports(24) 10/100 Mbps Ports, (2) Combo SFP/1000BASE-T Ports, & (2) Built-in 1000BASE-T Uplinks & 802.3af PoE

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 85%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Weight6.02 kg
