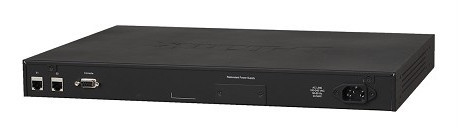

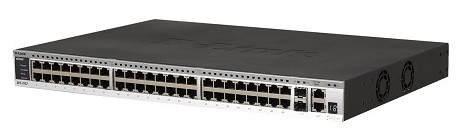

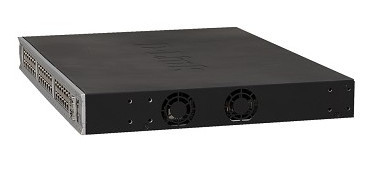

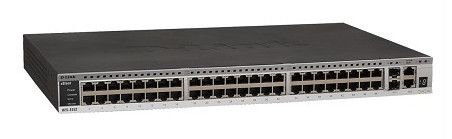

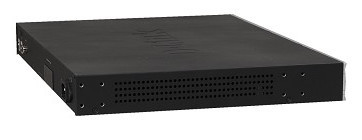

D-Link DES-3552 network switch Managed L2 Black
Model DES-3552EAN 7900693219242
53 specifications
- Speed17.6 Gbit/s
- ConnectivityWired
- Noise35.1 dB
- Weight4.09 kg
- ColourBlack
- Switch typeManaged
Overview
- Speed
- 17.6 Gbit/s
- Connectivity
- Wired
- Noise
- 35.1 dB
- Weight
- 4.09 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-3552
- Part number
- DES-3552
- EAN / UPC
- 7900693219242, 790069321917, 790069321924, 3609740148279 +3 more
- Also known as
- D-Link DES-3552 network switch Managed L2 Black
Specifications
53 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 17.6 Gbit/s |
| Maximum data transfer rate | 17.6 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet Server/Client, TFTP, SNMP v1/v2c/v3, RMON v1/v2, LLDP, PPPoE, NTP/SNTP |
| Supported network protocols | IGMP v1, IGMP v2, IGMP v3 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Safety | CB, UL / cUL |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft |
| Noise level | 35.1 dB |
| Mean time between failures (MTBF) | 380412 h |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 33.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 441 x 310 x 44 mm |
| Connectivity technology | Wired |
| Authentication method | RADIUS, TACACS+ |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 13.1 mpps |
| Power requirements | 100 - 240VAC, 0.8A, 50/60Hz |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | FCC Class A, CE Class A, C-Tick, VCCI |
| Weight (imperial) | 4.09 kg (9.01 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 112.87 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.09 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
