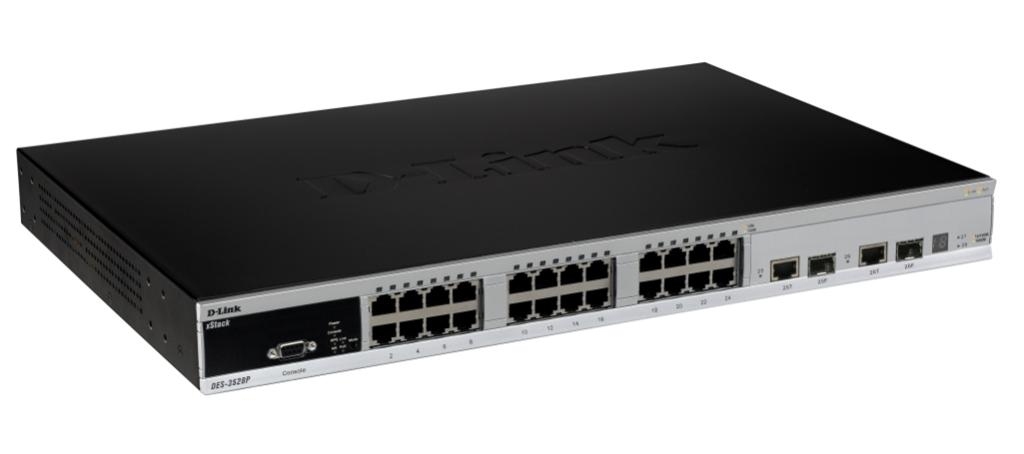

D-Link DES-3528P network switch Managed L2+ Power over Ethernet (PoE) Black
Model DES-3528PEAN 790069322082
52 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Noise48.2 dB
- Weight5.42 kg
- ColourBlack
- Switch typeManaged
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 48.2 dB
- Weight
- 5.42 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-3528P
- Part number
- DES-3528P
- EAN / UPC
- 790069322082, 790069322099, 790069322136
- Also known as
- D-Link DES-3528P network switch Managed L2+ Power over Ethernet (PoE) Black
Specifications
52 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Console port | RS-232 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 12.8 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, Telnet, TFTP Client, ZModem, SNMP v1/v2c/v3, SNMP Traps, RMON v1, RMON v2, sFlow, LLDP, BootP, PPPoE, NTP/SNTP |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Safety | CB, UL / cUL |
Performance
| Specification | Value |
|---|---|
| Noise level | 48.2 dB |
| Mean time between failures (MTBF) | 345226 h |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Input current | 6.3 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 505.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 441 x 310 x 44 mm |
| Connectivity technology | Wired |
| Authentication method | RADIUS, TACACS+ |
| Input frequency | 50/60 Hz |
| Packet transfer speed | 9.5 Mpps |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | FCC Class A, CE Class A, C-Tick, VCCI |
| Weight (imperial) | 5.42 kg (11.9 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1723 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.42 kg |
