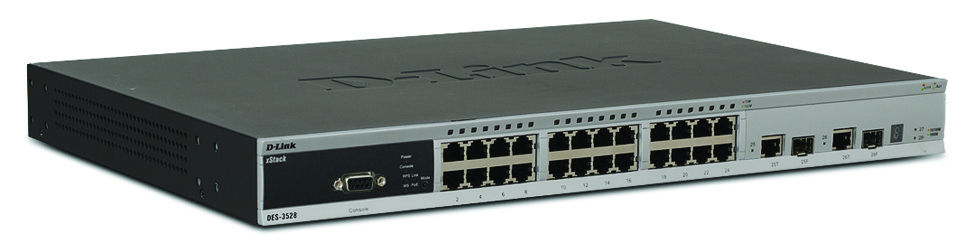

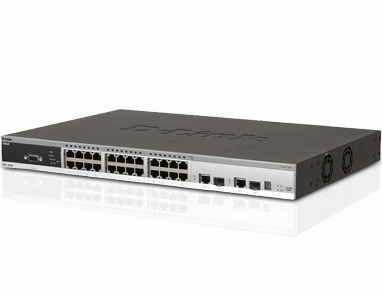

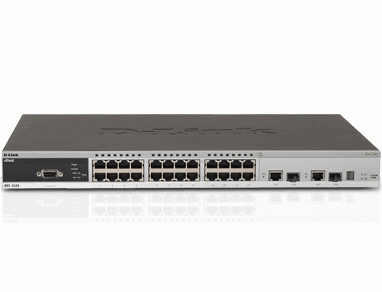

D-Link DES-3528 network switch Managed Silver
Model DES-3528Part no. DES-3528DCEAN 7900693143462
39 specifications
- Speed12.8 Gbit/s
- ConnectivityWired
- Weight2.5 kg
- ColourSilver
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Speed
- 12.8 Gbit/s
- Connectivity
- Wired
- Weight
- 2.5 kg
- Colour
- Silver
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-3528
- Part numbers
- DES-3528DC, DES-3528
- EAN / UPC
- 7900693143462, 790069314346, 790069314353, 790069314360 +1 more
- Also known as
- D-Link DES-3528 network switch Managed Silver
Specifications
39 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 12.8 Gbit/s |
| Maximum data transfer rate | 12.8 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Silver |
| Safety | CSA & CB |
Power
| Specification | Value |
|---|---|
| Power source | AC - DC |
| Redundant power supply (RPS) support | Yes |
| Input current | 1.5 A |
| Power consumption (typical) | 20.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 441 x 210 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Power requirements | 100 - 240VAC, 1.5A, 50/60Hz |
| Electromagnetic emissions | FCC, C-Tick, VCCI Class A |
| Weight (imperial) | 2.49 kg (5.5 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
