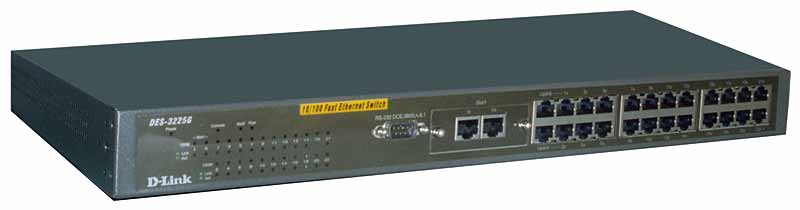

D-Link DES-3225G network switch Managed Fast Ethernet (10/100) 1U Black
Model DES-3225GEAN 790069221620
39 specifications
- Type1U
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- Fiber ethernet cabling technology1000BASE‑SX, 100BASE-FX
Overview
- Type
- 1U
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE‑SX, 100BASE-FX
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-3225G
- Part number
- DES-3225G
- EAN / UPC
- 790069221620
- Also known as
- D-Link DES-3225G network switch Managed Fast Ethernet (10/100) 1U Black
Specifications
39 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| MIB support | MIB-II RFC 1213, Bridge MIB RFC 1493, RMON MIB RFC1757, D-Link Enterprise MIBs |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Fiber ports quantity | 3 |
| Fiber optic connector | SC |
| Console port | RS-232 |
| ExpressCard slot | No |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑SX, 100BASE-FX |
| Fiber type | Multi-mode |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 12000 entries |
| Store-and-forward | Yes |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, TFTP, RMON Group 1, 2, 3, 9 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Safety | UL1950, CSA950, En60950 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 100 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 367 mm |
| Height | 44 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A CE Mark VCCI Class A C-Tick BSMI Class A |
