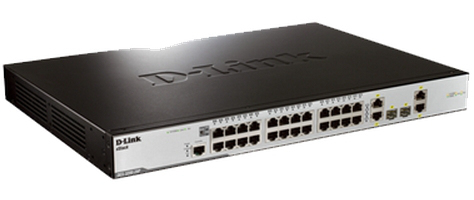

D-Link DES-3200-52P/E network switch Managed L2 Power over Ethernet (PoE) 1U

D-Link DES-3200-52P/E network switch Managed L2 Power over Ethernet (PoE) 1U

Model DES-3200-52P/E

49 specifications
  • Memory128 MB
  • Type1U
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity48
  • 10G supportNo
  • MAC address table16000 entries
See all specifications

Overview

Memory
128 MB
Type
1U
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
48
10G support
No
MAC address table
16000 entries
Brand
D-Link
Model
DES-3200-52P/E
Part number
DES-3200-52P/E
Also known as
D-Link DES-3200-52P/E network switch Managed L2 Power over Ethernet (PoE) 1U

Specifications

49 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportRFC 1065, 1066, 1155, 1156, 2578, RFC 1157, 2571-2576 SNMP, RFC 1212 Concise MIB Definitions, RFC 1213 MIB II, RFC 1215 MIB Traps Convention, RFC 1398, 1643, 1650, 2358, 2665 Ether-like, RFC 1493 Bridge, RFC 1757, 2819 RMON, RFC 1907 SNMPv2, RFC 2021 RMONv2, RFC 2233, 2863 IF, RFC 2618 Radius Authen

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Gigabit Ethernet (copper) ports quantity2
SFP module slots quantity4
SFP/SFP+ slots quantity2
Console portRJ-45

Network

Networking standardsIEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T
Port mirroringYes
Broadcast storm controlYes
Flow control supportYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table16000 entries
Switching capacity17.6 Gbit/s
Number of static routes512
Jumbo frames supportYes
Packet buffer memory1.5 MB

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
Security algorithms802.1x RADIUS

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP v1/v2c/v3 & RMON v1/v2, SNTP, LLDP, SMTP, ICMPv6

Design

Rack mountingYes
StackableYes
Form factor1U
LED indicatorsYes
Number of fans1 fan(s)
SafetyCE LVD, UL/cUL, CB

Performance

Internal memory128 MB
Mean time between failures (MTBF)189396 h

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)471.6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width441 mm
Depth308 mm
Height44 mm

Certificates

CertificationMEF 21, IPv6, FCC A, CE A, VCCI A, IC, C-Tick
