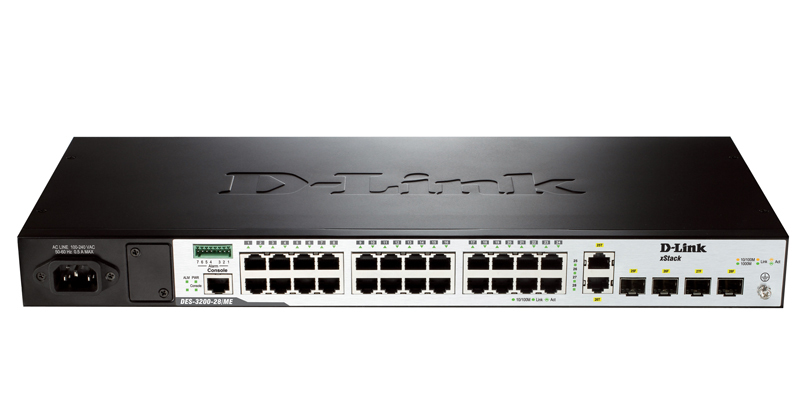

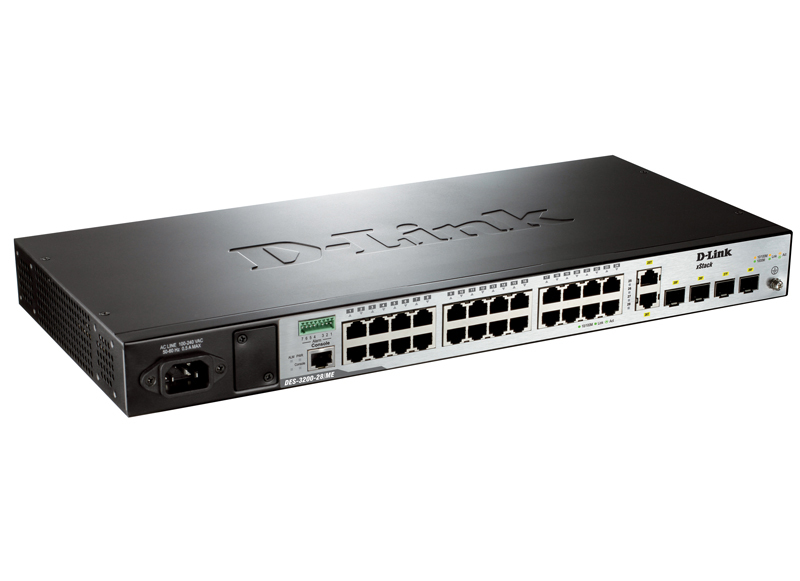

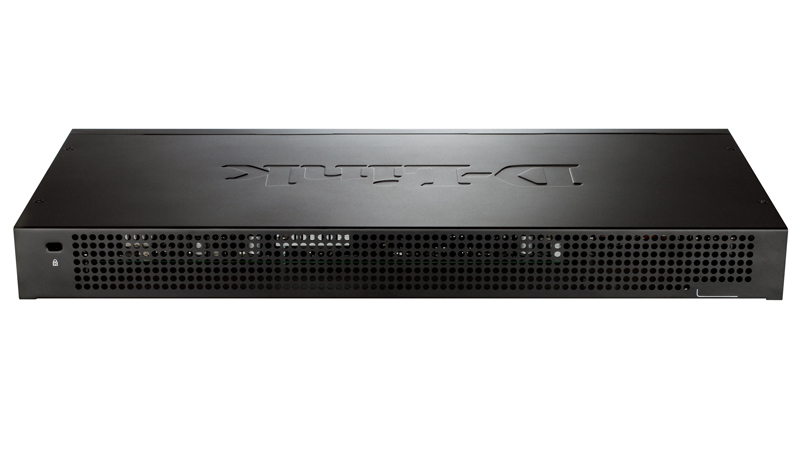

D-Link DES-3200-28/ME/C1 network switch Managed L2 Fast Ethernet (10/100) 1U Black

D-Link DES-3200-28/ME/C1 network switch Managed L2 Fast Ethernet (10/100) 1U Black

Model DES-3200-28/ME/C1

56 specifications
  • Memory128 MB
  • Noise0 dB
  • Type1U
  • Weight2.29 kg
  • ColourBlack
  • Switch typeManaged
See all specifications

Overview

Memory
128 MB
Noise
0 dB
Type
1U
Weight
2.29 kg
Colour
Black
Switch type
Managed
Brand
D-Link
Model
DES-3200-28/ME/C1
Part number
DES-3200-28/ME/C1
Also known as
D-Link DES-3200-28/ME/C1 network switch Managed L2 Fast Ethernet (10/100) 1U Black

Specifications

56 specifications in 13 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
MIB supportRFC 1065, 1066, 1155, 1156, 2578 MIB Structure, RFC 1212 Concise MIB Definitions, RFC 1213 MIB II, RFC 1215 MIB Traps Convention, RFC 1493, 4188 Bridge MIB, RFC 1157, 2571-2576 SNMP MIB, RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB, RFC 271,1757, 2819 RMON MIB, RFC 2465 IPv6 MIB, RFC 2466 ICMPv6

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
SFP module slots quantity4
Console portRJ-45

Network

Networking standardsIEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX
Port mirroringYes
Flow control supportYes
Head-of-line (HOL) blockingYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs4000

Data transmission

MAC address table16000 entries
Switching capacity12.8 Gbit/s
Throughput9.5 Mpps
Jumbo frames supportYes

Security

DHCP featuresDHCP server, DHCP client
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
SSH/SSL supportYes
Security algorithms802.1x RADIUS
Static port securityYes

Multicast features

Multicast supportYes

Protocols

Management protocolsSSH, SSL, SNTP, DHCP, NLB, LLDP, CFM
Switching protocols802.3ad, ERPS
Supported network protocolsIPv4/v6, TFTP, TCP/UDP, DSCP, TOS, SNTP, LLDP, NLB, Telnet, SNMP v1/v2c/v3, RMON, LLDP-MED

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourBlack
LED indicatorsActivity, Link, Power, Yes
Cable managementYes
SafetyCE, LVD, UL/cUL, CB, BSMI

Performance

Memory typeDDR2-SDRAM
Internal memory128 MB
Noise level0 dB
Mean time between failures (MTBF)607515 h

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)20.37 W

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width441 mm
Depth210 mm
Height44 mm
Weight2.29 kg

Certificates

CertificationFCC Class A, CE Class A, VCCI Class A, IC, C-Tick, BSMI, IPv6 Ready Logo Phase 2
