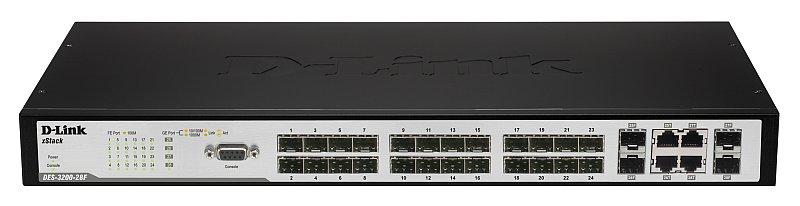

D-Link DES-3200-28 network switch Managed L2 Power over Ethernet (PoE)
Model DES-3200-28Part no. DES-3200-28PEAN 7900693699648
54 specifications
- Memory128 MB
- Speed1 Gbit/s
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- MAC address table8000 entries
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-3200-28
- Part numbers
- DES-3200-28P, DES-3200-28
- EAN / UPC
- 7900693699648, 151903028773, 790069326295, 790069326301 +12 more
- Also known as
- D-Link DES-3200-28 network switch Managed L2 Power over Ethernet (PoE)
Specifications
54 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | RMONv1/v2, MIB II, Bridge MIB, SNMPv2 MIB, Ether-like MIB, 802.1p MIB, IF MIB, Client MIB, Ping MIB, Private MIBBridge |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 24 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 255 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 12.8 Gbit/s |
| Number of queues | 4 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 384 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMPv1/v2/v3, SNMP v1/v2c/v3 |
| Supported network protocols | IPv4/v6, TFTP, TCP/UDP, DSCP, TOS, SMTP, SNTP, LLDP, NLB, Telnet |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| LED indicators | LAN, Link, Power, Yes |
| Number of fans | 1 fan(s) |
| Safety | UL/cUL, CB |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 46.7 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 441 x 207 x 44 mm |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 9.5 Mpps |
| Power LED | Yes |
| Wi-Fi | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 32 - 104 °F |
| Heat dissipation | 159.32 BTU/h |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, VCCI |
