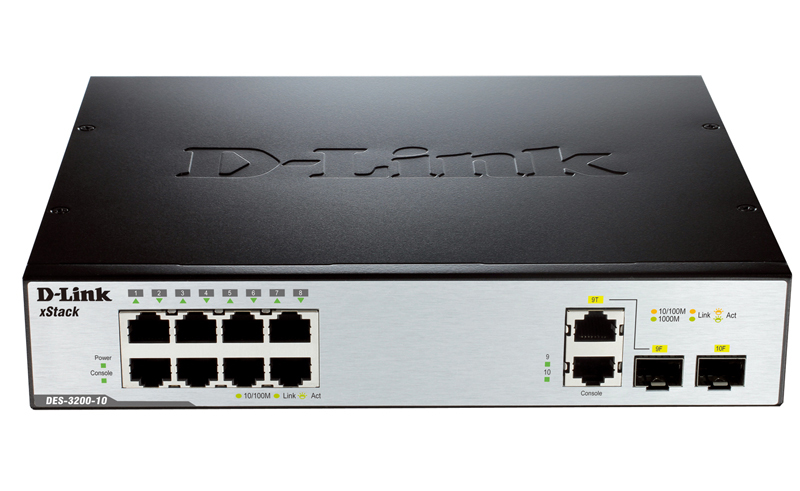

D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver
Model DES-3200-10/TEAN 4582217052738
45 specifications
- Memory128 MB
- Weight1.2 kg
- ColourBlack, Silver
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Overview
- Memory
- 128 MB
- Weight
- 1.2 kg
- Colour
- Black, Silver
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-3200-10/T
- Part number
- DES-3200-10/T
- EAN / UPC
- 4582217052738
- Also known as
- D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver
Specifications
45 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 1 |
| SFP module slots quantity | 1 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 5.6 Gbit/s |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2c/v3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black, Silver |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 13.54 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 228.5 mm |
| Depth | 195 mm |
| Height | 44 mm |
| Weight | 1.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE/FCC/VCCI/C-Tick Class A |
Reviews & ratings
What people say
D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver
No reviews yet
Be the first to tell others how D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver

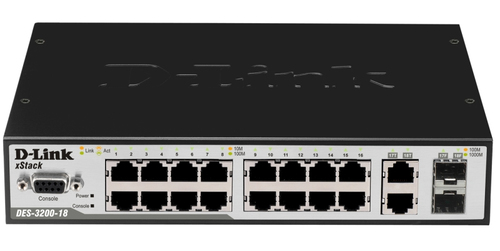

All network switch comparisons- D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver vsD-Link DES-3200-18/T network switch Managed L2 Fast Ethernet (10/100) 1U Black, SilverCompare specs
- D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver vsD-Link DES-3200-26/T network switch Managed L2 Fast Ethernet (10/100) 1U Black, SilverCompare specs
- D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver vsD-Link DES-1008I/RM network switch Unmanaged Fast Ethernet (10/100) GreyCompare specs
- D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver vsD-Link 5-Port Unmanaged Industrial Switch withCompare specs

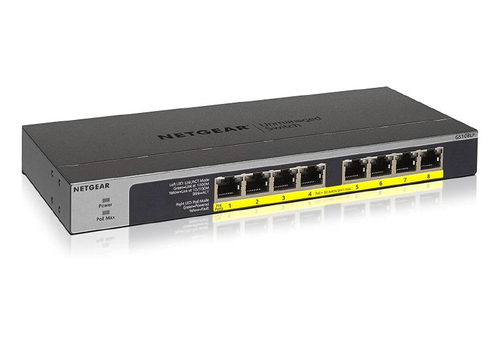

- D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver vsNETGEAR 8-PORT GIGABIT ETHERNET POE+ UNMANAGED SWITCH WITH 60W POE BUDGET (GS108Compare specs

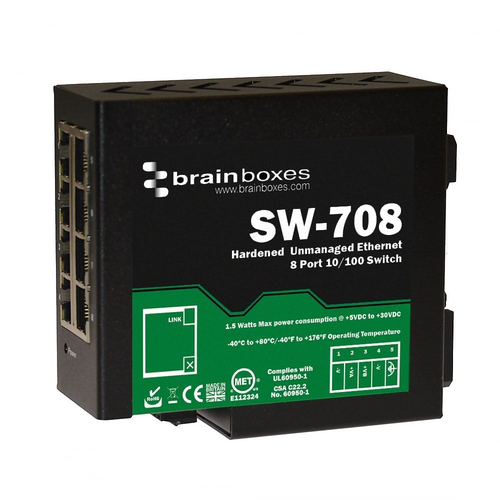

- D-Link DES-3200-10/T network switch Managed L2 Fast Ethernet (10/100) Black, Silver vsBrainboxes Hardened Industrial 8 Port 10/100 Ethernet SwitchCompare specs
