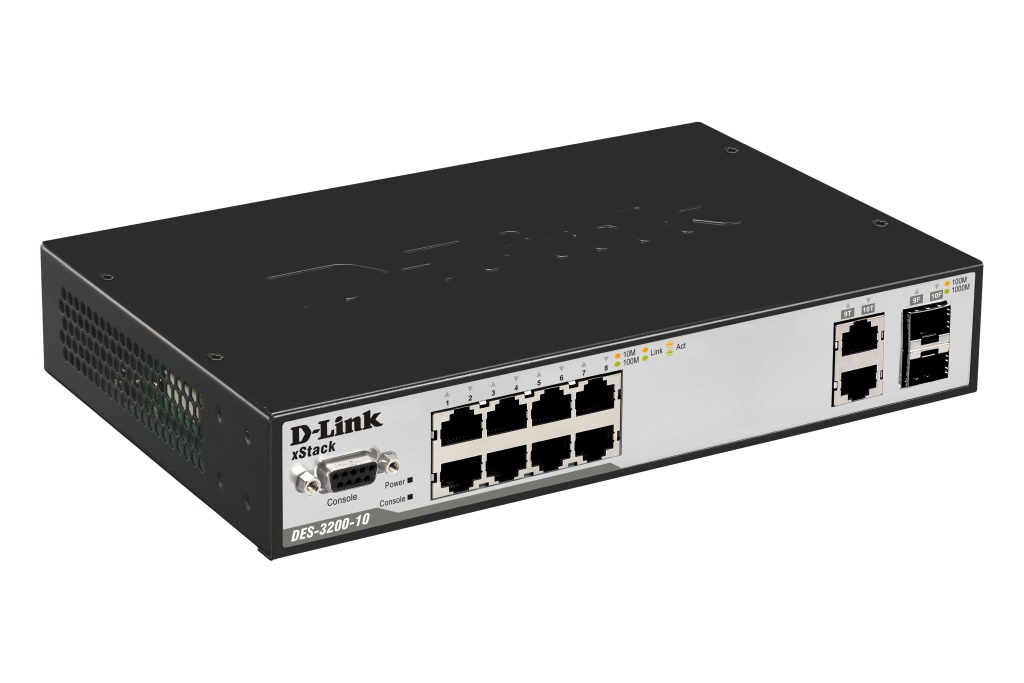

D-Link DES-3200-10 network switch Managed L2 1U Black
Model DES-3200-10EAN 790069327926
46 specifications
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Noise0 dB
- Type1U
- ColourBlack
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 0 dB
- Type
- 1U
- Colour
- Black
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-3200-10
- Part number
- DES-3200-10
- EAN / UPC
- 790069327926, 790069327933
- Also known as
- D-Link DES-3200-10 network switch Managed L2 1U Black
Specifications
46 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Console port | RS-232 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 255 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 5.6 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 384 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Noise level | 0 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 12.7 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 228.5 x 180 x 44 mm |
| Connectivity technology | Wired |
| Bandwidth | 4 Gbit/s |
| Input frequency | 50/60 Hz |
| Power requirements | 100 - 240 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
What people say
Reviews & ratings
D-Link DES-3200-10 network switch Managed L2 1U Black
No reviews yet
Be the first to tell others how D-Link DES-3200-10 network switch Managed L2 1U Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link DES-3200-10 network switch Managed L2 1U Black
All network switch comparisons- D-Link DES-3200-10 network switch Managed L2 1U Black vsD-Link DES-3200-18 network switch Managed L2 1U BlackCompare specs
- D-Link DES-3200-10 network switch Managed L2 1U Black vsD-Link DGS-6604-SK-48P network switch Managed L3 Power over Ethernet (PoE) BlackCompare specs
- D-Link DES-3200-10 network switch Managed L2 1U Black vsD-Link 8-Port Gigabit PoE Unmanaged Desktop SwitchCompare specs
- D-Link DES-3200-10 network switch Managed L2 1U Black vsD-Link DGS-1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs
- D-Link DES-3200-10 network switch Managed L2 1U Black vsLevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoECompare specs

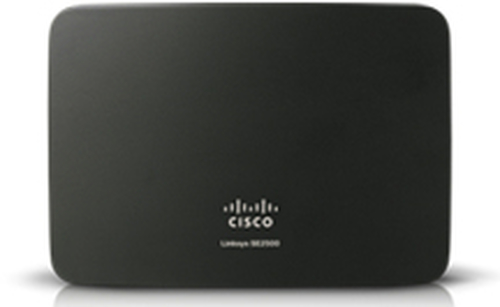

- D-Link DES-3200-10 network switch Managed L2 1U Black vsLinksys SE2500-EU network switch Unmanaged BlackCompare specs
- D-Link DES-3200-10 network switch Managed L2 1U Black vsNETGEAR GS748TPS L3 Power over Ethernet (PoE) GreyCompare specs

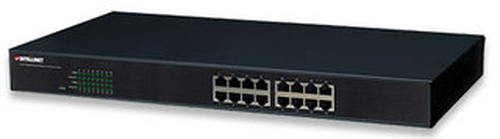

- D-Link DES-3200-10 network switch Managed L2 1U Black vsIntellinet 524087 network switch 1U BlackCompare specs
