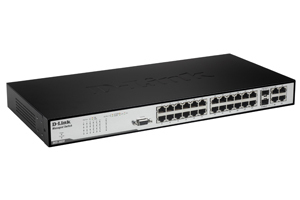

D-Link DES-3028 network switch Managed L2
Model DES-3028Part no. DES-3028/AEAN 7900693011488
36 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight2.36 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 2.36 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-3028
- Part numbers
- DES-3028/A, DES-3028
- EAN / UPC
- 7900693011488, 790069301148, 790069301155, 790069305375 +1 more
- Also known as
- D-Link DES-3028 network switch Managed L2
Specifications
36 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | RFC: 1213,1493,1907,1757,2819,1643,2358,2665,2674,2233,2863,2618,2620,2925 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 12.8 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | cUL, LVD |
Performance
| Specification | Value |
|---|---|
| Flash memory | 8 MB |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 25 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 441 x 207 x 44 mm |
| Connectivity technology | Wired |
| Bandwidth | 0.1 Gbit/s |
| Authentication method | RADIUS |
| Packet transfer speed | 9.5Mbps |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 0 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.36 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE, C-Tick, VCCI Class A |
