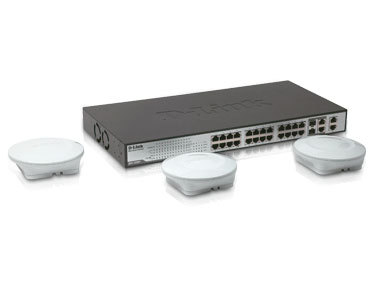

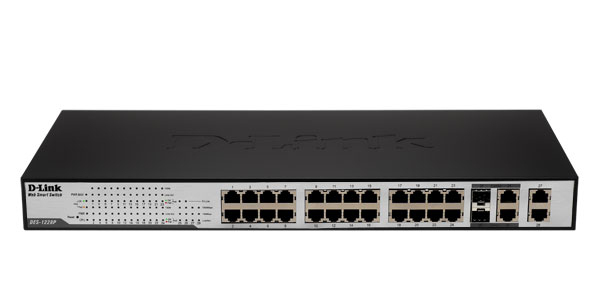

D-Link DES-1228P/A network switch Managed Power over Ethernet (PoE)
Model DES-1228P/A
35 specifications
- Memory8 MB
- Speed1 Gbit/s
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table256 entries
Overview
- Memory
- 8 MB
- Speed
- 1 Gbit/s
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 256 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1228P/A
- Part number
- DES-1228P/A
- Also known as
- D-Link DES-1228P/A network switch Managed Power over Ethernet (PoE)
Specifications
35 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 256 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 12.8 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
Performance
| Specification | Value |
|---|---|
| Internal memory | 8 MB |
| Flash memory | 2 MB |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 222 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 140 x 44 mm |
| Input frequency | 50/60 Hz |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 757.51 BTU/h |
