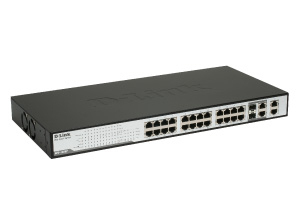

D-Link DES-1228P network switch Managed Power over Ethernet (PoE)
Model DES-1228PEAN 7900692987142
24 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight3.2 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Port mirroringYes
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 3.2 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Port mirroring
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1228P
- Part number
- DES-1228P
- EAN / UPC
- 7900692987142, 790069298707, 790069298714, 790069298721 +2 more
- Also known as
- D-Link DES-1228P network switch Managed Power over Ethernet (PoE)
Specifications
24 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 0.1 Gbit/s |
Security
| Specification | Value |
|---|---|
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, HTTP |
| Switching protocols | Ethernet |
| Data link protocols | Ethernet, Fast Ethernet |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 222 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 209 x 44 mm |
| Connectivity technology | Wired |
| Power requirements | AC 120/230 V, 50/60 Hz |
| I/O ports | 24 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 4 x network host - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC Class A certified, VCCI, C-Tick, cUL |
