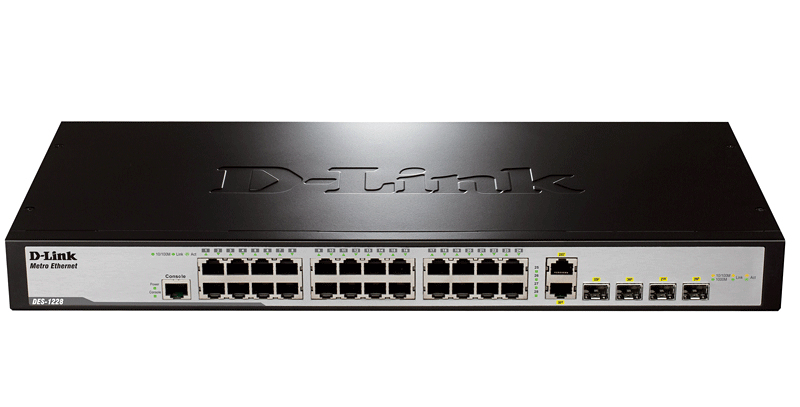

D-Link DES-1228/ME network switch L2 Black

D-Link DES-1228/ME network switch L2 Black

Model DES-1228/ME

38 specifications

ColourBlack
Switch layerL2
Basic switching RJ-45 Ethernet ports quantity24
Port mirroringYes
MAC address table8000 entries
Flash memory8 MB

See all specifications

Overview

Colour: Black
Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 24
Port mirroring: Yes
MAC address table: 8000 entries
Flash memory: 8 MB

Brand: D-Link
Category: Network Switch
Model: DES-1228/ME
Part number: DES-1228/ME
Also known as: D-Link DES-1228/ME network switch L2 Black

Specifications

38 specifications in 11 groups

Management features

Specification	Value
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes
MIB support	y

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
SFP module slots quantity	4

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
Port mirroring	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
VLAN support	Yes

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	12.8 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	0.512 MB

Security

Specification	Value
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Product colour	Black
LED indicators	Yes
Safety	cUL, LVD

Performance

Specification	Value
Flash memory	8 MB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	248271 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	18.8 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Heat dissipation	64.1 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	207 mm
Height	44 mm
