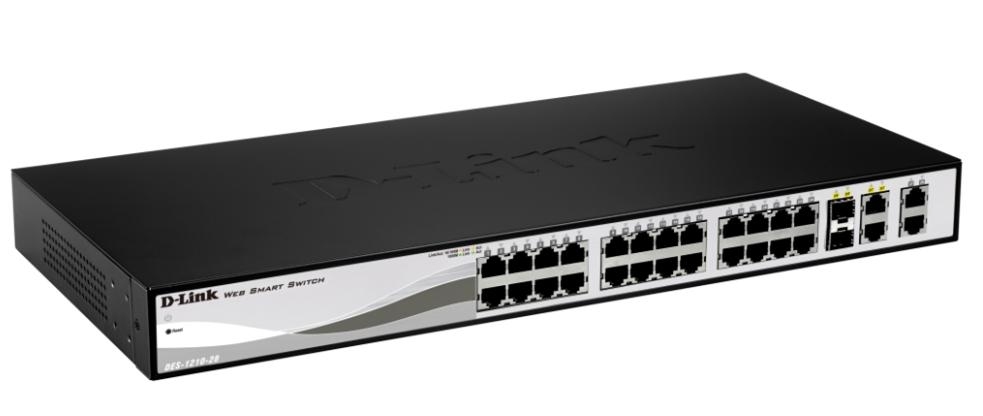

D-Link DES-1210-28 network switch Managed L2 1U Black
Model DES-1210-28Part no. DES-1210-28/AEAN 5054484120223
76 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Noise0 dB
- Type1U
- Weight2.6 kg
- ColourBlack
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Noise
- 0 dB
- Type
- 1U
- Weight
- 2.6 kg
- Colour
- Black
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1210-28
- Part numbers
- DES-1210-28/A, DES-1210-28
- EAN / UPC
- 5054484120223, 132017935317, 763615839532, 790069327735 +9 more
- Also known as
- D-Link DES-1210-28 network switch Managed L2 1U Black
Specifications
76 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | MIB II, Bridge MIB, SNMPv2 MIB, MIB Traps Convention, Interface Group MIB, Private MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 12.8 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| Safety | cUL, LVD |
Performance
| Specification | Value |
|---|---|
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 419467 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 17.6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Packet transfer speed | 9.5 Mpps |
| Performance management | Telnet, Telnet Server, TFTP Client, SNMP v1/v2/v3, SNMP Trap |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | FCC Class A, CE Class A, VCCI Class A, C-Tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 60.05 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 2.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 314 mm |
| Package depth | 394 mm |
| Package height | 89 mm |
| Package weight | 2.97 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 255.2 kg |
| Pallet gross weight (sea) | 410.7 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 118.2 cm |
| Pallet height (sea) | 188 cm |
| Products per pallet (air) | 72 pc(s) |
| Products per pallet (sea) | 120 pc(s) |
| Products per shipping (inner) case | 3 pc(s) |
| Shipping (inner) case gross weight | 9.72 kg |
| Shipping (inner) case height | 34.9 cm |
| Shipping (inner) case length | 41.6 cm |
| Shipping (inner) case net weight | 8.92 kg |
| Shipping (inner) case width | 29.4 cm |
