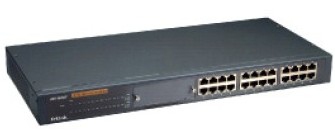

D-Link DES-1024R+ Unmanaged Black
Model DES-1024R+Part no. DES-1024RPLUS
36 specifications
- Weight2.7 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- Fiber ethernet cabling technology100BASE-FX
Overview
- Weight
- 2.7 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Fiber ethernet cabling technology
- 100BASE-FX
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1024R+
- Part number
- DES-1024RPLUS
- Also known as
- D-Link DES-1024R+ Unmanaged Black
Specifications
36 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-FX |
| Transmission distance (max) | 100 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Store-and-forward | Yes |
| Packet buffer memory | 0.256 MB |
Protocols
| Specification | Value |
|---|---|
| Switching protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Link |
| Number of fans | 1 fan(s) |
| Safety | UL1950, CSA950, EN60950 |
Performance
| Specification | Value |
|---|---|
| Memory type | RAM |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Number of power supply units | 1 |
| Input voltage | 100 - 240, 12 V |
| Power consumption (typical) | 39 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 441 x 207 x 44 mm |
| Input frequency | 50/60 Hz |
| Networking features | Fast Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 32 - 122 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC A, CE A, C-Tick, VCCI A, BSMI A |
