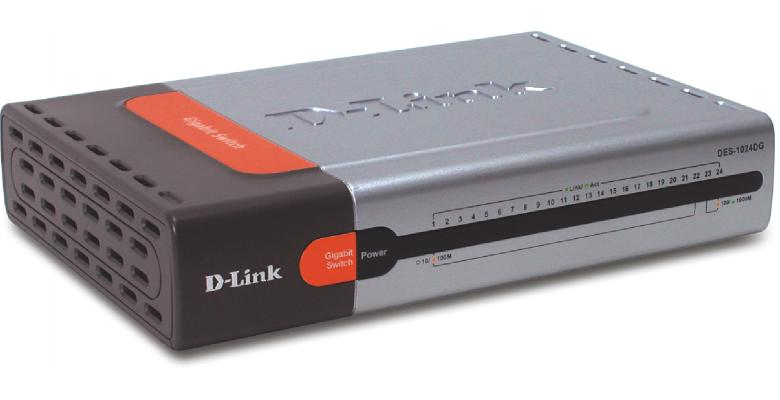

D-Link DES-1024DG network switch Unmanaged Fast Ethernet (10/100) Grey, Orange, Silver
Model DES-1024DG
31 specifications
- ColourGrey, Orange, Silver
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
- Switching protocolsCSMA/CD
Overview
- Colour
- Grey, Orange, Silver
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Switching protocols
- CSMA/CD
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1024DG
- Part number
- DES-1024DG
- Also known as
- D-Link DES-1024DG network switch Unmanaged Fast Ethernet (10/100) Grey, Orange, Silver
Specifications
31 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 22 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 8.4 Gbit/s |
| Store-and-forward | Yes |
Protocols
| Specification | Value |
|---|---|
| Switching protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Grey, Orange, Silver |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 5 V |
| Input current | 3 A |
| Power consumption (typical) | 10.55 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, VCCI |
