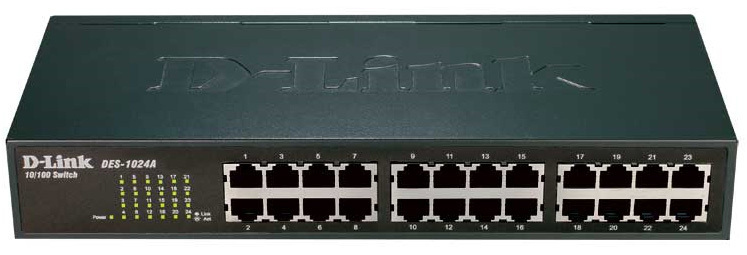

D-Link DES-1024A network switch Black
Model DES-1024AEAN 790069335907
29 specifications
- Speed0.2 Gbit/s
- ConnectivityWired
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
Overview
- Speed
- 0.2 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1024A
- Part number
- DES-1024A
- EAN / UPC
- 790069335907, 790069390678, 790069408243
- Also known as
- D-Link DES-1024A network switch Black
Specifications
29 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10 Mbps, 20Mbps, 100Mbps, 200Mbps |
| Switching capacity | 4.8 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.2 Gbit/s |
| Packet buffer memory | 0.32 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | LAN, Link, Power |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 626992 h |
Power
| Specification | Value |
|---|---|

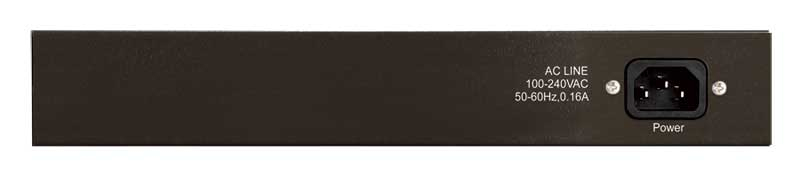

| Input voltage | 100 - 240 V |
| Power consumption (typical) | 6.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 280 x 126 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50 - 60 Hz |
| Networking features | Fast Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 20.78 BTU/h |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, ICES-003, CE, cUL, LVD |
What people say
Reviews & ratings
D-Link DES-1024A network switch Black
No reviews yet
Be the first to tell others how D-Link DES-1024A network switch Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link DES-1024A network switch Black
All network switch comparisons- D-Link DES-1024A network switch Black vsD-Link DGS-3620-28TC Managed L3 BlackCompare specs
- D-Link DES-1024A network switch Black vsD-Link DGS-3620-28SC Managed L3 BlackCompare specs
- D-Link DES-1024A network switch Black vsD-Link DGS-3420-28SC network switch Managed L2 BlackCompare specs
- D-Link DES-1024A network switch Black vsD-Link DGS-3420-28TC network switch Managed L2+Compare specs

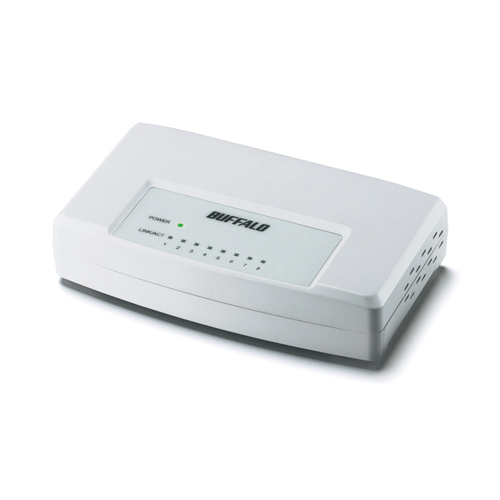

- D-Link DES-1024A network switch Black vsBuffalo LSW3-TX-8EP/W network switch WhiteCompare specs

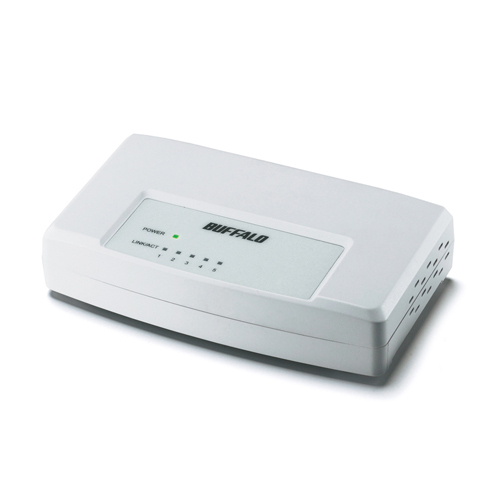

- D-Link DES-1024A network switch Black vsBuffalo LSW3-TX-5EP/W network switch WhiteCompare specs
