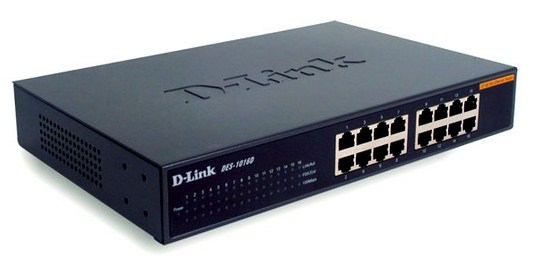

DES-1016D Unmanaged
Model DES-1016DPart no. DES-1016D/BEAN 5054629046944
34 specifications
- Memory2 MB
- Speed0.1 Gbit/s
- ConnectivityWired
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- Full duplexYes
Overview
- Memory
- 2 MB
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Full duplex
- Yes
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1016D
- Part numbers
- DES-1016D/B, DES-1016D/E
- EAN / UPC
- 5054629046944, 790069221279, 790069315640, 790069408540 +9 more
- Also known as
- D-Link DES-1016D Unmanaged
Specifications
34 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
Design
| Specification | Value |
|---|---|
| LED indicators | Power |
Performance
| Specification | Value |
|---|---|
| Internal memory | 2 MB |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 324 x 231 x 44.5 mm |
| Connectivity technology | Wired |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 282 mm |
| Package depth | 376 mm |
| Package height | 78 mm |
| Package weight | 1.82 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross weight (air) | 256.4 kg |
| Pallet gross weight (sea) | 376.1 kg |
| Pallet gross width | 110 cm |
| Pallet height (air) | 137.9 cm |
| Pallet height (sea) | 2.03 m |
| Products per pallet (air) | 120 pc(s) |
| Products per pallet (sea) | 180 pc(s) |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 9.97 kg |
| Shipping (inner) case height | 31.1 cm |
| Shipping (inner) case length | 42 cm |
| Shipping (inner) case net weight | 9.11 kg |
| Shipping (inner) case width | 39.2 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
