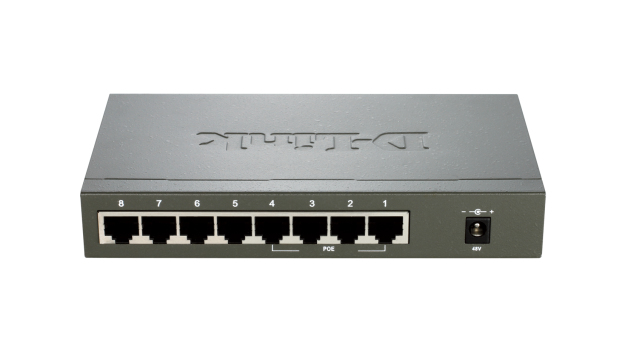

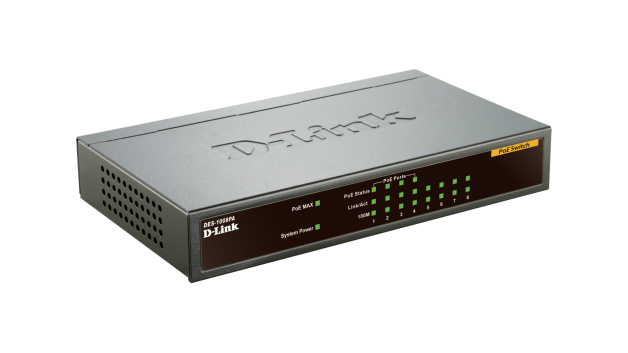

D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports
Model DES-1008PAPart no. DES-1008PA/EEAN 5712505605585
57 specifications
- Speed1 Gbit/s
- Weight454 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Speed
- 1 Gbit/s
- Weight
- 454 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1008PA
- Part numbers
- DES-1008PA/E, DES-1008PA
- EAN / UPC
- 5712505605585, 132017585147, 163120794447, 163120903160 +11 more
- Also known as
- D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports
Specifications
57 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.09 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | LAN, PoE, Power |
| Safety | LVD |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Input current | 1.25 A |
| Input voltage | 51 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 15 W |
| Total Power over Ethernet (PoE) budget | 52 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170.2 mm |
| Depth | 99.1 mm |
| Height | 27.9 mm |
| Weight | 454 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 208 mm |
| Package depth | 250 mm |
| Package height | 68 mm |
| Package weight | 1.19 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 628.5 kg |
| Pallet gross weight (sea) | 628.5 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 191.5 cm |
| Pallet height (sea) | 191.5 cm |
| Products per pallet (air) | 480 pc(s) |
| Products per pallet (sea) | 480 pc(s) |
| Products per shipping (inner) case | 10 pc(s) |
| Shipping (inner) case gross weight | 12.7 kg |
| Shipping (inner) case height | 43 cm |
| Shipping (inner) case length | 37.5 cm |
| Shipping (inner) case net weight | 11.9 kg |
| Shipping (inner) case width | 26.5 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, VCCI |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Reviews
No reviews of D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports yet. Have you used it? Tell others what you think.
Write a reviewCompare D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports

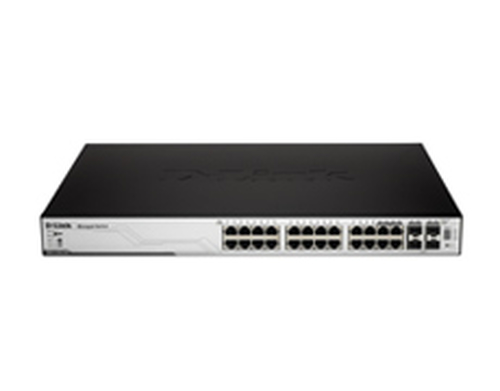

All network switch comparisons- D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports vsD-Link DGS-3100-24P network switch Managed L2 Power over Ethernet (PoE)Compare specs
- D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports vsD-Link DGS-3100-24 network switch Managed L2Compare specs

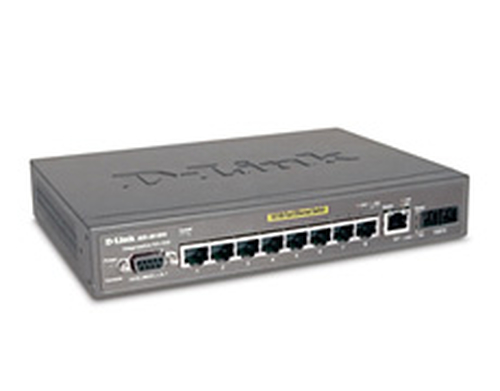

- D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports vsD-Link DES-3010GA, managed 8-Port 10/100 Switch + 1 Gigabit Port + 1 SFP SlotCompare specs
- D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports vsD-Link DES-3010FA Managed 8-Port 10/100 Switch + 1 Gigabit Port + (1) 100BASE-FX MMF PortCompare specs

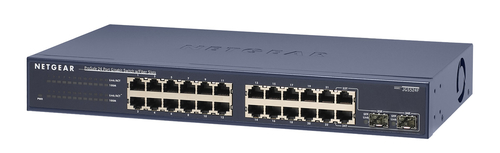

- D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports vsNETGEAR Prosafe JGS524FCompare specs

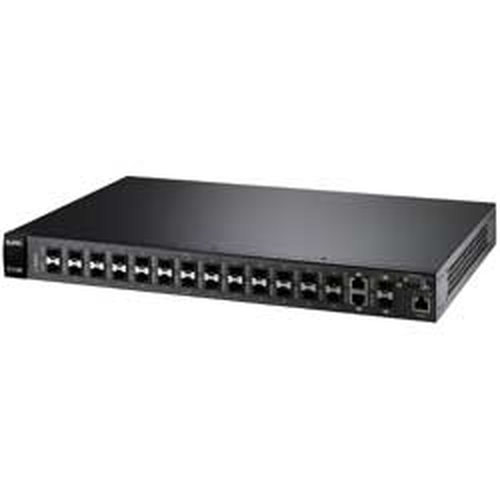

- D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports vsZyxel ES-3124F Layer 2+ Managed Fast Ethernet SwitchCompare specs

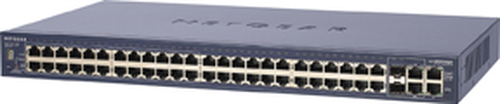

- D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports vsNETGEAR FS752TPS Managed Power over Ethernet (PoE) BlackCompare specs

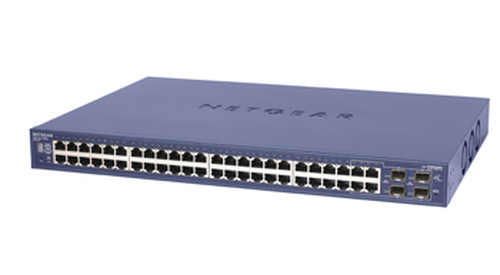

- D-Link 8-port 10/100 Desktop Switch with 4 PoE Ports vsNETGEAR GS748TS ManagedCompare specs
