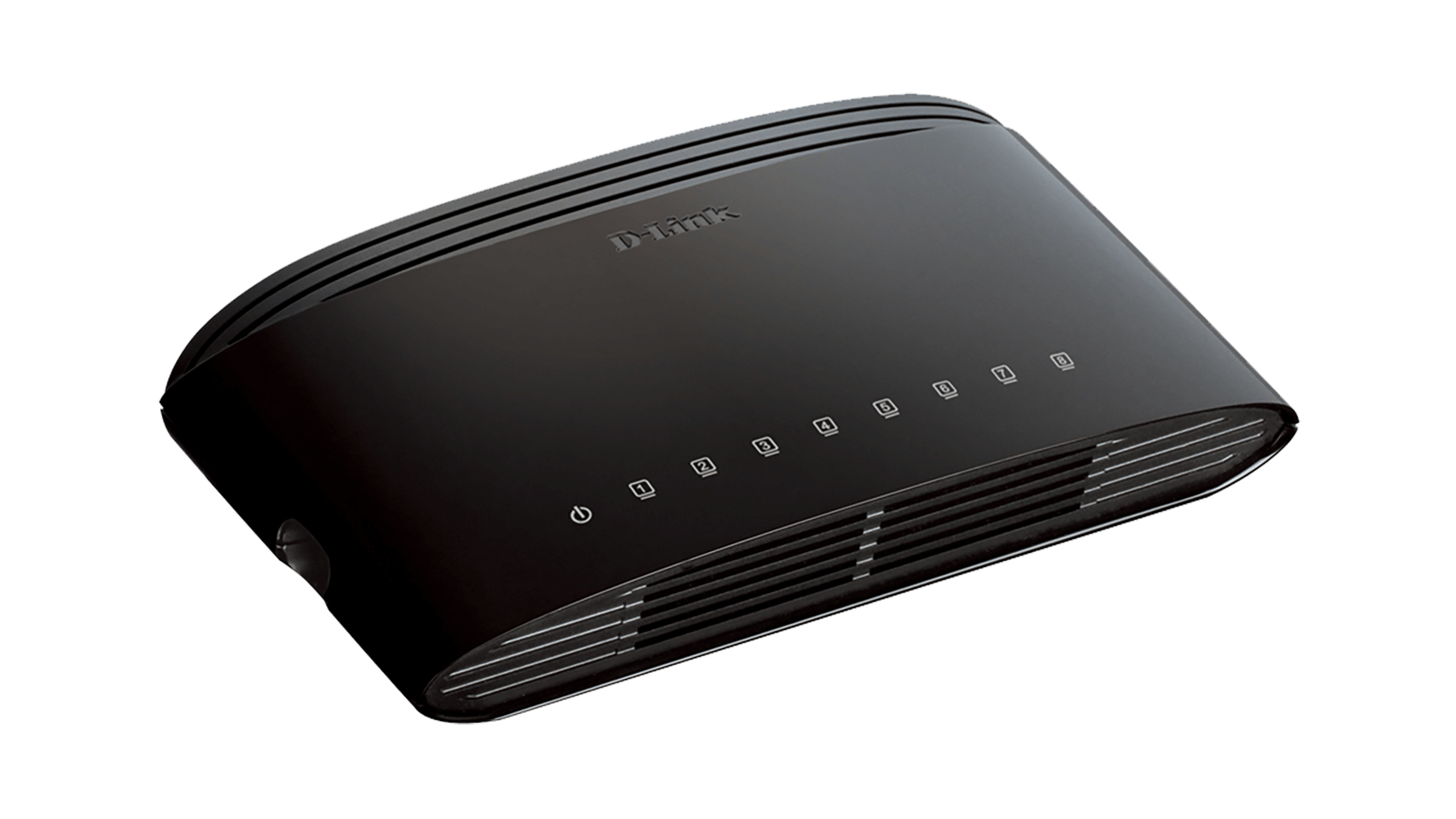

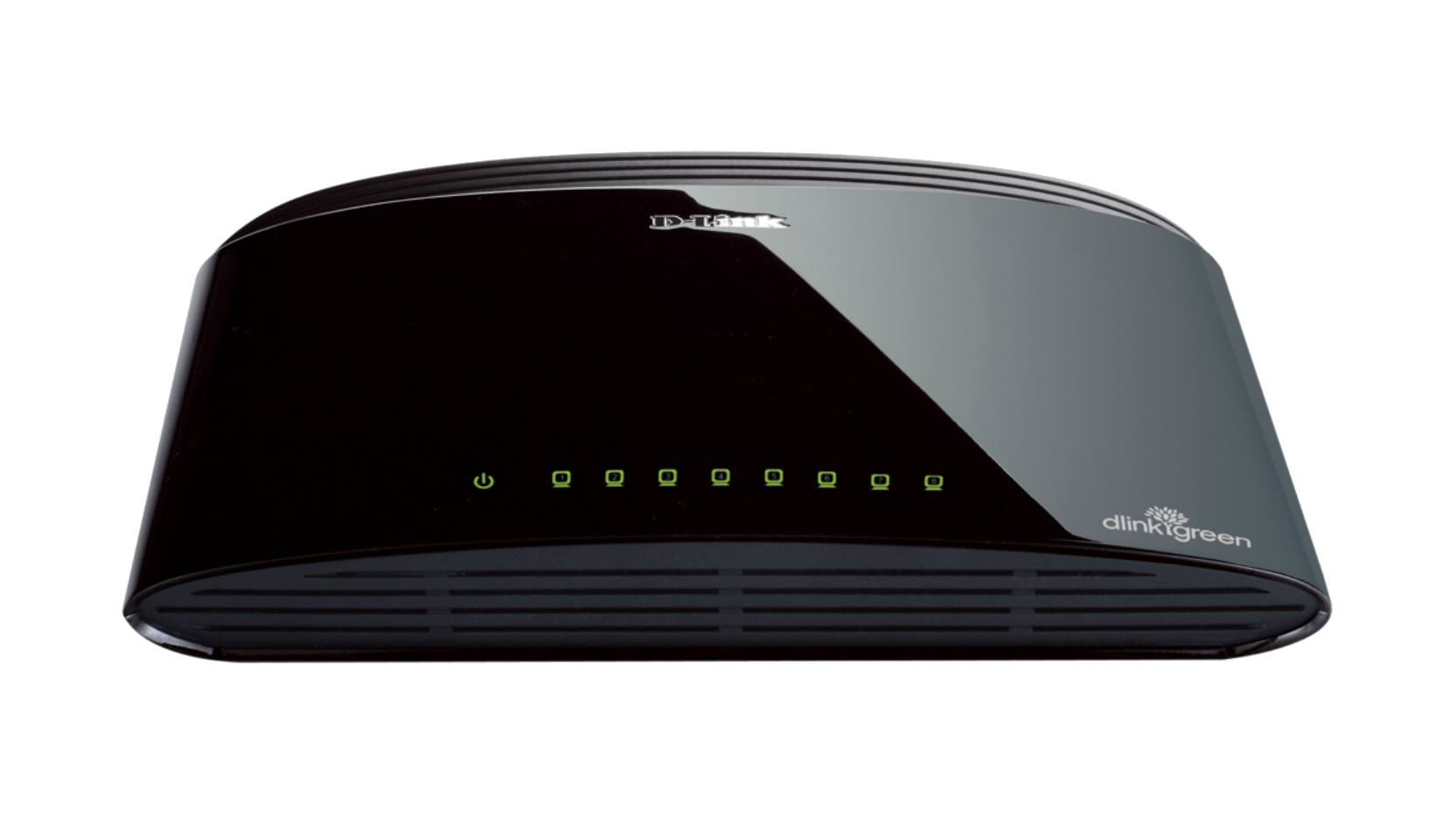

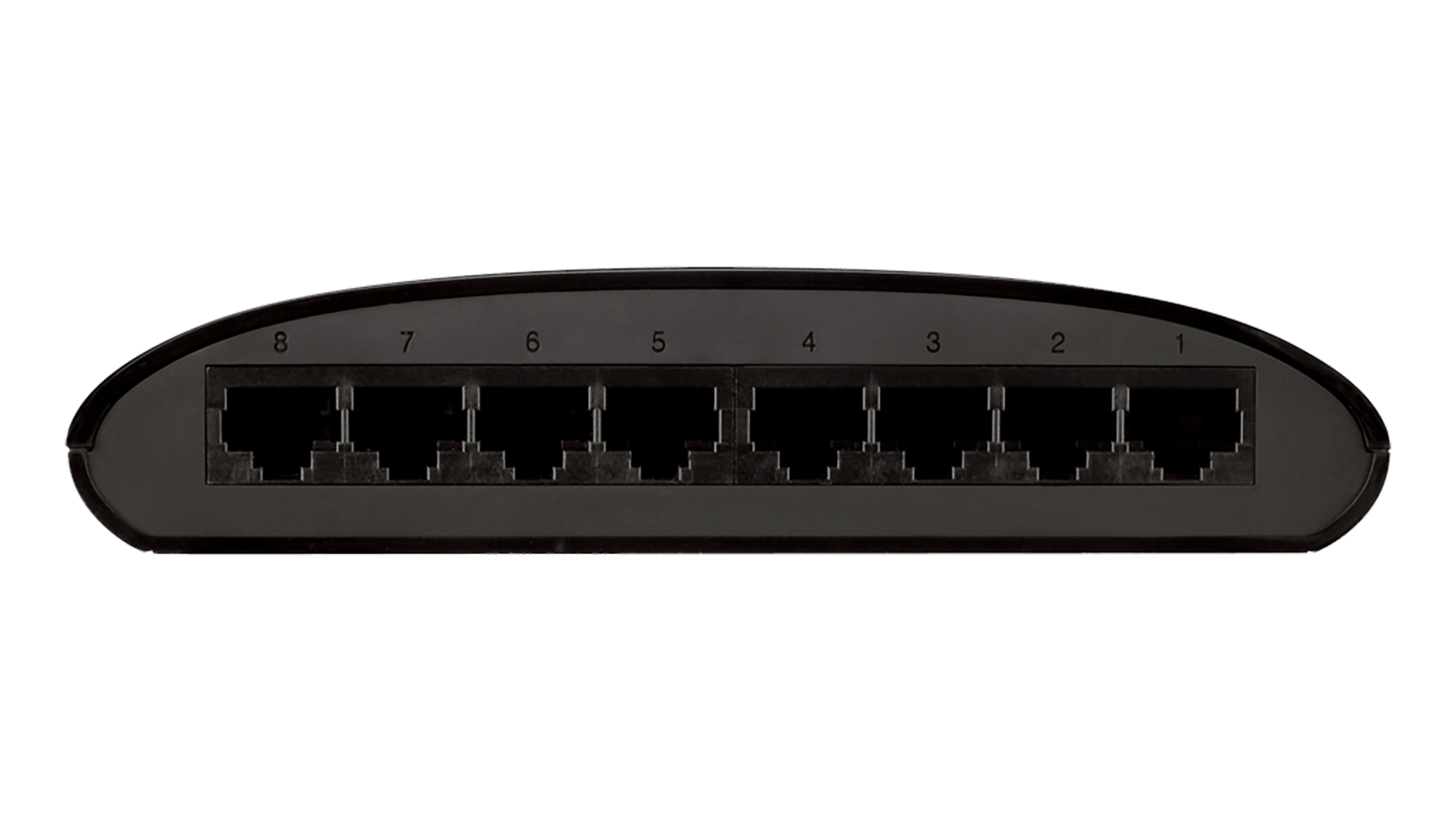

DES-1008D Unmanaged Fast Ethernet (10/100) Black
Model DES-1008DPart no. DES-1008D/AEAN 7900692177086
44 specifications
- Speed100 Mbit/s
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Networking standardsIEEE 802.3, IEEE 802.3x
- MAC address table1024 entries
Overview
- Speed
- 100 Mbit/s
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Networking standards
- IEEE 802.3, IEEE 802.3x
- MAC address table
- 1024 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1008D
- Part numbers
- DES-1008D/A, DES-1008D/E, DES-1008D/B, DES-1008D/FR
- EAN / UPC
- 7900692177086, 521081065776, 523182457016, 790069217159 +18 more
- Also known as
- D-Link DES-1008D Unmanaged Fast Ethernet (10/100) Black
Specifications
44 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Switching capacity | 1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Mean time between failures (MTBF) | 116186 h |
Power
| Specification | Value |
|---|---|
| Input current | 1 A |
| Output voltage | 5 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Packaging data
| Specification | Value |
|---|---|
| Package width | 104 mm |
| Package depth | 158 mm |
| Package height | 94 mm |
| Package weight | 310 g |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 50 pc(s) |
| Master (outer) cases per pallet (sea) | 50 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 330.5 kg |
| Pallet gross weight (sea) | 330.5 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 188.5 cm |
| Pallet height (sea) | 188.5 cm |
| Products per pallet (air) | 1000 pc(s) |
| Products per pallet (sea) | 1000 pc(s) |
| Products per shipping (inner) case | 20 pc(s) |
| Shipping (inner) case gross weight | 6.23 kg |
| Shipping (inner) case height | 35 cm |
| Shipping (inner) case length | 54.3 cm |
| Shipping (inner) case net weight | 3.96 kg |
| Shipping (inner) case width | 21.1 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
