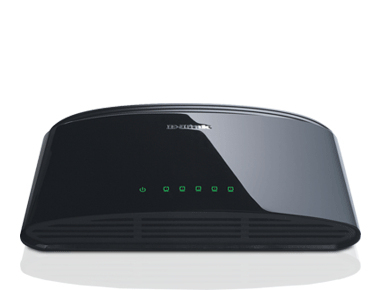

D-Link DES-1005E network switch Black
Model DES-1005EEAN 191120080918
34 specifications
- ConnectivityWired
- ColourBlack
- Quality of Service (QoS) supportYes
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Connectivity
- Wired
- Colour
- Black
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1005E
- Part number
- DES-1005E
- EAN / UPC
- 191120080918, 790069333071, 7900693330718
- Also known as
- D-Link DES-1005E network switch Black
Specifications
34 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Throughput | 148800 pps |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 856532 h |
Power
| Specification | Value |
|---|---|
| Input current | 1.2 A |
| Input voltage | 5 V |
| Power consumption (typical) | 3.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 200 Mbit/s |
| Dimensions (WxDxH) | 125.3 x 83.4 x 29.1 mm |
| Connectivity technology | Wired |
| Networking features | Fast Ethernet |
| Power LED | Yes |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 32 - 122 °F |
| Heat dissipation | 12.958 BTU/h |
Certificates
| Specification | Value |
|---|---|
| Certification | - FCC class B - ICES-003 class B - CE class B - C-Tick class B - VCCI class B - cUL - CB |
What people say
Reviews & ratings
D-Link DES-1005E network switch Black
No reviews yet
Be the first to tell others how D-Link DES-1005E network switch Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link DES-1005E network switch Black
All network switch comparisons- D-Link DES-1005E network switch Black vsD-Link DGS-3620-52T/EI network switch Managed L3 BlackCompare specs
- D-Link DES-1005E network switch Black vsD-Link DGS-3620-28SC/EI network switch Managed L3 BlackCompare specs
- D-Link DES-1005E network switch Black vsD-Link DES-1008E network switch BlackCompare specs
- D-Link DES-1005E network switch Black vsD-Link DHP-540 network switch BlackCompare specs
- D-Link DES-1005E network switch Black vsLG ES-4550G network switch Managed L3 BlackCompare specs
- D-Link DES-1005E network switch Black vsHP J9538A + 4x J9150ACompare specs

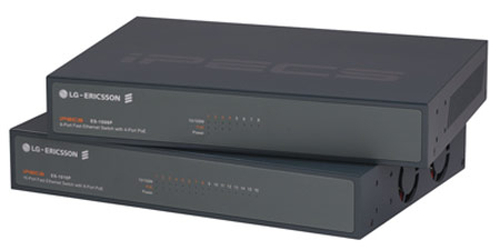

- D-Link DES-1005E network switch Black vsLG iPECS ES-1008PCompare specs
