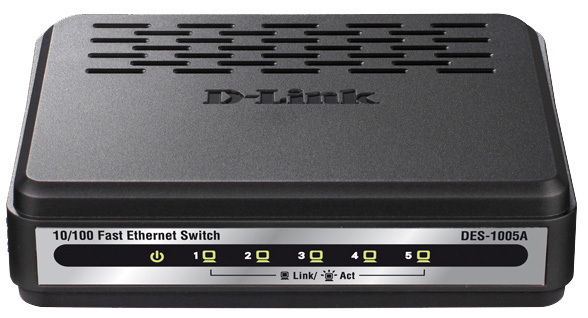

D-Link DES-1005A network switch Black
Model DES-1005APart no. DES-1005A/E1EAN 790069406973
31 specifications
- Speed100 Gbit/s
- ConnectivityWired
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Speed
- 100 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- D-Link
- Category
- Network Switch
- Model
- DES-1005A
- Part numbers
- DES-1005A/E1, DES-1005A
- EAN / UPC
- 790069406973, 790069330766, 790069330780, 790069365393 +2 more
- Also known as
- D-Link DES-1005A network switch Black
Specifications
31 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 100 Gbit/s |
| Packet buffer memory | 0.01 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Link, Power |
Power
| Specification | Value |
|---|---|
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 3.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 200 Mbit/s |
| Dimensions (WxDxH) | 97 x 79 x 28 mm |
| Connectivity technology | Wired |
| Networking features | Fast Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 11.594 BTU/h |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, ICES, CE, cUL, CB, RoHS |
