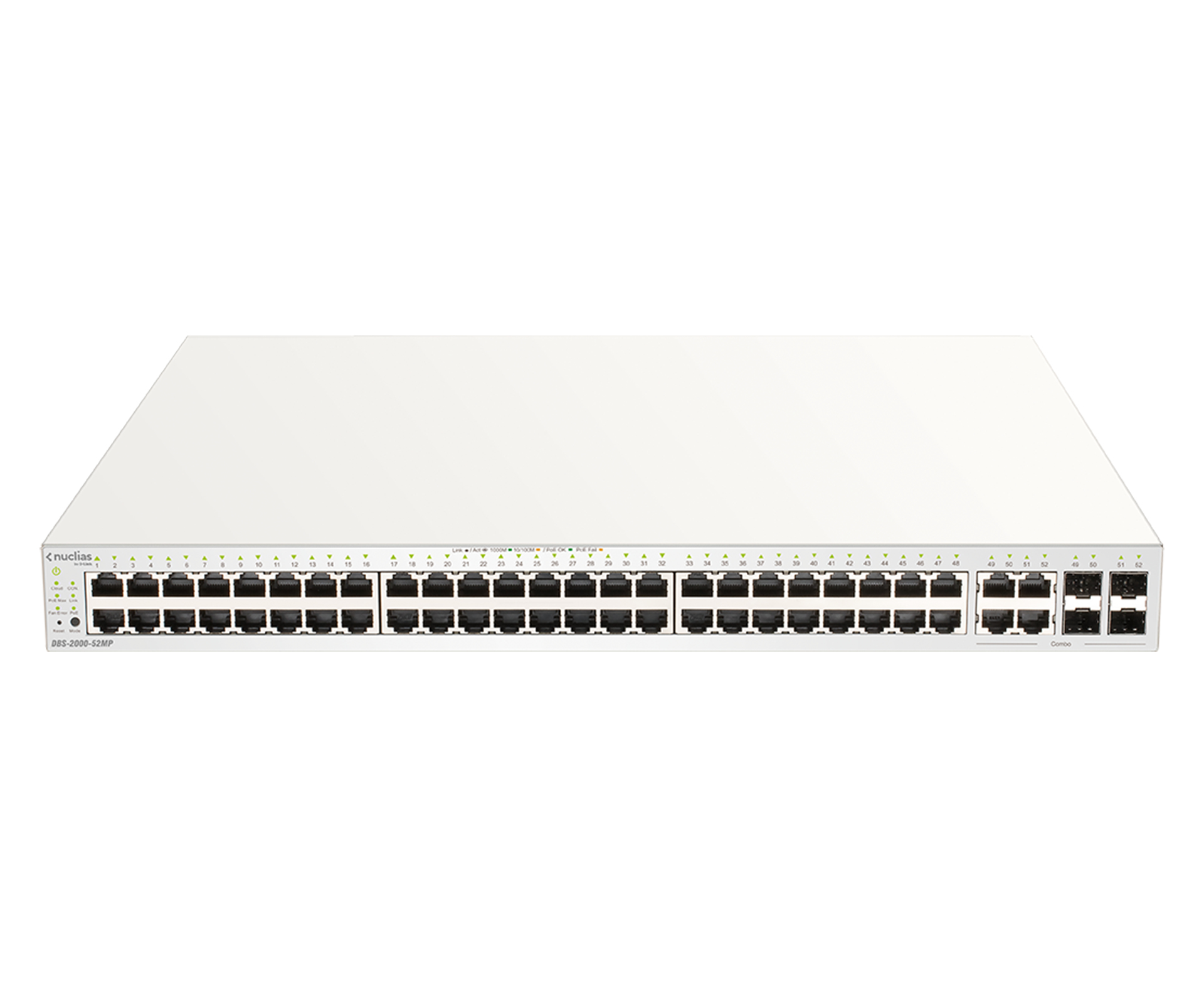

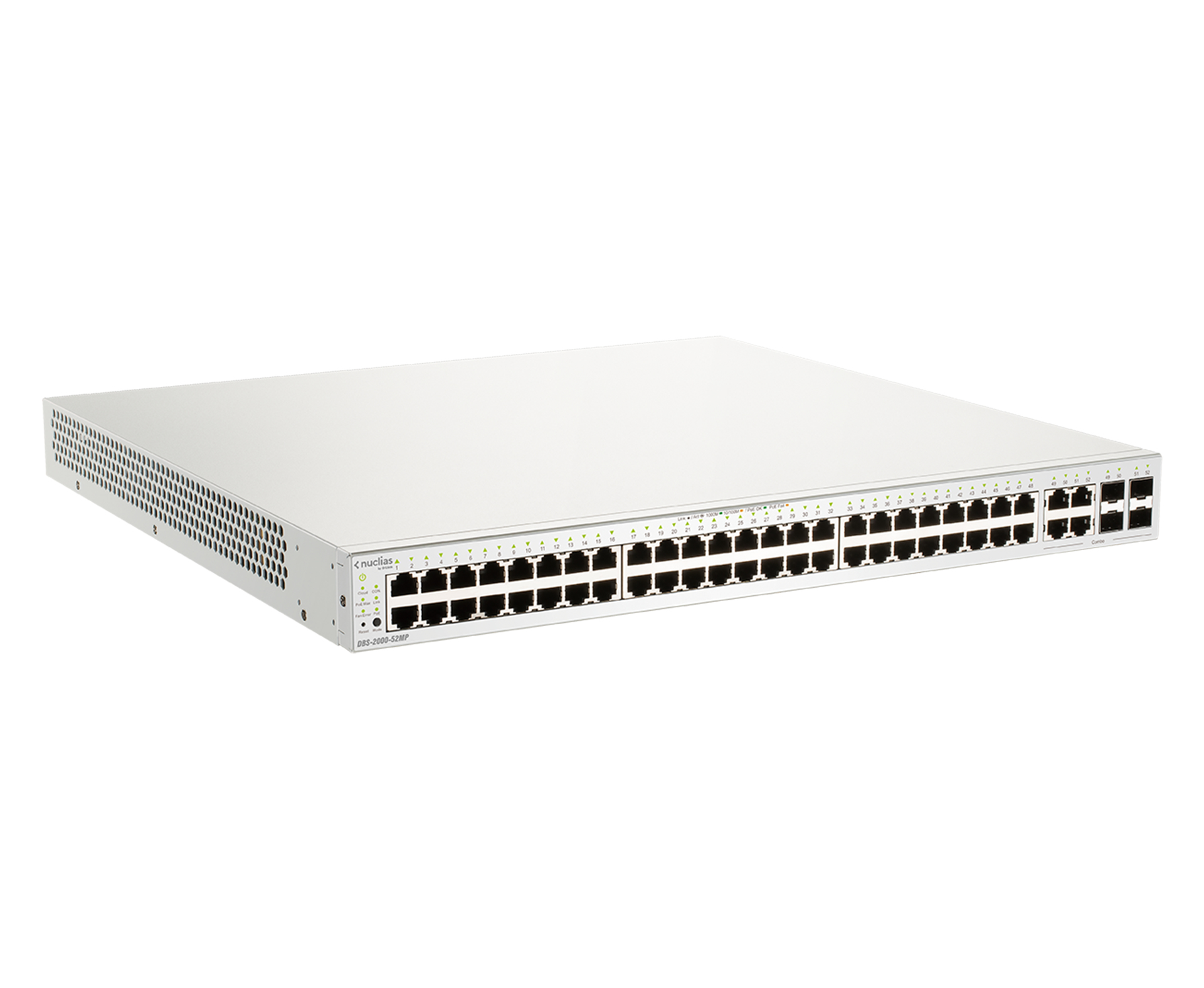

52-Port Gigabit PoE+ Nuclias Smart Managed Switch including
4x 1G Combo Ports, 370W
Model DBS-2000-52MPEAN 790069442988
65 specifications
- Memory256 MB
- Weight6.26 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Networking standardsIEEE 802.3ad, IEEE 802.3at
Overview
- Memory
- 256 MB
- Weight
- 6.26 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Networking standards
- IEEE 802.3ad, IEEE 802.3at
- Brand
- D-Link
- Category
- Network Switch
- Model
- DBS-2000-52MP
- Part number
- DBS-2000-52MP
- EAN / UPC
- 790069442988
- Also known as
- D-Link 52-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 370W
Specifications
65 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ad, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Security algorithms | WPA, WPA2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 700 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 236406 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 478.9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 1634.01 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 430 mm |
| Height | 44 mm |
| Weight | 6.26 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 558 mm |
| Package depth | 568 mm |
| Package height | 149 mm |
| Package weight | 8.66 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Master (outer) cases per pallet (sea) | 18 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 242.7 kg |
| Pallet gross weight (sea) | 354.8 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 133.1 cm |
| Pallet height (sea) | 192.9 cm |
| Products per pallet (air) | 24 pc(s) |
| Products per pallet (sea) | 36 pc(s) |
| Products per shipping (inner) case | 2 pc(s) |
| Shipping (inner) case gross weight | 18.6 kg |
| Shipping (inner) case height | 59.8 cm |
| Shipping (inner) case length | 57.4 cm |
| Shipping (inner) case net weight | 17.3 kg |
| Shipping (inner) case width | 31.5 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
