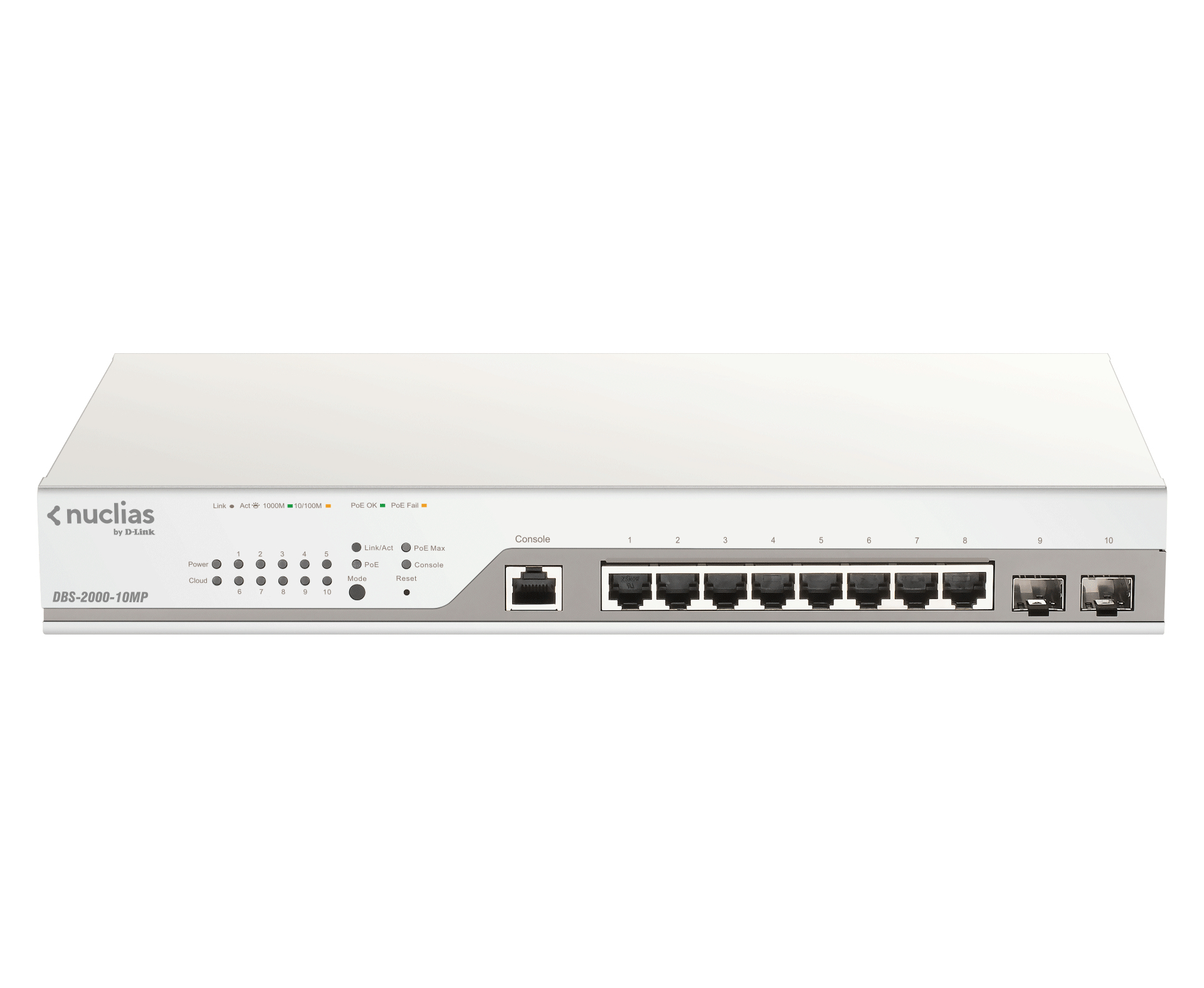

DBS-2000-10MP/E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model DBS-2000-10MP/EEAN 790069471186
69 specifications
- Memory256 MB
- Weight1.77 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Networking standardsIEEE 802.3ad, IEEE 802.3at
Overview
- Memory
- 256 MB
- Weight
- 1.77 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Networking standards
- IEEE 802.3ad, IEEE 802.3at
- Brand
- D-Link
- Category
- Network Switch
- Model
- DBS-2000-10MP/E
- Part number
- DBS-2000-10MP/E
- EAN / UPC
- 790069471186
- Also known as
- D-Link DBS-2000-10MP/E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
69 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ad, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Security algorithms | WPA3, WPA, WPA2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 500 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 1274005 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 152.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 130 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1500 m |
| Heat dissipation | 519.51 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.77 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 319 mm |
| Package depth | 400 mm |
| Package height | 91 mm |
| Package weight | 3.39 kg |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Master (outer) cases per pallet (sea) | 40 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 282.5 kg |
| Pallet gross weight (sea) | 458.4 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 118.2 cm |
| Pallet height (sea) | 188 cm |
| Products per pallet (air) | 72 pc(s) |
| Products per pallet (sea) | 120 pc(s) |
| Products per shipping (inner) case | 3 pc(s) |
| Shipping (inner) case gross weight | 11 kg |
| Shipping (inner) case height | 34.9 cm |
| Shipping (inner) case length | 41.6 cm |
| Shipping (inner) case net weight | 10.2 kg |
| Shipping (inner) case width | 29.4 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
