D-Link 8-port Gigabit Switch
Model 8-port Gigabit SwitchPart no. DGS-1008D/AEAN 790069252723
38 specifications
- Speed1 Gbit/s
- ConnectivityWired
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- 8-port Gigabit Switch
- Part number
- DGS-1008D/A
- EAN / UPC
- 790069252723
- Also known as
- D-Link 8-port Gigabit Switch Unmanaged White
Specifications
38 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.192 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | White |
| LED indicators | Link, Power |
| Safety | cUL, LVD |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 1150498 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 5.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 1.488 Mpps |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 164.5 mm |
| Depth | 112.4 mm |
| Height | 35 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, C-Tick, VCCI |
What people say
Reviews & ratings
D-Link 8-port Gigabit Switch
No reviews yet
Be the first to tell others how D-Link 8-port Gigabit Switch works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link 8-port Gigabit Switch
All network switch comparisons- D-Link 8-port Gigabit Switch vsD-Link 52-Port Gigabit Smart Managed Switch includingCompare specs
- D-Link 8-port Gigabit Switch vsD-Link 20-Port Gigabit Smart Managed Switch including 4 SFP portsCompare specs
- D-Link 8-port Gigabit Switch vsD-Link 8-Port 10/100 SwitchCompare specs
- D-Link 8-port Gigabit Switch vsD-Link DGS-1100-08 network switch Managed L2 Gigabit Ethernet (10/100/1000) BlackCompare specs

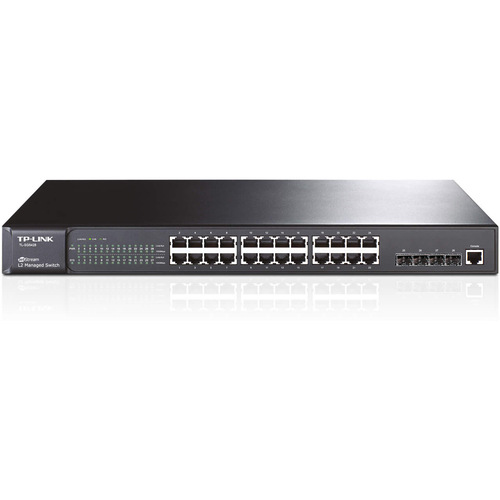

- D-Link 8-port Gigabit Switch vsTP-Link TL-SG5428 network switch Managed L2 1U BlackCompare specs
