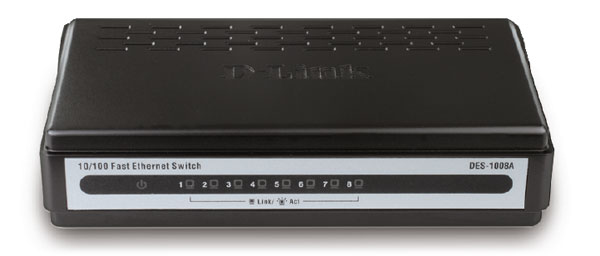

D-Link 8-Port 10/100 Switch
Model 8-Port 10/100 SwitchPart no. DES-1008A/AEAN 790069217692
38 specifications
- Speed0.2 Gbit/s
- ConnectivityWired
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Speed
- 0.2 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- 8-Port 10/100 Switch
- Part number
- DES-1008A/A
- EAN / UPC
- 790069217692
- Also known as
- D-Link 8-Port 10/100 Switch Unmanaged Black
Specifications
38 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.2 Gbit/s |
| Packet buffer memory | 0.057 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Link, Power |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 1516996 h |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Input current | 1 A |
| Power consumption (typical) | 2.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Networking features | Fast Ethernet |
| Packet transfer speed | 148800 pps |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 128 mm |
| Depth | 68.5 mm |
| Height | 25.4 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, C-Tick, VCCI |
