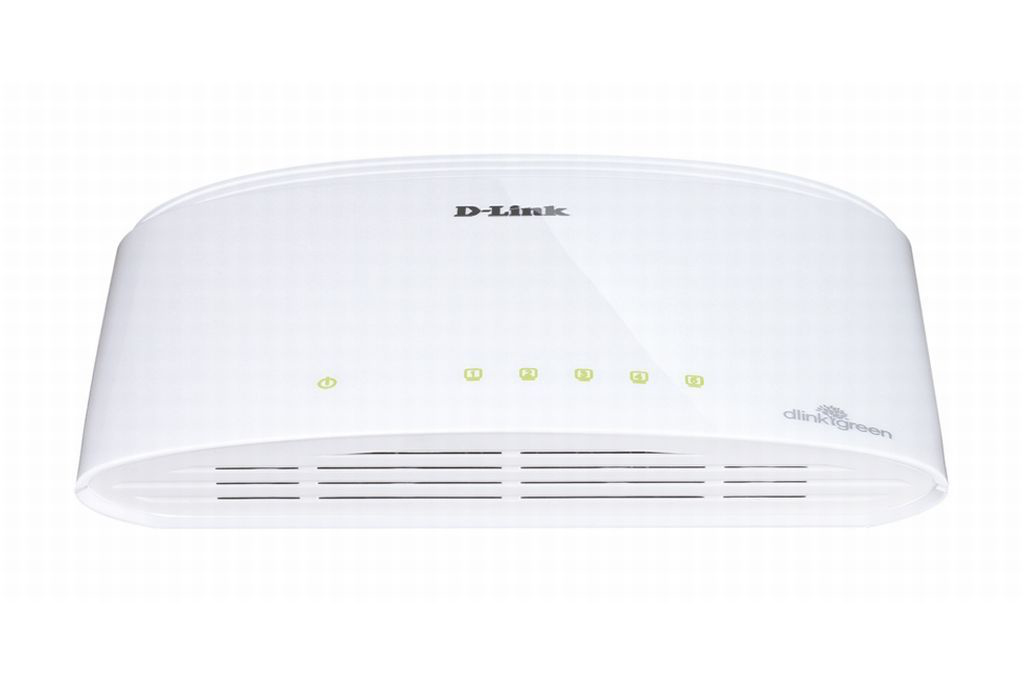

D-Link 5-Ports Desktop Switch
Model 5-Ports Desktop SwitchPart no. DGS-1005D/A
37 specifications
- Speed1 Gbit/s
- ConnectivityWired
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- Brand
- D-Link
- Category
- Network Switch
- Model
- 5-Ports Desktop Switch
- Part number
- DGS-1005D/A
- Also known as
- D-Link 5-Ports Desktop Switch Unmanaged White
Specifications
37 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100/1000 Mbit |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.128 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | White |
| LED indicators | Link, Power |
| Safety | cUL, LVD |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 861516 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 9 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 1.488 Mpps |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 144.2 mm |
| Depth | 100.2 mm |
| Height | 32.6 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, ICES-003, CE, C-Tick, VCCI |
What people say
Reviews & ratings
D-Link 5-Ports Desktop Switch
No reviews yet
Be the first to tell others how D-Link 5-Ports Desktop Switch works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare D-Link 5-Ports Desktop Switch
All network switch comparisons- D-Link 5-Ports Desktop Switch vsD-Link 48-port Gigabit Smart SwitchCompare specs
- D-Link 5-Ports Desktop Switch vsD-Link GO-SW-5G Unmanaged L2 Gigabit Ethernet (10/100/1000) WhiteCompare specs
- D-Link 5-Ports Desktop Switch vsD-Link 28-Port Gigabit PoE Smart Managed Switch including 4 Combo PortsCompare specs
- D-Link 5-Ports Desktop Switch vsD-Link 24-port Gigabit Smart SwitchCompare specs
- D-Link 5-Ports Desktop Switch vsZyxel VES1724-56 Managed Gigabit Ethernet (10/100/1000) 1U BlackCompare specs
- D-Link 5-Ports Desktop Switch vsAllied Telesis AT-9000/28SP-E-50 network switch Managed L2 Gigabit Ethernet (10/100/1000) GreyCompare specs

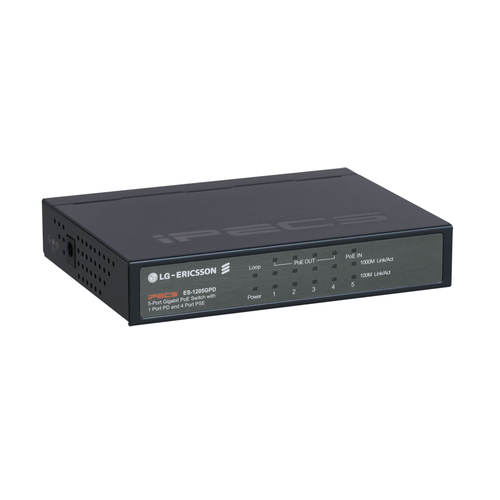

- D-Link 5-Ports Desktop Switch vsLG ES-1205GPD network switch Unmanaged Power over Ethernet (PoE) BlackCompare specs

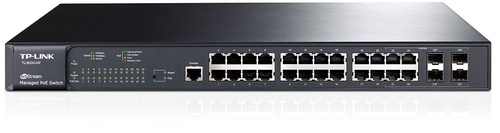

- D-Link 5-Ports Desktop Switch vsTP-Link JetStream 24-Port Gigabit L2 Managed PoE+ Switch with 4 Combo SFP SlotsCompare specs
