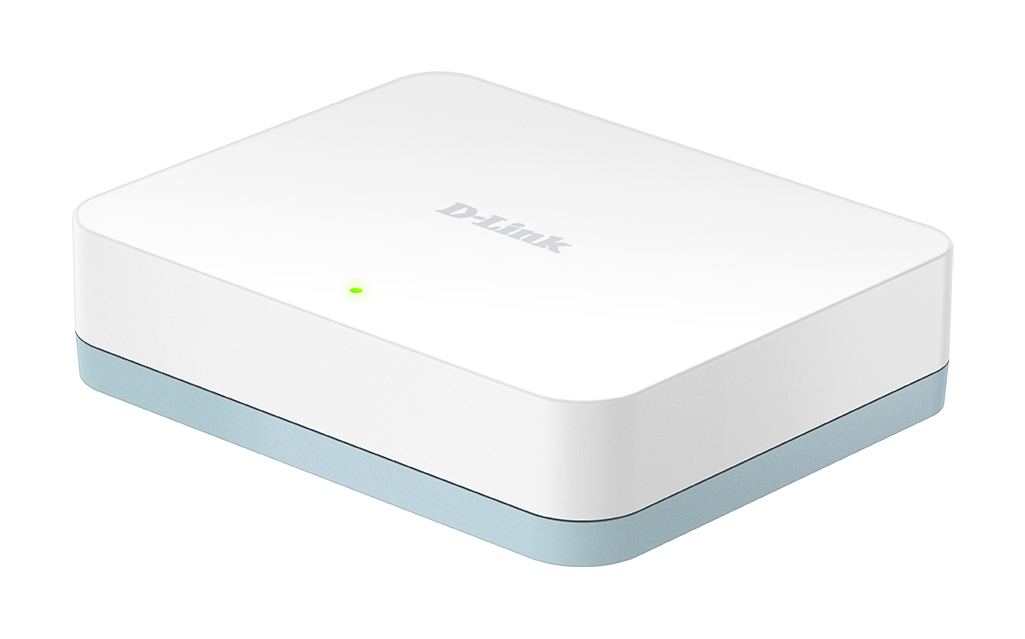

5-Port 10/100/1000 Desktop Switch
Model 5-Port 10/100/1000 Desktop SwitchPart no. DGS-1005D/BEAN 790069252679
59 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight80 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 80 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Brand
- D-Link
- Category
- Network Switch
- Model
- 5-Port 10/100/1000 Desktop Switch
- Part numbers
- DGS-1005D/B, DGS-1005D/FR
- EAN / UPC
- 790069252679, 7900692526884
- Also known as
- D-Link 5-Port Gigabit Unmanaged Desktop Switch
Specifications
59 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | No |
| Web-based management | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3 |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 10 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.112 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | No |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | Power |
| Safety | CSA |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Power consumption (typical) | 4.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 142 x 107 x 30 mm |
| Connectivity technology | Wired |
| Electromagnetic emissions | CE Mark, FCC Class B |
| I/O ports | 5x 10/100/1000BASE-T |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 80 g |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | No |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 116 mm |
| Package height | 82 mm |
| Package weight | 222 g |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 80 pc(s) |
| Master (outer) cases per pallet (sea) | 80 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 411.6 kg |
| Pallet gross weight (sea) | 411.6 kg |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.02 m |
| Pallet height (sea) | 2.02 m |
| Products per pallet (air) | 1600 pc(s) |
| Products per pallet (sea) | 1600 pc(s) |
| Products per shipping (inner) case | 20 pc(s) |
| Shipping (inner) case gross weight | 4.91 kg |
| Shipping (inner) case height | 23.5 cm |
| Shipping (inner) case length | 43.2 cm |
| Shipping (inner) case net weight | 3.28 kg |
| Shipping (inner) case width | 25.3 cm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
